CASTLE EP User Manual

© AGRGS 2016 | Data subject to change without notice
67385867493098462 | en, eu, V5, 07. Oct 2016, page 85
Toggle N
1
2
3
4
5
6
7
8
Toggle position
OFF
ON
OFF
ON
OFF
OFF
ON
OFF
Table 52 . Settings of CONF1 dip-unit toggles for operating with ARGO

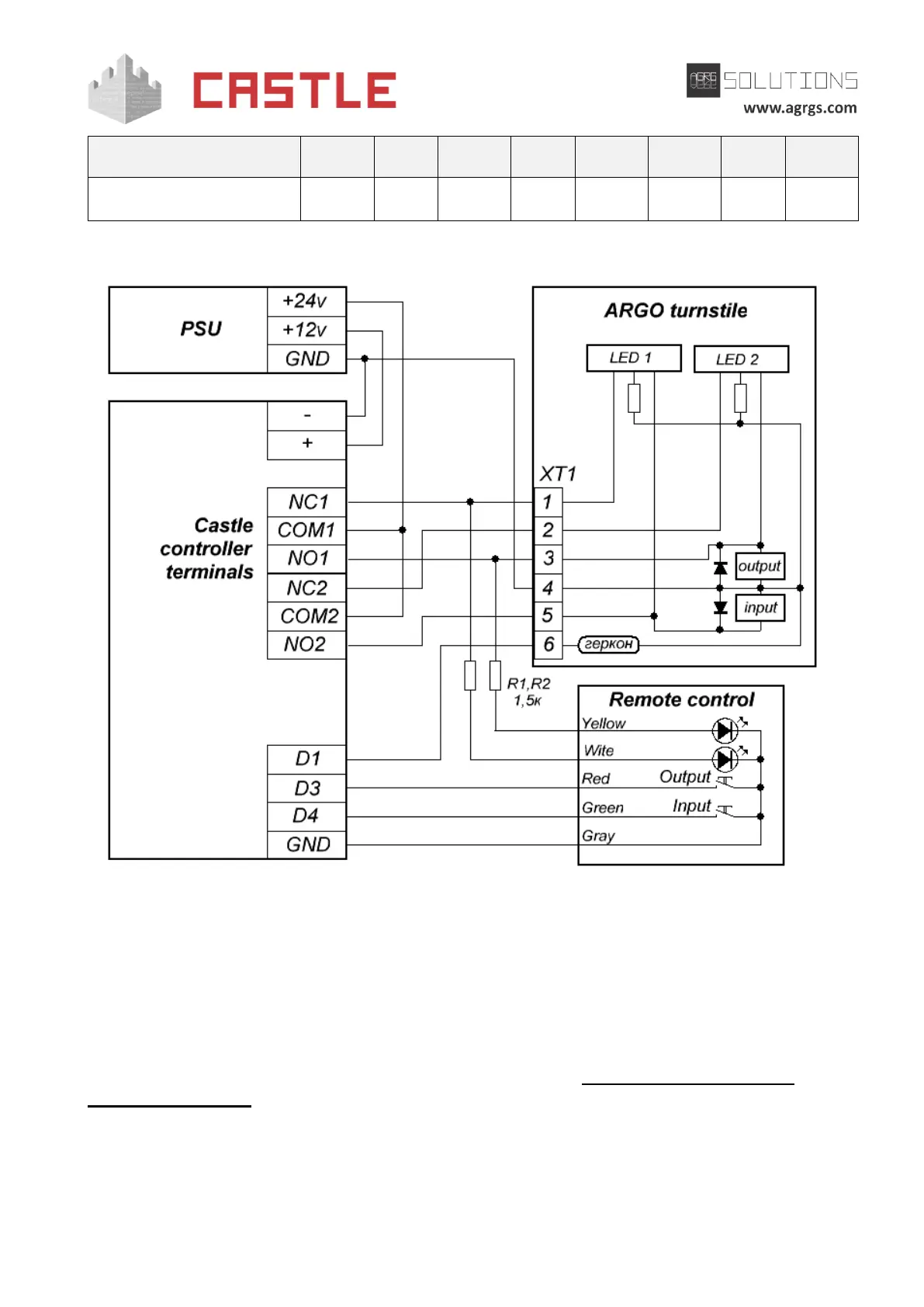

Pic 79. Connecting ARGO turnstile
9.16 Connecting Fastlane Intelligate Passgate
In this section, you can find a wiring diagram for connecting Fastlane Intelligate Passgate.
9.16.1 Connecting readers for Fastlane Intelligate Passgate
Readers are connected to controller terminals according to Sec. 6.3 Connecting readers and
contactors. Overview.
