● Other parameter values are not fundamental and may be left at their default values.
● After setting up, click OK. All the parameter values will be applied automatically.
10.8.4 Connecting FAAC 740 and 741 gate drives
To connect to the control panel of FAAC 740 and 741 gate drives, you need to switch the controller
to the third-party gate controller handling mode according to the logic defined in the Control
Program.
Table 71. Settings of CONF1 dip-unit toggles for operating with FAAC 740 and 741
The toggle selects the normal state of the control STOP button. ON normally closed,
OFF normally open. For the wiring diagram of the control panel, refer to Sec. 10.5 Connecting the
gate control panel.
The toggle selects the configuration of vehicle presence sensors. ON only one (the central) is
connected, OFF all three are connected (at the entrance, in the center and at the exit). For the
wiring diagram of vehicle presence sensors, refer to Sec. 10.6 Connecting vehicle presence sensors.
FAAC 740 and 741
the operator).
The rest of the settings are not fundamental for the ACS operation, and they should be
programmed according to the original instruction for FAAC 740 and 741 control unit.

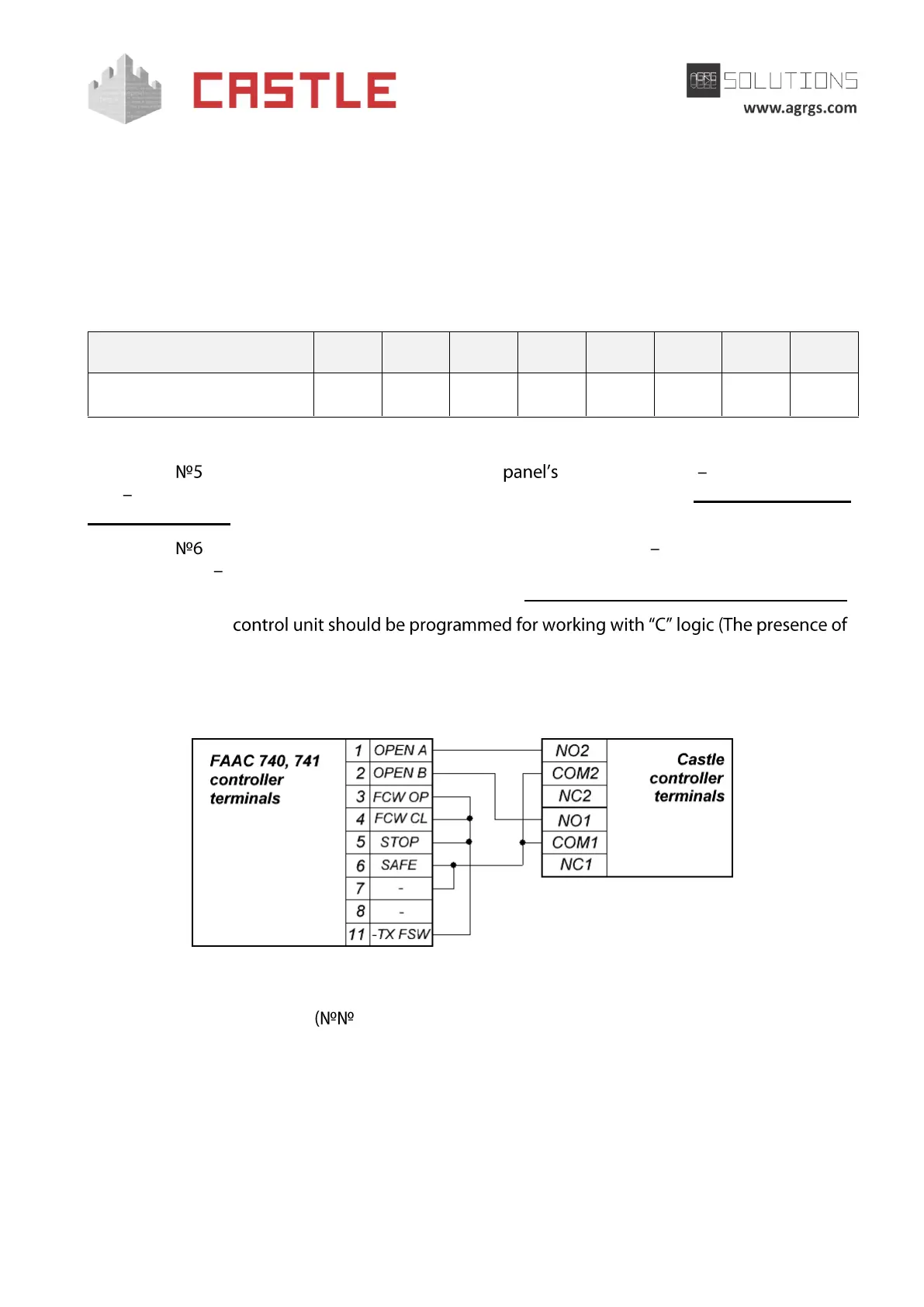

Pic 96. Connecting FAAC 740 and 741 gate control unit
The rest of the unit terminals 8-10, 12) are connected according to the original instruction for
FAAC 740 and 741 gate control unit. E.g. the power (24V) for vehicle presence sensors is connected
to terminals 8 and 9.
