CASTLE EP User Manual

© AGRGS 2016 | Data subject to change without notice
67385867493098462 | en, eu, V5, 07. Oct 2016, page 62
Toggle N
1
2
3
4
5
6
7
8
Toggle position
OFF
ON
OFF
OFF
OFF
OFF
ON
OFF
Table 28. Settings of CONF1 dip-unit toggles for operating with PERCo-RTD-03S turnstile

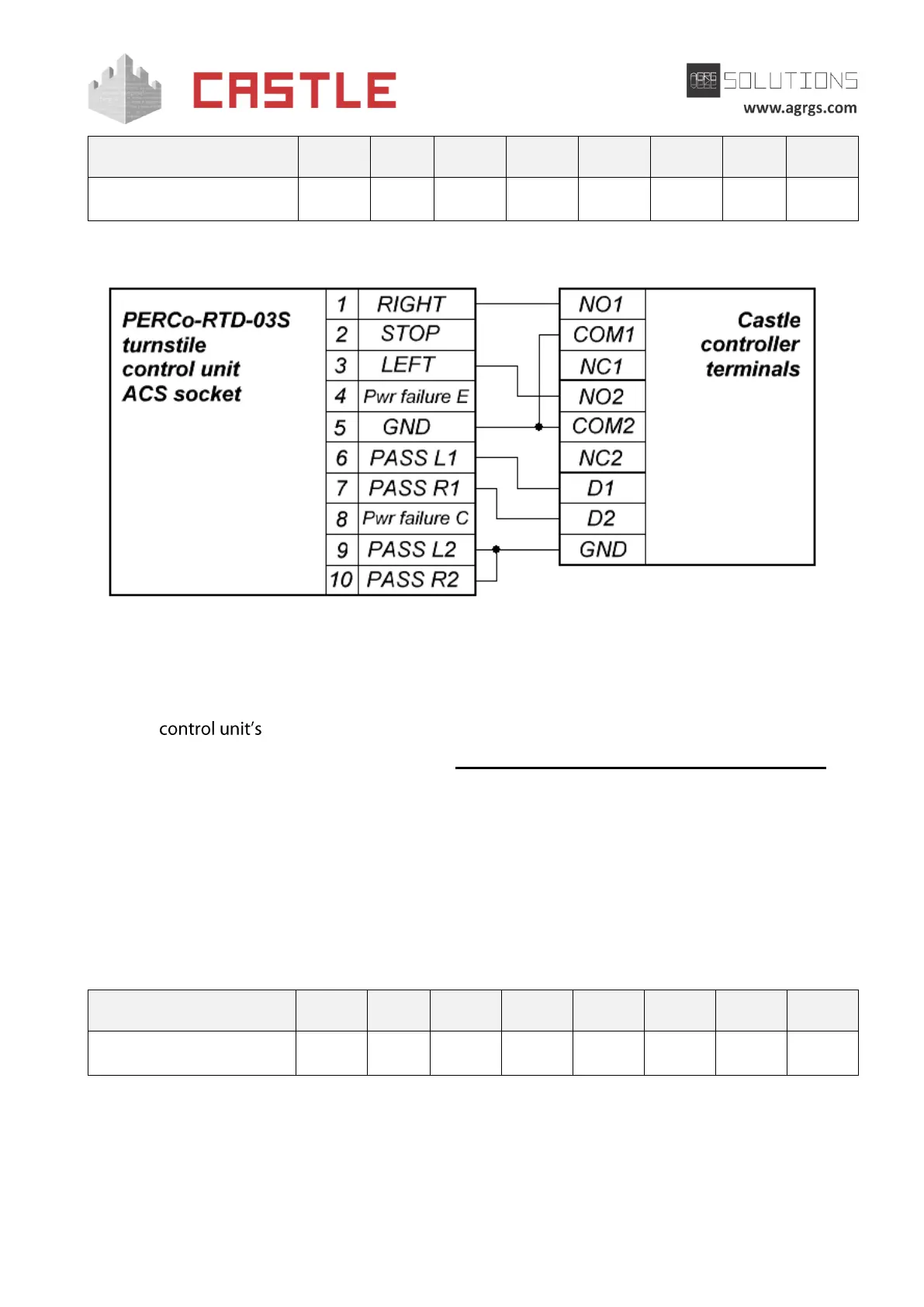

Pic 40. Connecting PERCo RTD-03S turnstile
Notes:
● When connecting PERCo RTD-03S turnstile, remove the jumper from X5 socket of the
board to switch it to the potential control mode.
● To connect the control panel, see Sec. 9.6.11 Connecting PERCo turnstile control panel.
9.6.4 Connecting PERCo RTD-15 turnstile
For operating with PERCo RTD-15 turnstile, the controller should be switched to the potential
control mode for controlling the turnstile and for working with normally closed passage sensors
according to Simplified scheme.
In the Control Program, go to the controller settings and enable the additional option (on Doors
tab, select the access point, click Settings, uncheck Show only basic settings box, check Activate
Perco turnstile specific workaround, and click OK).
Toggle N
1
2
3
4
5
6
7
8
Toggle position
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
Table 29. Settings of CONF1 dip-unit toggles for operating with PERCo RTD-15 turnstile
