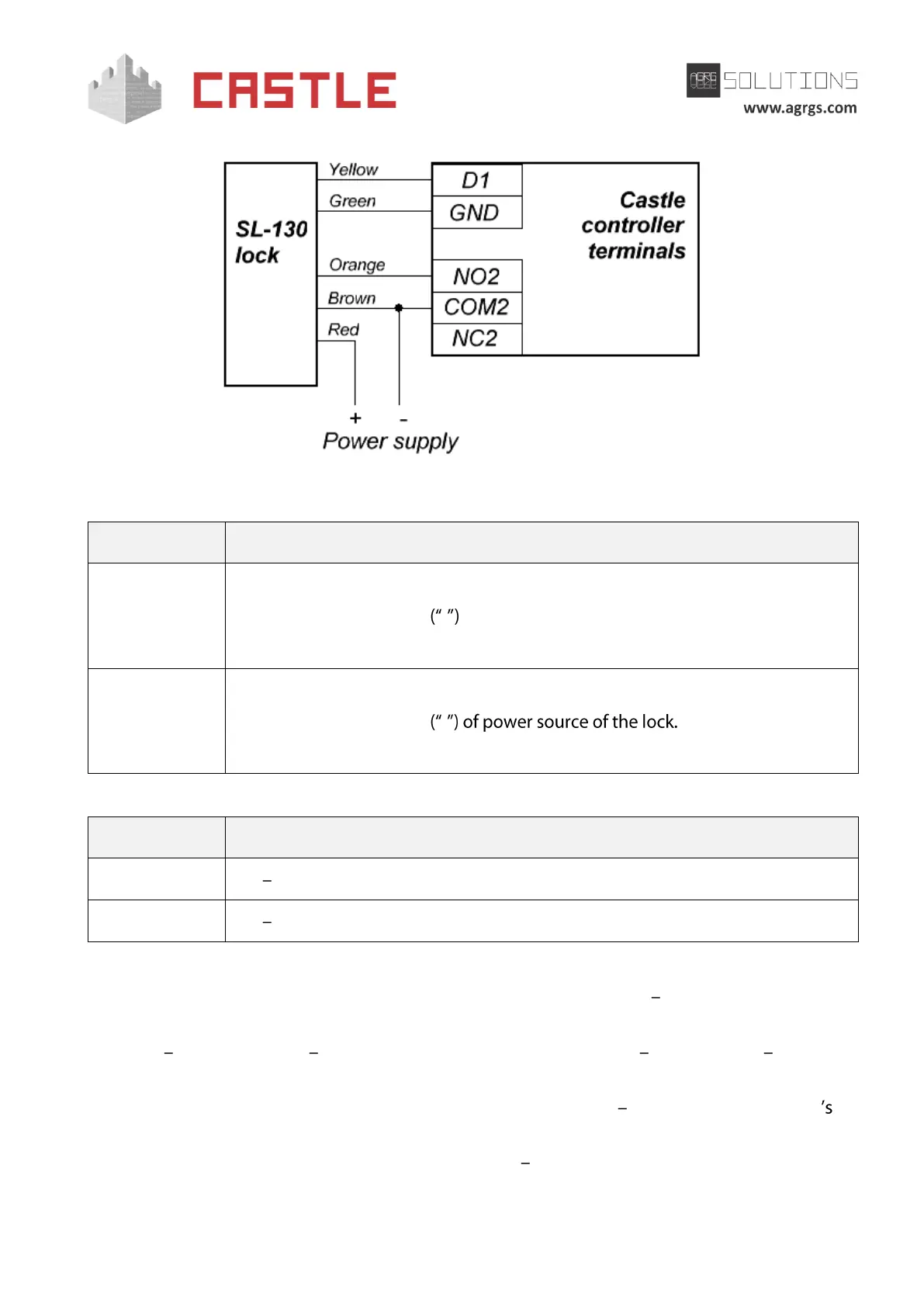

Pic 23. Example of connecting SL-130 lock for the first door
Terminal
Use
COM2-NO2
The first door
COM2: The negative side - of power source of the lock.
NO2: The lock control input.
COM4-NO4
The second door
COM4: The negative side -
NO4: The lock control input.
Table 17. Using controller terminals for connecting SL-130 locks
Toggle
Use
5
ON using SL-130 lock for the first door.
6
ON using SL-130 lock for the second door.
Table 18. Setting CONF1 toggles for working with SL-130 locks
The passage waiting time is set by the toggle on the lock (e.g., 3 seconds OFF, ON).
Before enabling the access point, you need to make its mandatory settings. To do this, run Control
Program select Doors tab select the desired controller from the list click Settings uncheck
Show only basic settings. Then make the following settings:
● Max waiting time before autolocking an unlocked door set according to the lock
settings (3, 5, or 9 seconds).
● Lock control impulse length (pulse duration) set in the range of 0.5 to 0.8 seconds.
● After all settings done, click OK. All settings will be applied automatically.
