The toggle selects the configuration of vehicle presence sensors. ON only one (the central) is
connected, OFF all three are connected (at the entrance, in the center and at the exit). For the
wiring diagram of vehicle presence sensors, refer to Sec. 10.6 Connecting vehicle presence sensors.

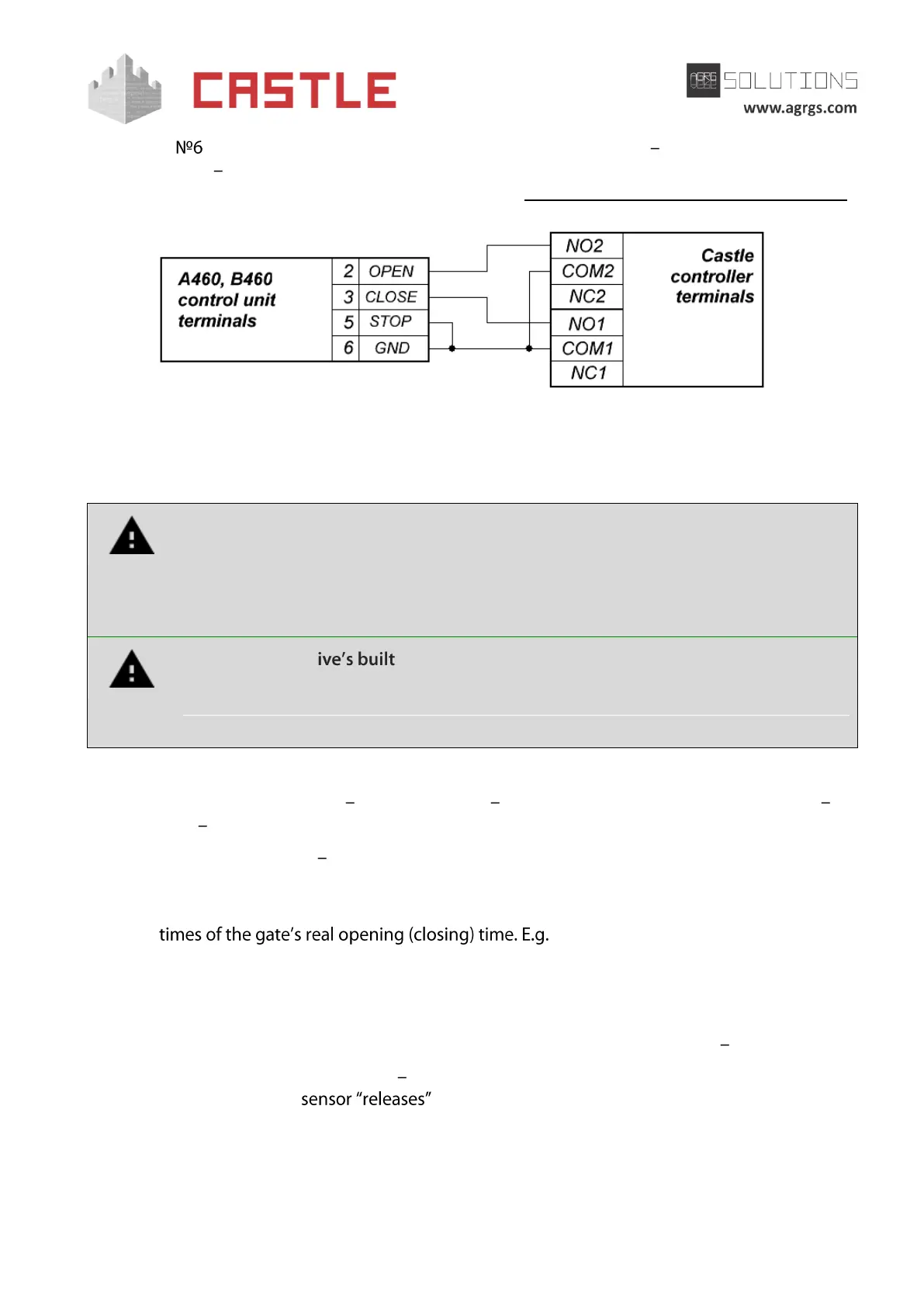

Pic 119. Connecting Hormann A460 and B460 control units
The rest of the unit terminals (mains, electric motor, limit switches) are connected according to the
original instruction for A460 or B460 control unit.
All vehicle presence sensors, as well as manual control panel, should be connected
exclusively to the controller, and not to the barrier drive or to both of them.
Violation of this requirement may lead to different conflicts ranging from passage
registration failure to "freezing" the barrier beam in the intermediate states to
eventual damage of a passing vehicle.
The use of the dr -in radio receiver is forbidden. Command submission
bypassing the ACS controller will sooner or later lead to a damage of a passing
vehicle. For controlling the drive via remote keys, you should use Wiegand
interface radio receivers connected to the ACS controller.
Before enabling the access, you need to make its mandatory settings.
To do this, run Control Program select Doors tab select the desired controller from the list
click Settings uncheck Show only basic settings. Then make the following settings:
● Gate control mode select Straight drive direction (Direct drive control) from the drop-
down menu.
● Set Time to open/close gate sections in direct gate control mode equal to about 1.1
, if the gate opens fully within 10
seconds, then the parameter value must be equal to 11 seconds.
● Max waiting time before autoclosing an opened gate is the waiting time for a vehicle
to start passing the barrier after the drive is fully open. Set as desired.
● Delay between sector motors activation in direct gate control mode 0.00 second.
● Gate sensor activation delay set within 0.5-2.0 seconds. This parameter is used to
ignore short-term when detecting passing vehicles with a trailer or other
parts that are transparent to the sensor.
● Other parameter values are not fundamental and may be left at their default values.
● After setting up, click OK. All the parameter values will be applied automatically.
