The toggle selects the normal state of the control STOP button. ON normally closed,
OFF normally open. For the wiring diagram of the control panel, refer to Sec. 10.5 Connecting the
gate control panel.
The toggle selects the configuration of vehicle presence sensors. ON only one (the central) is
connected, OFF all three are connected (at the entrance, in the center and at the exit). For the
wiring diagram of vehicle presence sensors, refer to Sec. 10.6 Connecting vehicle presence sensors.
The function selection micro toggle switch on the ZL37 or ZL38 control unit board should be set in
the position described in the following table.
Table 81. Setting the micro toggle switch for selecting functions on the ZL37 and ZL38 control unit board
«X» sign in the "Toggle position" means that this switch performs the function that does not affect
the ACS operation, and it must be put in the required position according to the original instruction
for ZL37 and ZL38 control units.
- - ZL37 or ZL38 control unit

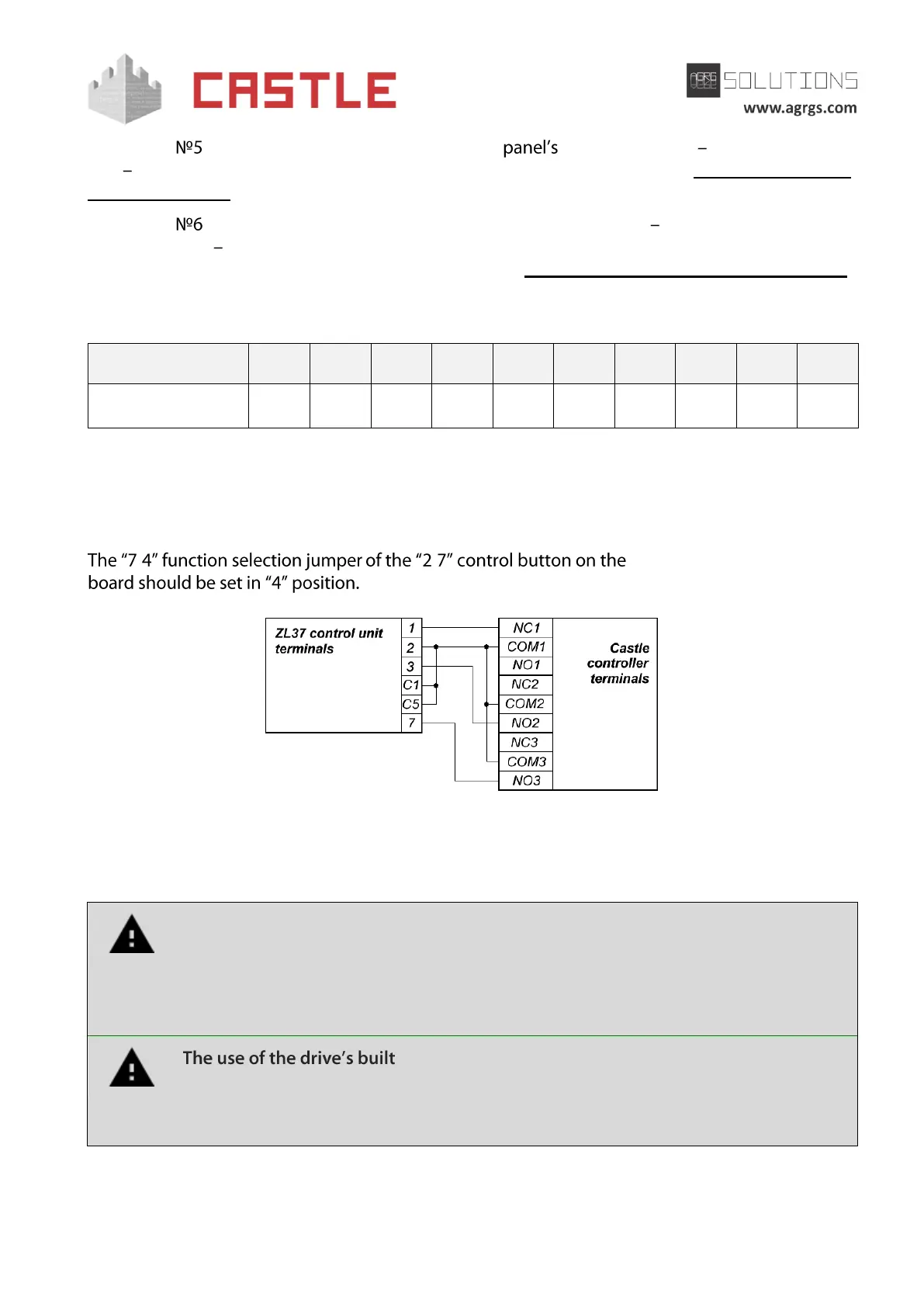

Pic 102. Connecting to ZL37and ZL38 control unit
The rest of the unit terminals (L1, L2, M, N, 5, 10, 11, E, F, FA, FC) are connected according to the
original instruction for ZL37 and ZL38 control unit.
All vehicle presence sensors, as well as manual control panel, should be connected
exclusively to the controller, and not to the barrier drive or to both of them.
Violation of this requirement may lead to different conflicts ranging from passage
registration failure to "freezing" the barrier beam in the intermediate states to
eventual damage of a passing vehicle.
-in radio receiver is forbidden. Command submission
bypassing the ACS controller will sooner or later lead to a damage of a passing
vehicle. For controlling the drive via remote keys, you should use Wiegand
interface radio receivers connected to the ACS controller.
Before enabling the access point that services ZL37 and ZL38 control unit, you need to make its
mandatory settings.
