The function selection micro toggle switch on the ZL55 control unit board should be set in the
position described in the following table.
Table 97. Setting the function selection micro toggle switch on the ZL55 control unit board
«X» sign in the "Toggle position" means that this switch performs the function that does not affect
the ACS operation, and it must be put in the required position according to the original instruction
for ZL55 control unit.

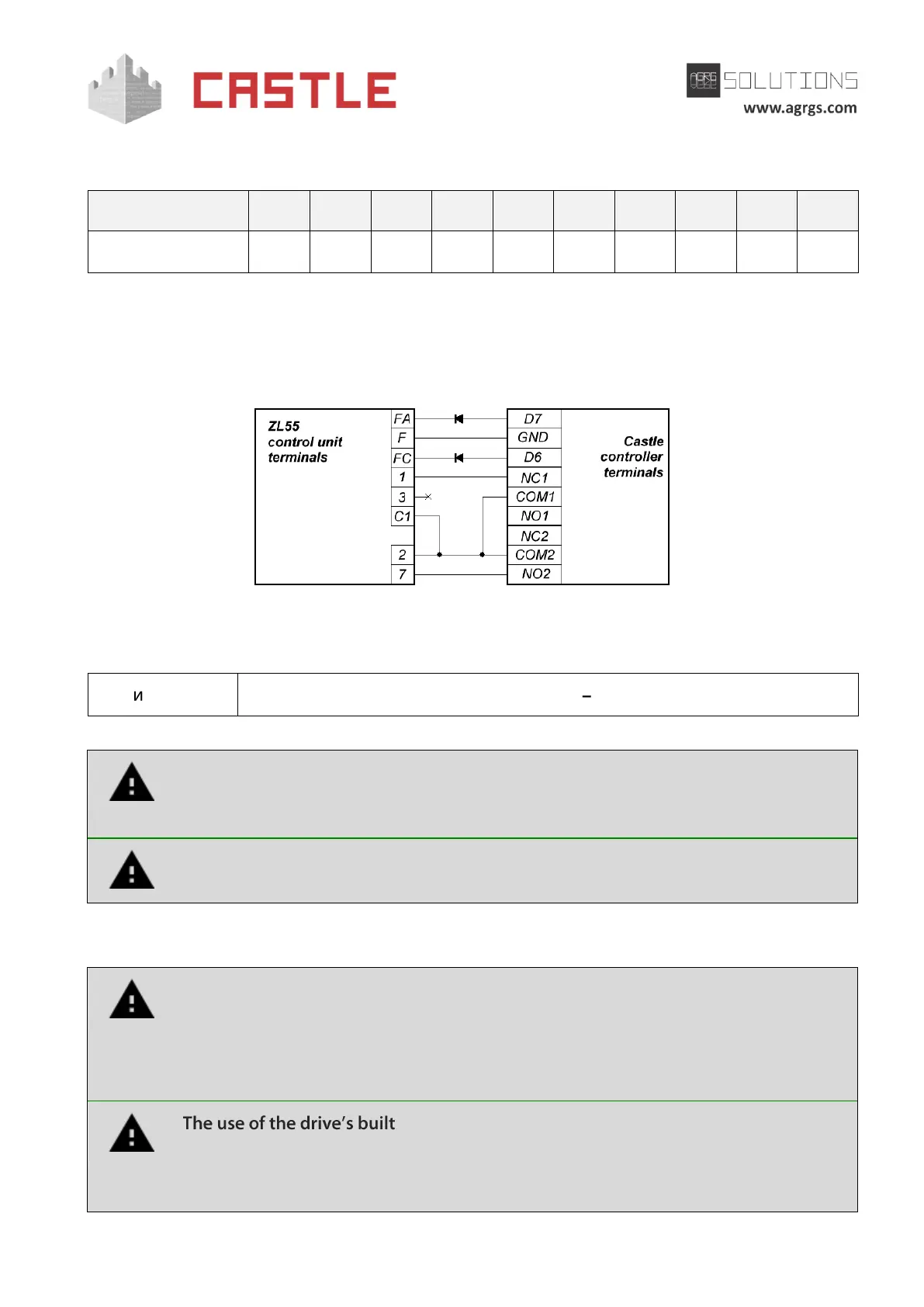

Pic 109. Connecting ZL55 control unit of V600 and V700 gates
Legend:
Schottky diodes (minimum reverse voltage 30V, e.g., 1N5819).
The presence of VD1 and VD2 diodes is a must! These diodes are designed to
match the barrier sensor outputs (operating voltage of 24V) with the controller
inputs (3.3V).
Attention! In addition to the controller, limit switches for opening and closing a
drive are connected to terminals F, FA, and FC.
The rest of the unit terminals (M, N, 10, 11, E, E3) are connected according to the original
instructions for ZL55 control unit.
All vehicle presence sensors, as well as manual control panel, should be connected
exclusively to the controller, and not to the barrier drive or to both of them.
Violation of this requirement may lead to different conflicts ranging from passage
registration failure to "freezing" the barrier beam in the intermediate states to
eventual damage of a passing vehicle.
-in radio receiver is forbidden. Command submission
bypassing the ACS controller will sooner or later lead to a damage of a passing
vehicle. For controlling the drive via remote keys, you should use Wiegand
interface radio receivers connected to the ACS controller.
