CONSOLE AI | Managing Channels (CP2) | 195
Note:

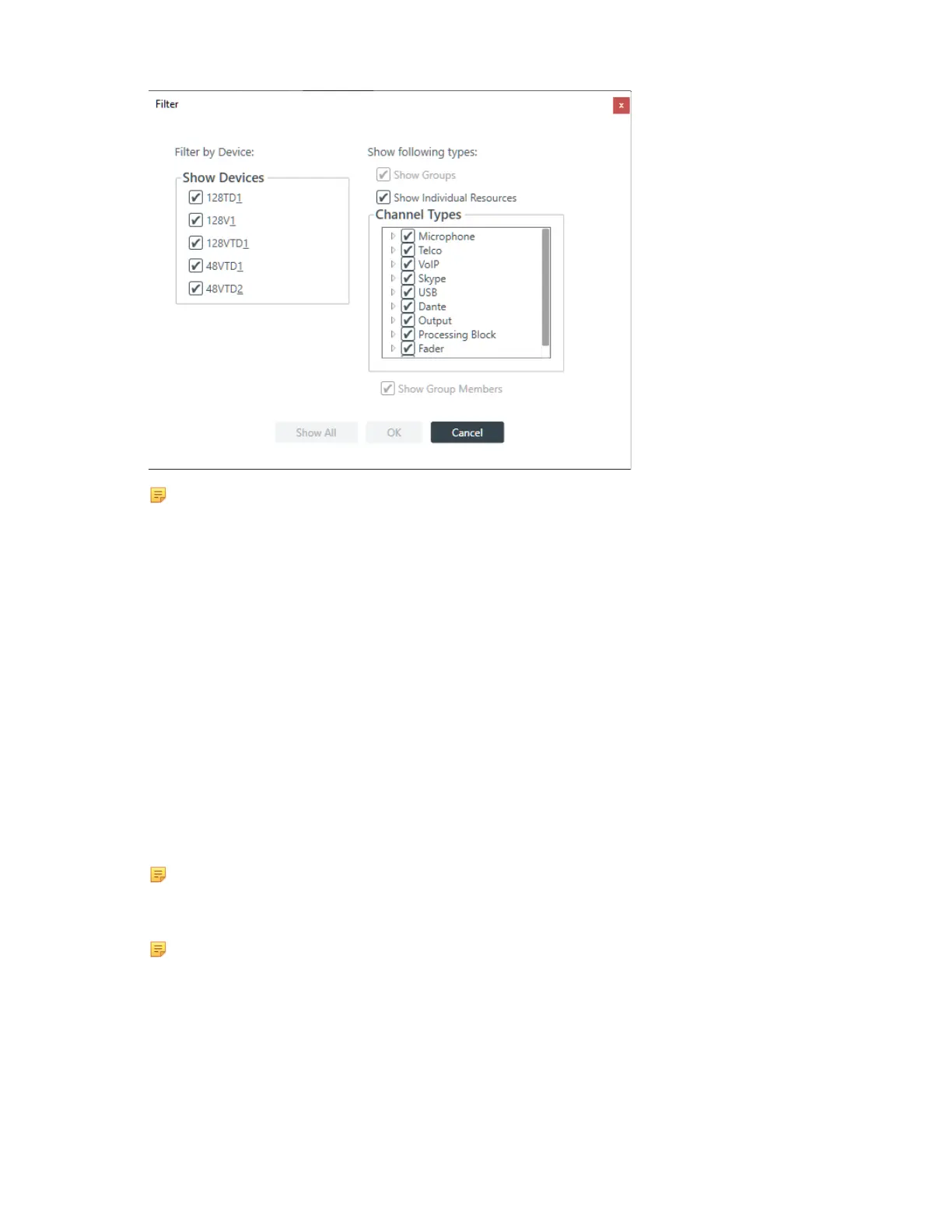

The Channel Types list varies depending on which CP2 devices you have added and which
assets you have added to the current project.
5. Select the assets you want to see in MatrixView, then click OK.
What appears in MatrixView is then limited to the asset types you have chosen.
6. To remove the filter and show all assets again, click Remove Filter at the top of the MatrixView screen.
Adjust MatrixView Display
7. To change the MatrixView display zoom, choose an option from the Zoom drop-down menu at top of
the MatrixView screen.
8. To move the display location within the MatrixView to the upper left, click Home at the top of the
MatrixView screen.
9. If the matrix is larger than the available screen space, scroll bars appear at the right side and the bottom
of the matrix cells. You can drag those scroll bars to change which part of the matrix displays.
Make Matrix Connections
10.To connect an input channel and an output channel, click a crosspoint in the channel matrix. Clicking
the crosspoint again cycles through the available types.
Note:
Crosspoints that appear black in the matrix cannot be selected, because you would be
connecting the input and output channels of the same asset, which would create a loop.
Note:
The current audio level is shown in crosspoint cells (to the nearest whole value if zoom is set to
small). If you are offline, the value is 0.
Depending on the channel types you are connecting, there are several types of connections you can
make, as described in the table below:
Crosspoint Type Description
Crosspoint Connections between channels that don’t involve microphones or
processing blocks are simple crosspoints, shown as green.
