Option Description
Gain (dB) The gain value for the filter you are configuring. Range is from -15 to
15dB. The default is 0dB.
Q Quality factor. the ratio of the center frequency divided by the
bandwidth. Q is the inverse of bandwidth, and the two parameters are
linked. Therefore changing the Q value also changes the bandwidth
value. Range is from 0.18 to 28.85.
Bandwidth The difference between the upper and lower points of a filter’s audio
passband. Bandwidth is the inverse of Q, and the two parameters are
linked. Hence changing the bandwidth value also changes the Q value.
The range is 0.05 to 5.00 octaves.
22.(Optional) Alternatively, you can drag the filter nodes in the filter graph to change some filter option
values.
23.Repeat the process for each filter you want to add.
24.Click Close.
AGC/ALC
25.To turn ALC on, slide the AGC/ALC Mode slider to ALC.
26.To turn AGC on, slide the AGC/ALC Mode slider to AGC.
27.To change the AGC settings, click the AGC button.

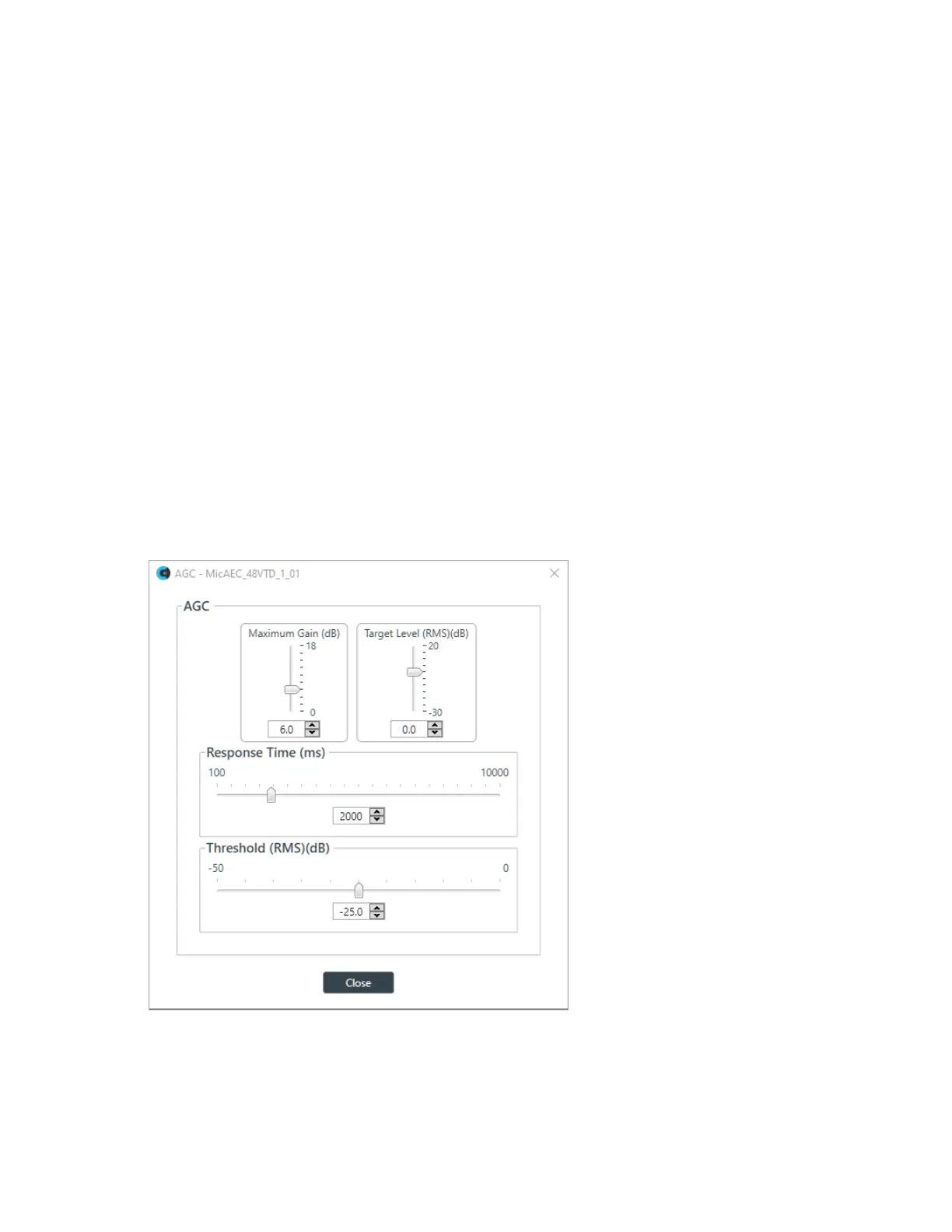

The AGC Settings dialog box appears:
28.Use any of the following methods to change the Maximum Gain, Target Level, Response Time, or
Threshold (options described in the table below):
• Drag the slider
• Type a value in the text box
• Click the incrementer and decrementer arrows beside the text box to set the value
