CONSOLE AI | Configuration - Offline (Huddle) | 97

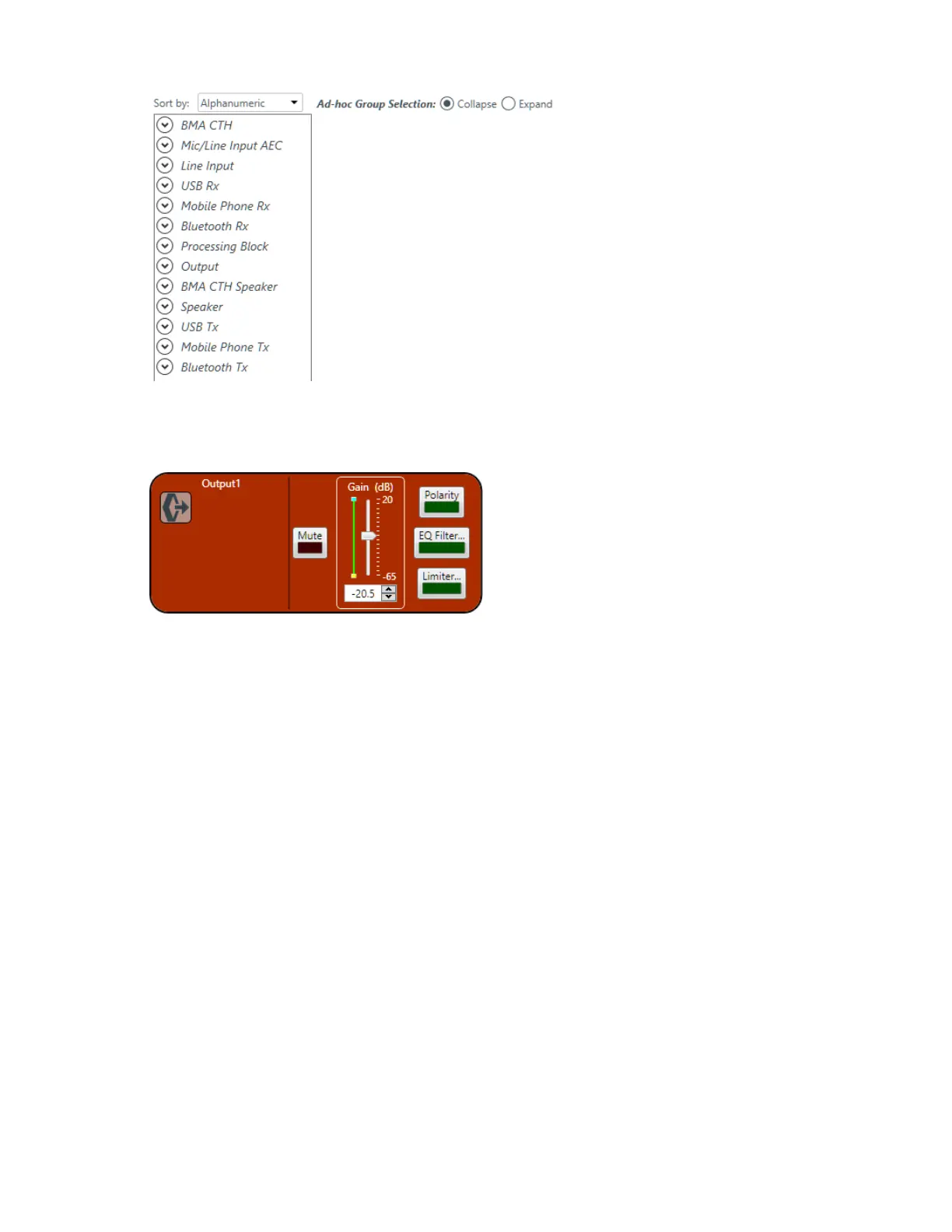

2. Click Output to open the channel list.
3. Select the channel you want to change.
The Output Channel Properties block appears:
Mute
4. To mute this channel, click the Mute button (the button changes to red if the channel is muted).
Gain
5. You can change the gain in any of the following ways:
• Drag the slider
• Type a value in the text box
• Click the incrementer and decrementer arrows beside the text box to set the value
Polarity
6. To reverse the polarity of the output channel, click the Polarity button.
If the polarity is reversed the button turns light green.
EQ Filter
7. To enable and configure an equalizer filter, click the EQ Filter button.
The Graphic EQ dialog box appears:
CONSOLE AI User Manual
