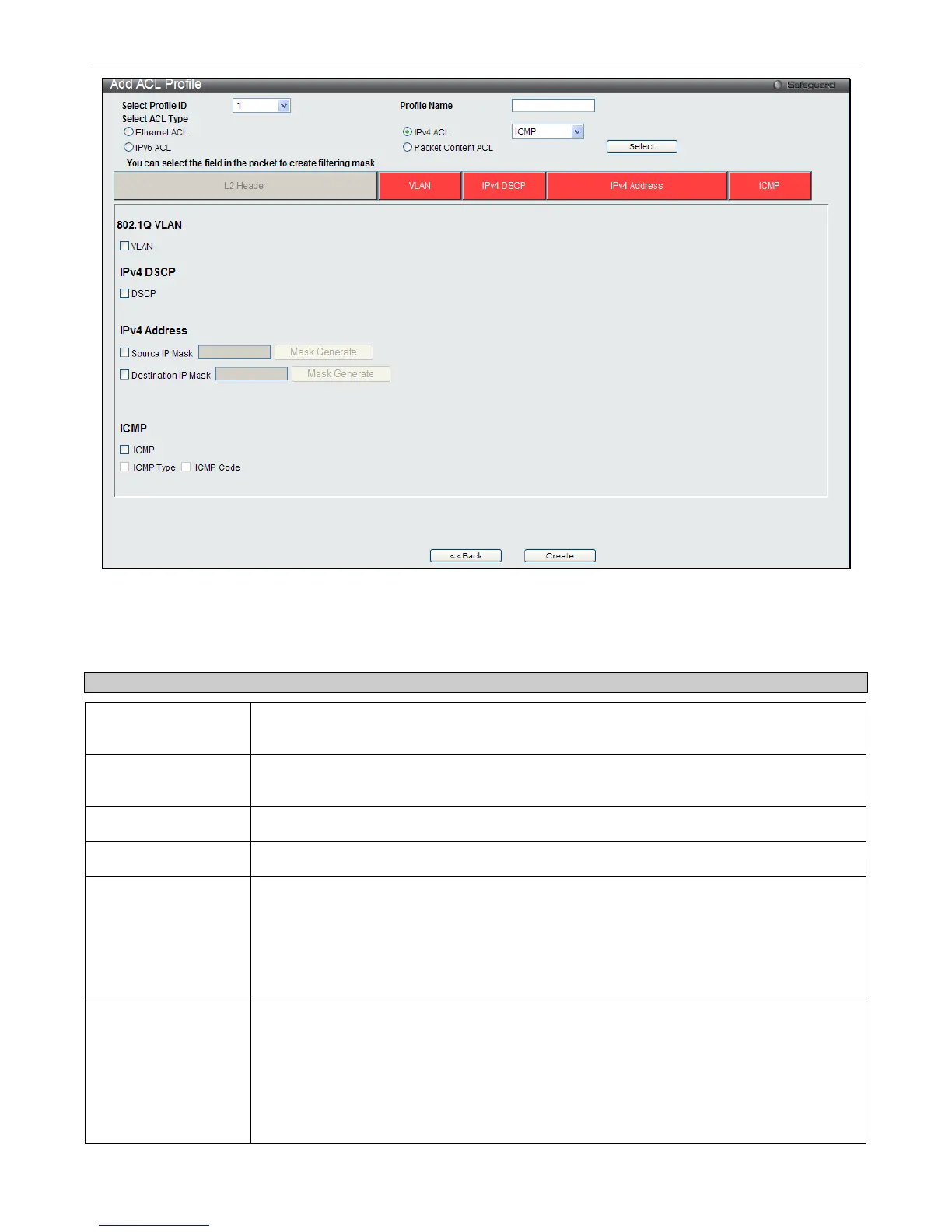

Figure 7 - 10 Add IPv4 ACL Profile
Click on the boxes at the top of the table, which will then turn red and reveal parameters for configuration. To create a
new entry enter the correct information and click Create. To return to the Access Profile List page click Back.
The following parameters can be set, for IP:
Parameter Description
VLAN
Selecting this option instructs the Switch to examine the VLAN part of each packet header
and use this as the, or part of the criterion for forwarding.
DSCP
Selecting this option instructs the Switch to examine the DiffServ Code part of each packet
header and use this as the, or part of the criterion for forwarding.
Source IP Mask
Enter an IP address mask for the source IP address.
Destination IP Mask
Enter an IP address mask for the destination IP address.
ICMP Type
• icmp − Specifies that the Switch will examine the Internet Control Message Protocol
(ICMP) field within each packet.
• type <value 0-255> − Specifies that the access profile will apply to this ICMP type
value.
• code <value 0-255> − Specifies that the access profile will apply to this ICMP code
value.
Protocol
Selecting this option instructs the Switch to examine the protocol type value in each frame's
header. You must then specify what protocol(s) to include according to the following
guidelines:
Select ICMP to instruct the Switch to examine the Internet Control Message Protocol (ICMP)
field in each frame's header.
Select Type to further specify that the access profile will apply an ICMP type
