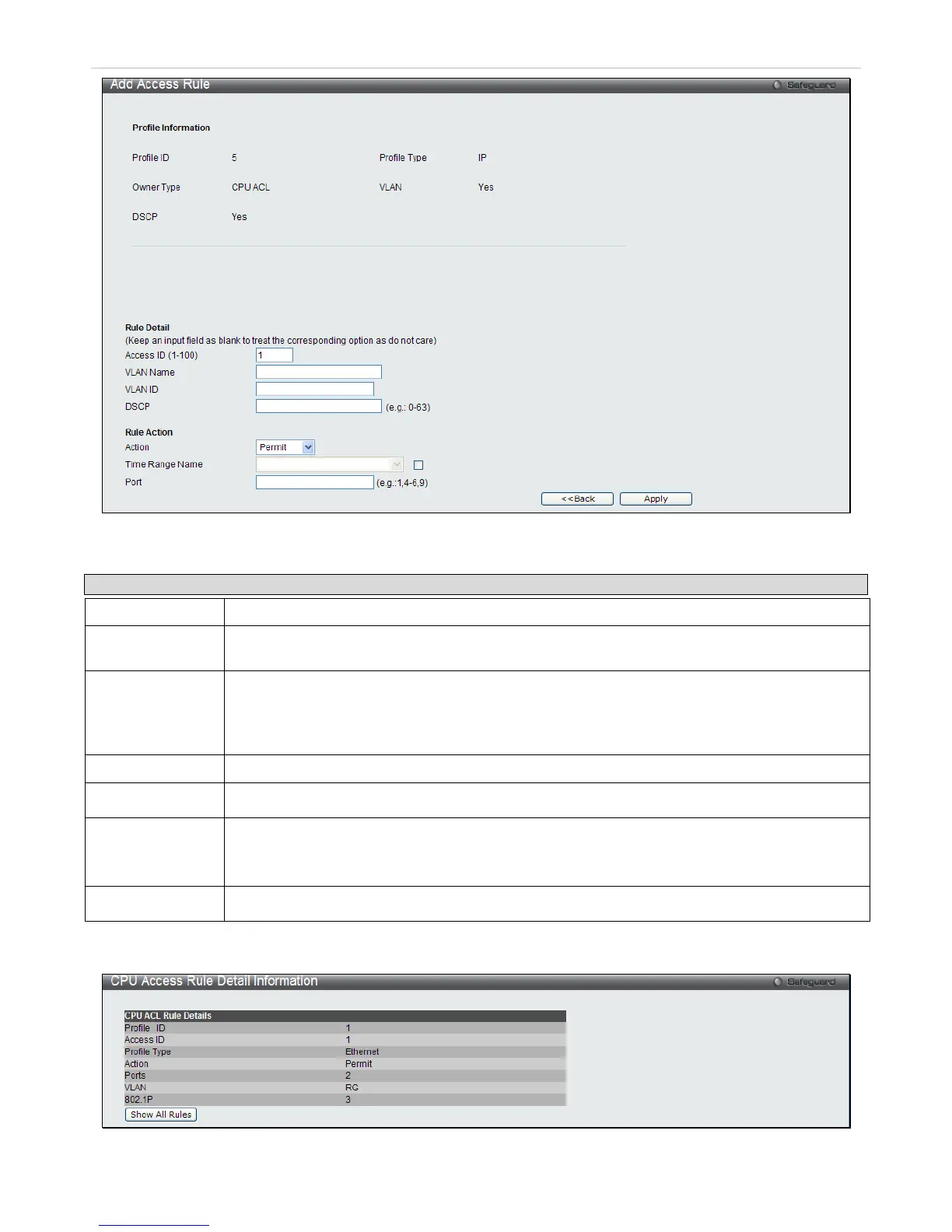

Figure 7 - 41 Add Access Rule window for IPv4
To set the Access Rule for IP, adjust the following parameters and click Apply
Parameter Description
Access ID (1-100) Type in a unique identifier number for this access. This value can be set from 1 to 100.
DSCP
Selecting this option instructs the Switch to examine the DiffServ Code part of each packet
header. Enter a value between 0 and 63.
Action Select Permit to specify that the packets that match the access profile are forwarded by the
Switch, according to any additional rule added (see below).
Select Deny to specify the packets that match the access profile are not forwarded by the Switch
and will be filtered.
VLAN Name
Enter a VLAN name that has been previously configured.
VLAN ID
Enter a VLAN ID that has been previously configured.
Time Range
Name
Tick the check box and enter the name of the Time Range settings that has been previously
configured in the Time Range Settings window. This will set specific times when this access rule
will be implemented on the Switch.
Ports
Specifies the access rule can take effect on one port or a range of ports.
To view the settings of a previously correctly configured rule, click the corresponding Show Details button on the CPU
Access Rule List window to view the following window:
Figure 7 - 42 CPU Access Rule Detail Information window for IP
