Axle (ZF AP 420R)
6. Inner plate: 3 x 4.5 mm (0.1181 x 0.1772
in).
• Dimension D e.g. 13.50 mm (0.5315
in).
7. Dimension E = Backing plate.
• Dimension E e.g. 12.00 mm (0.4724
in).
EXAMPLE
NOTE:
If the required plate clearance according the table, (See page 67) is not obtained, correct
with corresponding outer plates. If necessary, mount thinner outer plates on the piston
side, resp. backing plate side.
Dimension A 121.50 mm (4.7835 in)
Dimension B - 75.20 mm (2.9606 in)
Dimension C - 18.00 mm (0.7080 in)
Dimension D - 13.50 mm (0.5315 in)
Dimension E - 12.00 mm (0.4724 in)
Difference = Plate clearance = 2.80 mm (0.1102 in)

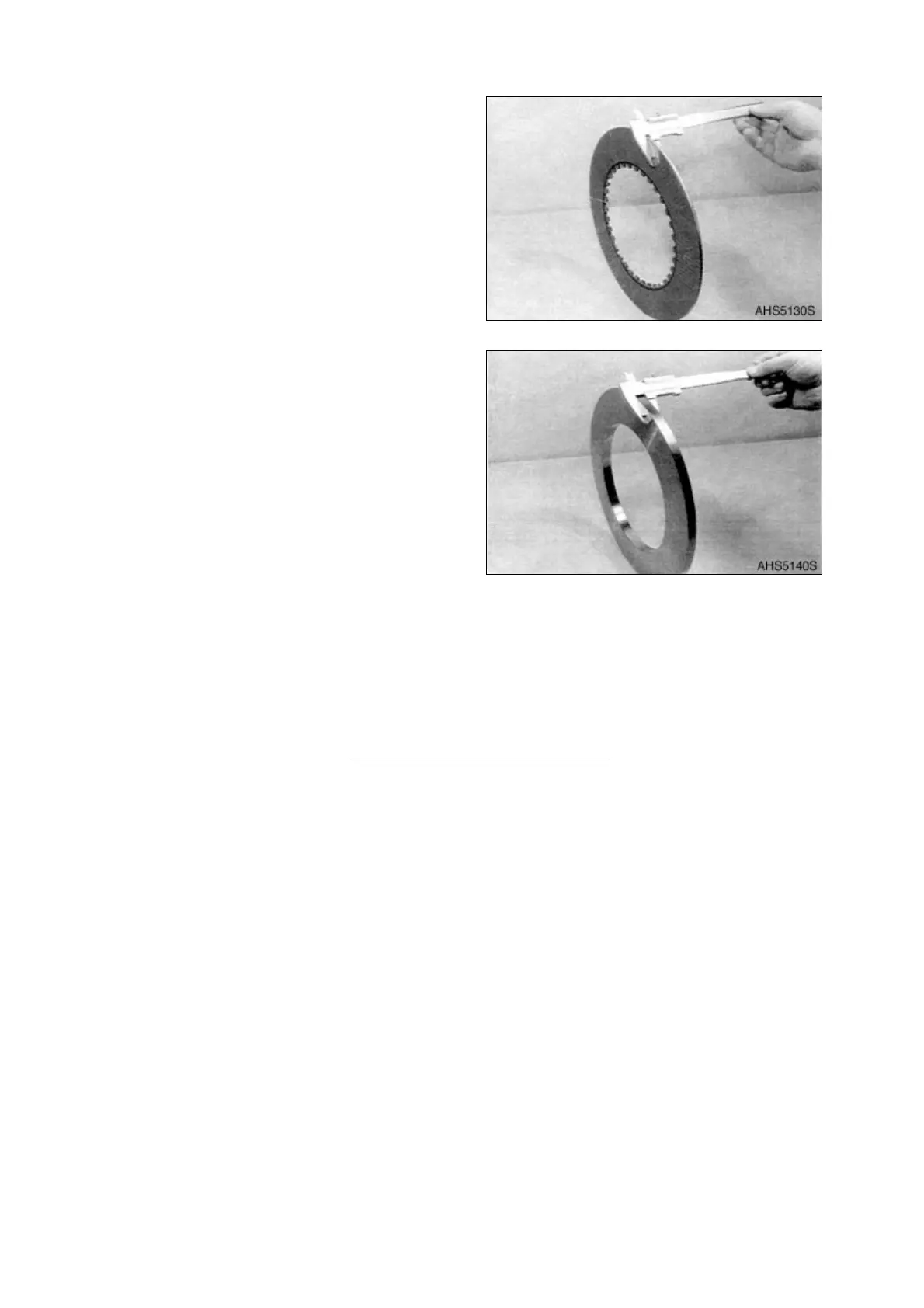

Figure 137
Figure 138
