Axle (ZF AP 420R)
8. Install alternating outer and Inner plates
(starting with one outer plate).
9. Figure 140, shows the required
arrangement of the outer plates.
10. Insert backing plate - stepped plane
surface is facing outwards.
11. Hold plate pack into position using circlip.
NOTE:
See “Special Tools” on page 15.

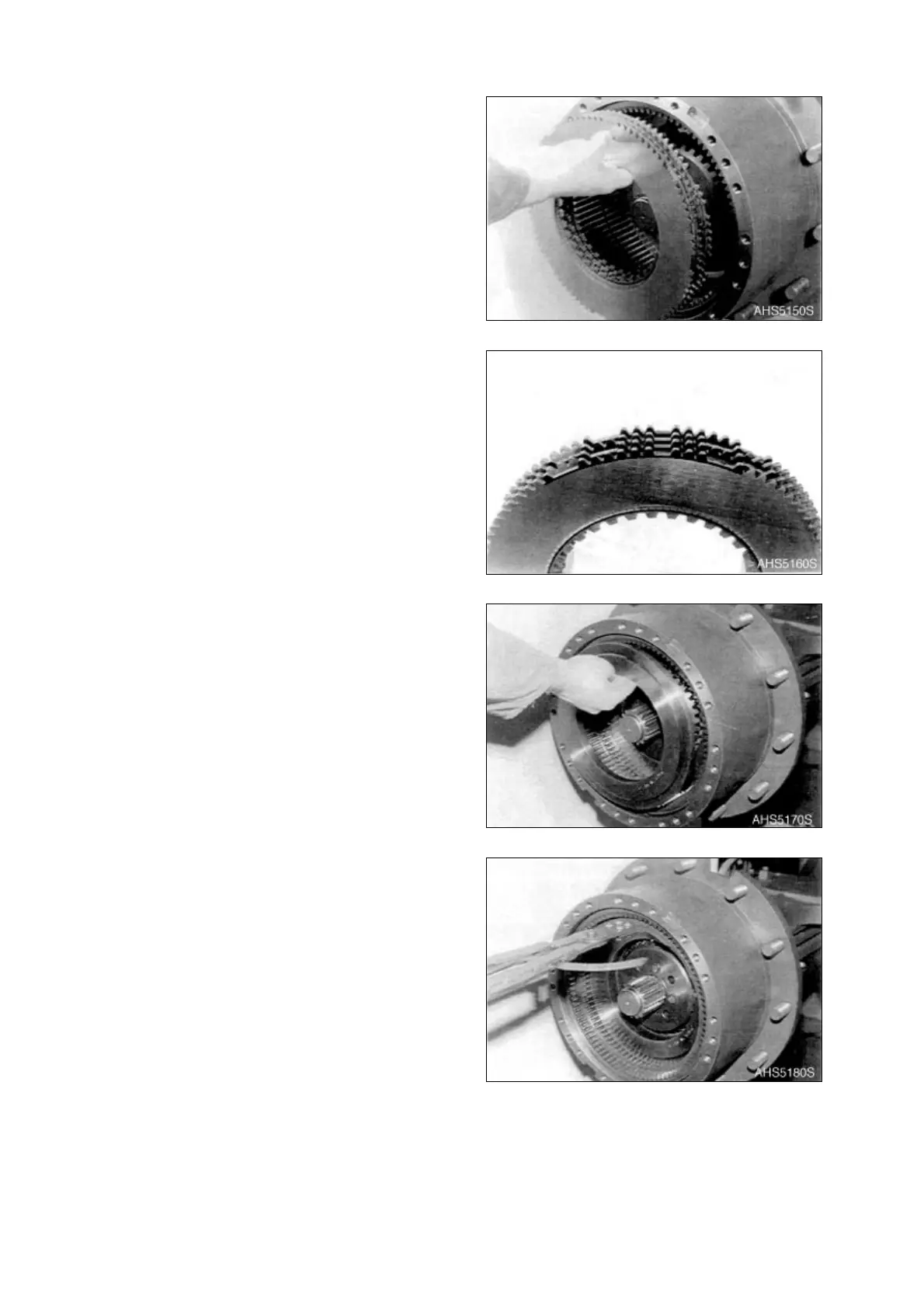

Figure 139
Figure 140
Figure 141
Figure 142
