S0602170K
Page 104
Axle (ZF AP 420R)
E. Secure the two adjusting nuts.
F. Tilt differential carrier.
G. Insert lock plate until contact is
obtained and caulk it on the drive
flange.
NOTE:
See “Special Tools” on page 15.
H. Cover flange-mounted surface with
the sealing compound Loctite #573.
I. Screw in the two adjusting screws
and place the differential carrier
against the axle housing until contact
is obtained.
NOTE:
See “Special Tools” on page 15.
J. Fasten differential carrier on the axle
housing using hex. head screws.
NOTE:
Cover threads of hex. head
screws with sealing compound.
NOTE:
Now, install stub shafts again
and complete the final drive.
NOTE:
Before the Axle is put into
Service follow the “Lubrication
Instructions” on page 8

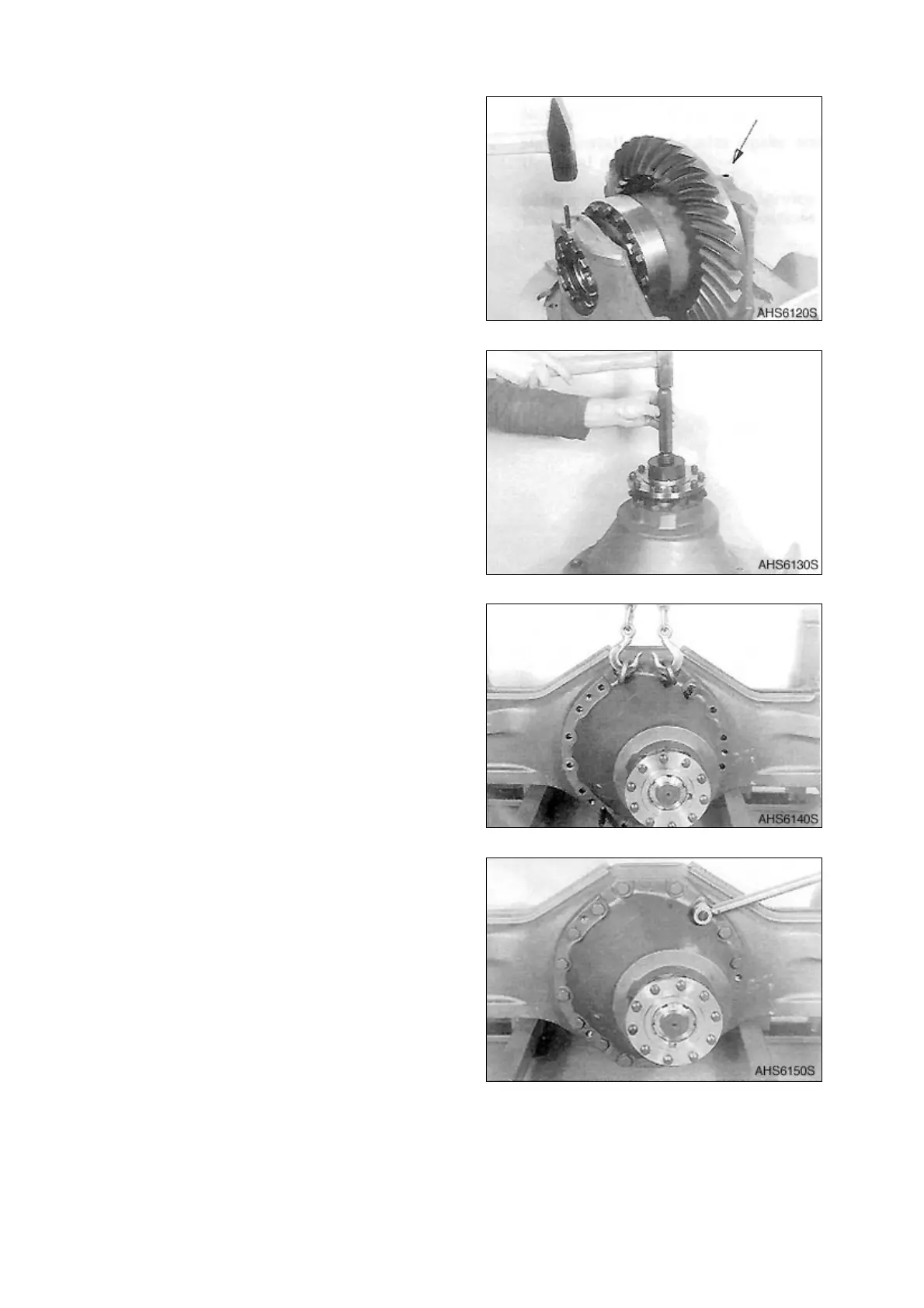

Figure 238
Figure 239
Figure 240
Figure 241
