S0602170K
Page 113
Axle (ZF AP 420R)

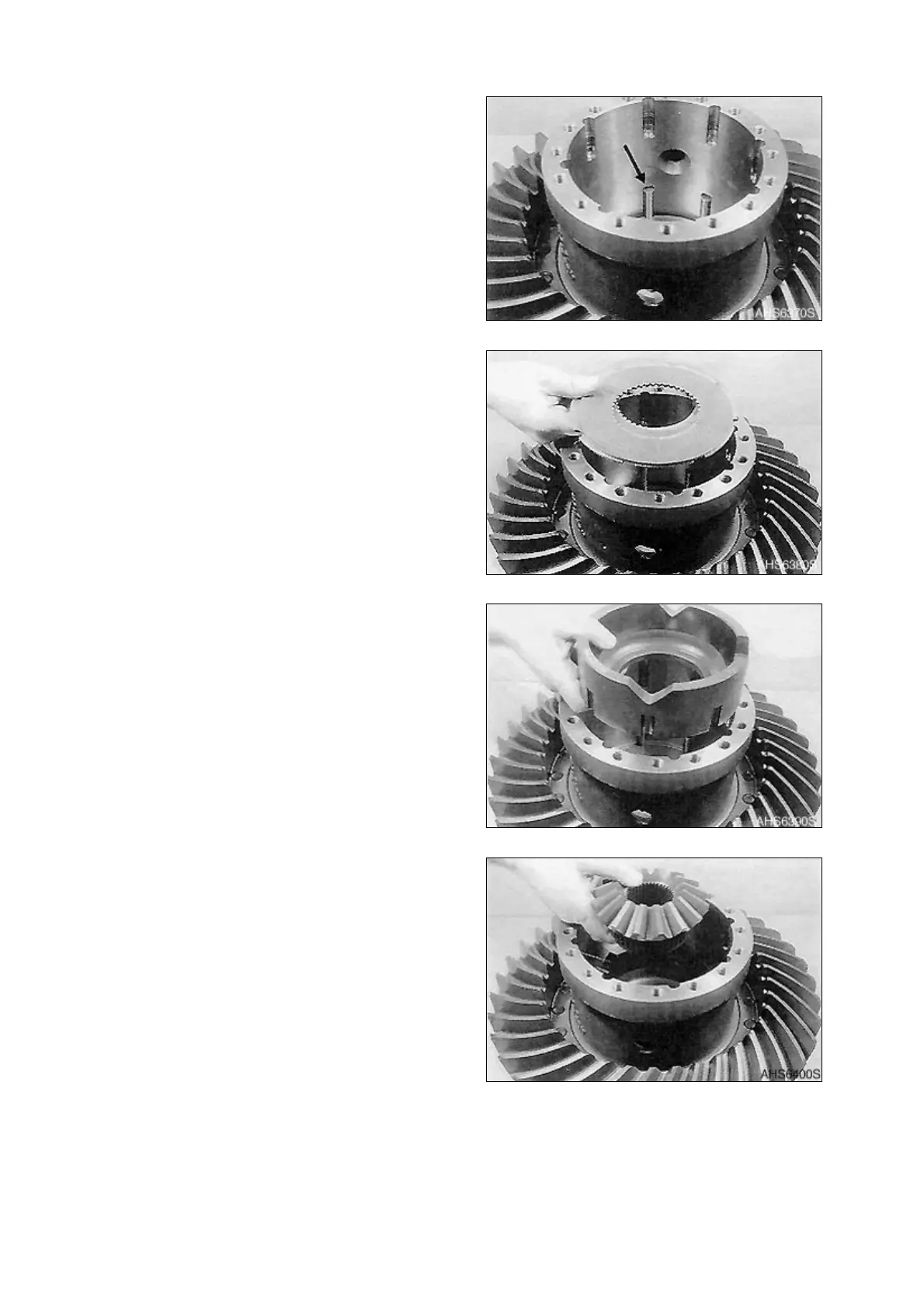

6. Insert drive pin, see Figure 264.
7. Assemble alternating outer and inner
plates, starting with one outer plate.
NOTE:
Number and installation
position of outer and inner
plates, see corresponding list of
spare parts. The total height
(thickness) of the plate pack
must be equal on both
differential sides. Plate
thickness of outer plates may
be different.
8. Replace pressure ring.
9. Insert side gear and assemble inner plates
at the same time.
Figure 264
Figure 265
Figure 266
Figure 267
