S0602170K
Page 114
Axle (ZF AP 420R)

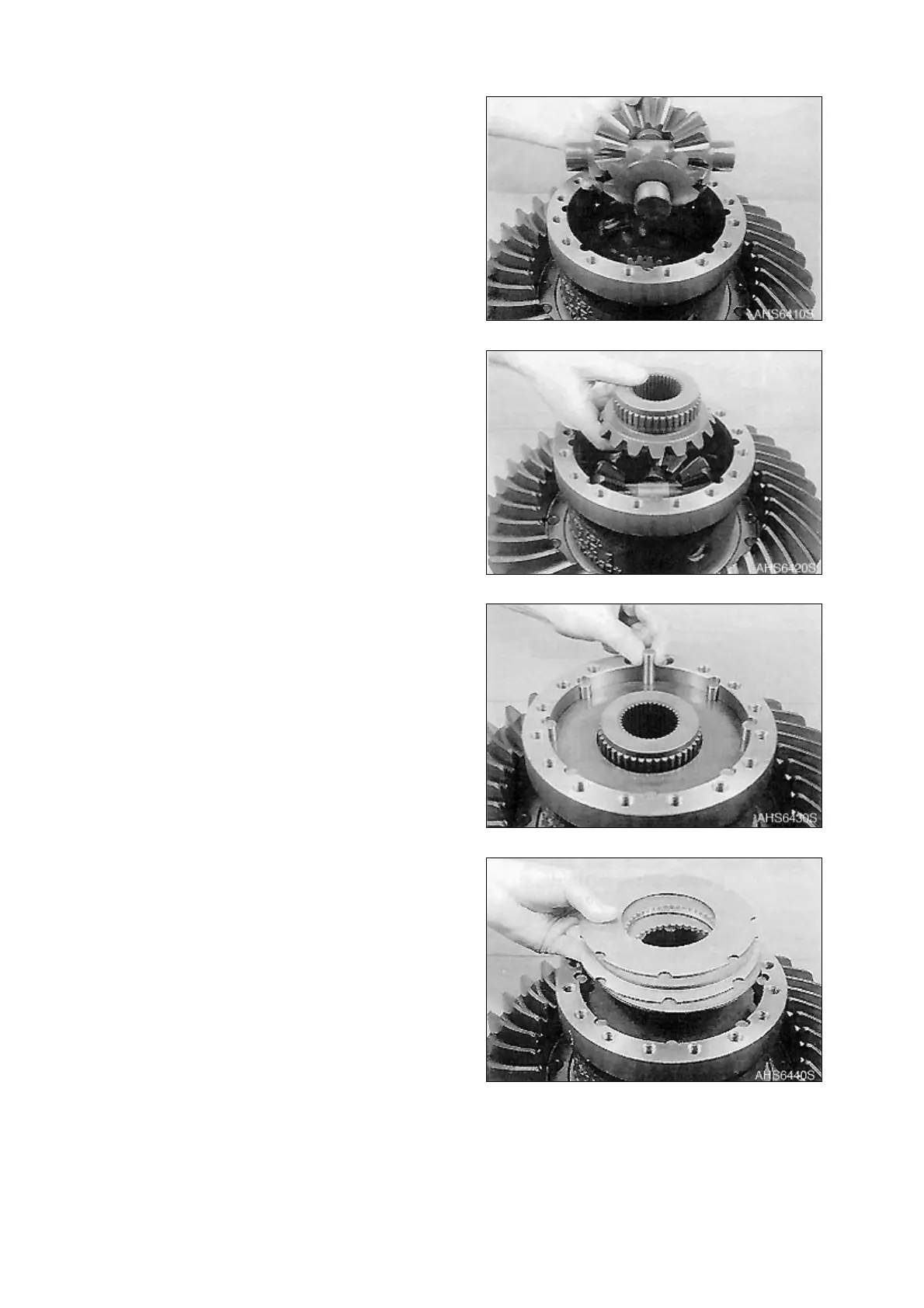

10. Insert the differential spider assembly.
11. Install second side gear.
12. Install second pressure ring and insert all
drive pins.
NOTE:
Pay attention to the radial
installation position of the
pressure ring.
13. Assemble alternating inner and outer
plates, starting with one inner plate.
NOTE:
Number and installation
position of inner and outer
plates, see corresponding list of
spare parts.
Figure 268
Figure 269
Figure 270
Figure 271
