Axle (ZF AP 420R)
14. Tilt differential carriers.
15. Insert lock plate until contact is obtained
and caulk on the drive flange.
16. Cover flange-mounted surface with sealing
compound Loctite #573.
17. Screw in the two adjusting screws and
place the differential carrier against the
axle housing until contact is obtained.
NOTE:
See “Torque Limits for Screws”
on page 6.
NOTE:
Now, install stub shafts again
and complete the final drive.
Before the Axle is put into
Service, follow the “Lubrication
Instructions” on page 8

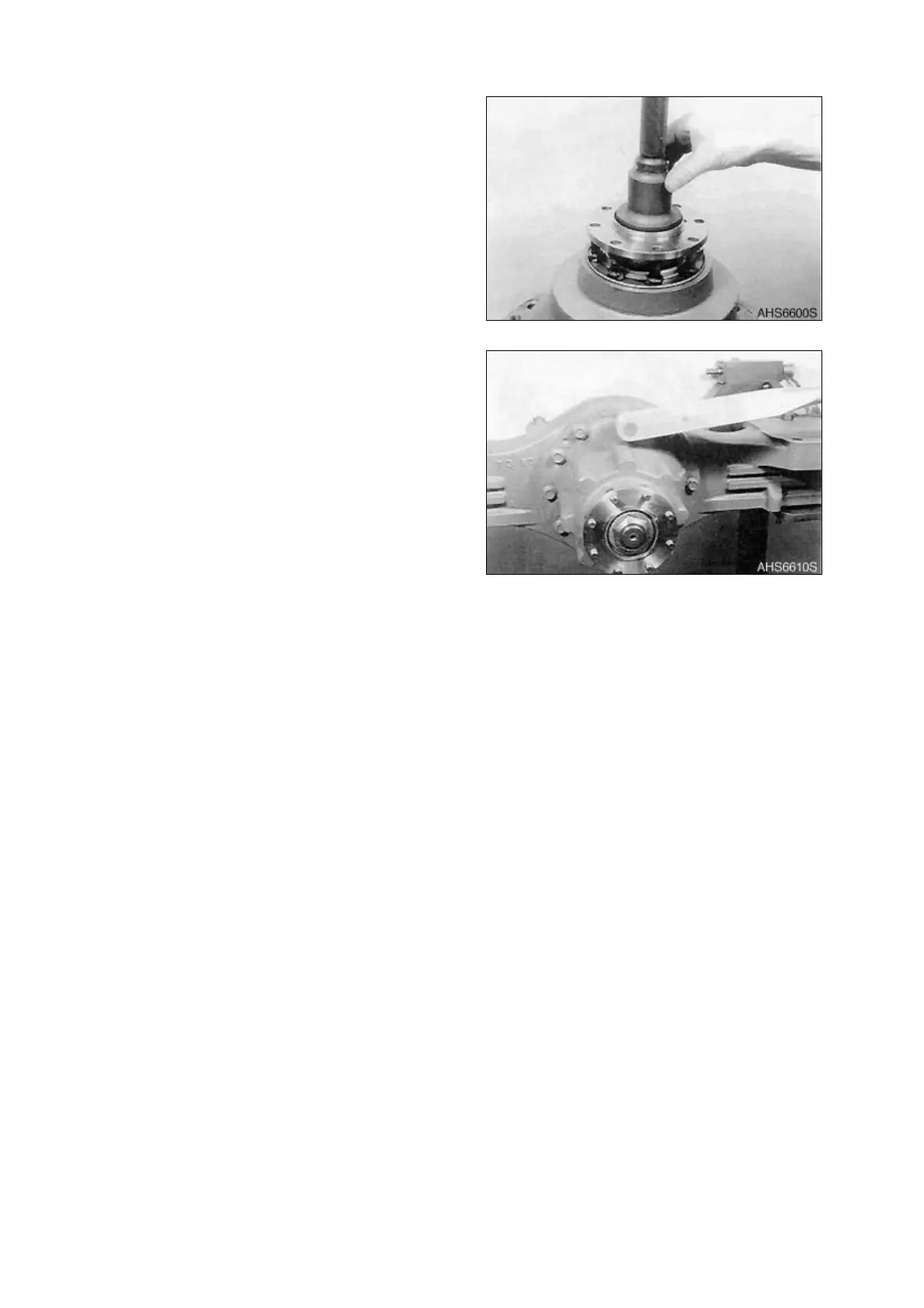

Figure 287
Figure 288
