S0607080K
Page 63
Transmission and Torque Converter
(ZF 4WG-310)

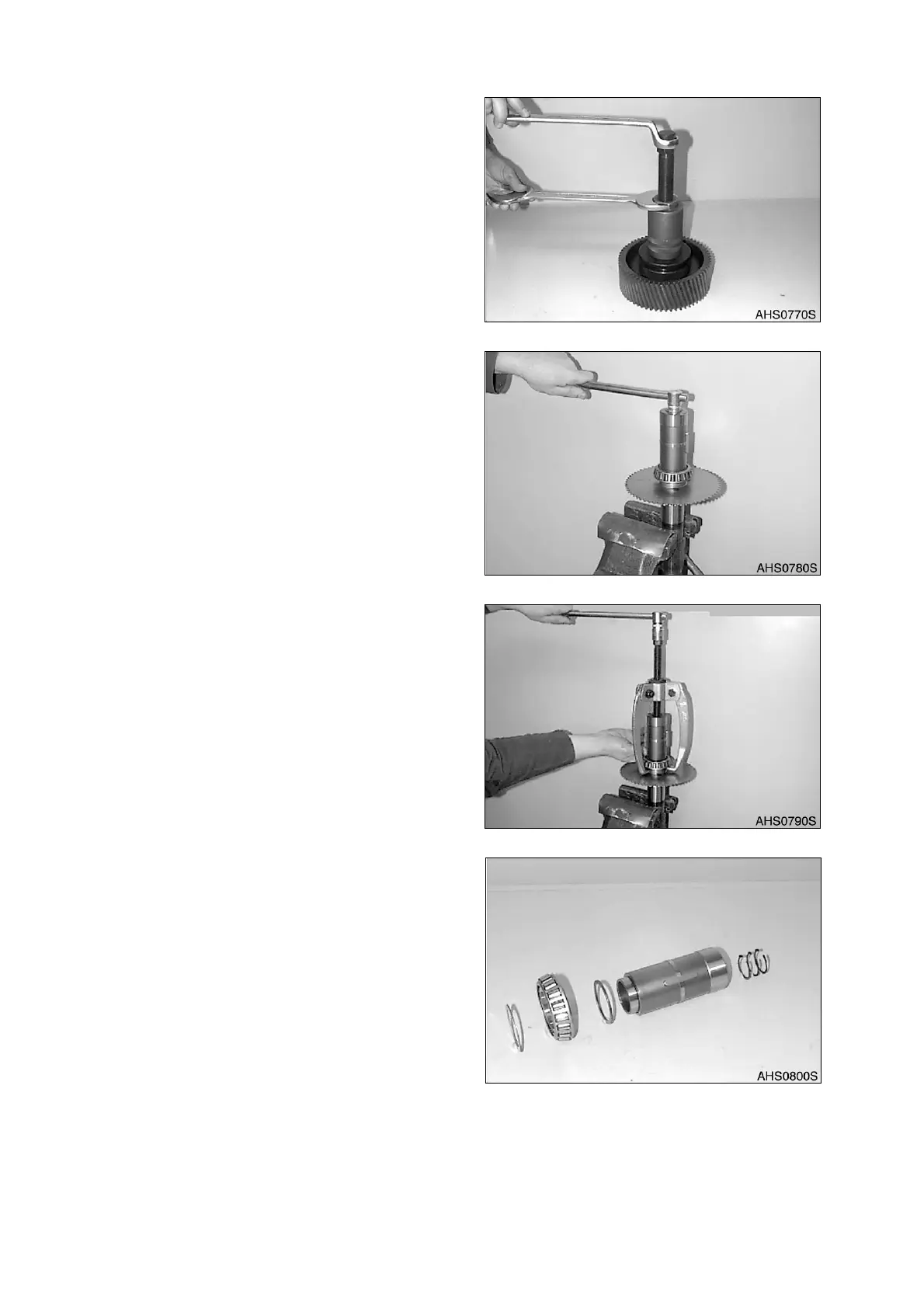

4. Pull inner bearing race from spur gear.
5. Pull inner bearing race from spur gear.
6. Pull inner bearing race and drive from
shaft.
NOTE:
Support puller on end face/
drive shaft. Pay attention to
released shims.
7. Separate inner bearing race from driver.
NOTE:
Pay attention to released shim.
8. If necessary, squeeze snap rings (3x) out.
Figure 97
Figure 98
Figure 99
Figure 100
