S0607080K
Page 62
Transmission and Torque Converter
(ZF 4WG-310)
11. Remove converter pressure backup valve.
DRIVE SHAFT PUMP POWER TAKE-OFF
1. Pull the complete input shaft out of the
gearbox housing, resp. out of the pump.
2. Squeeze rectangular ring out (Figure 95).
3. Separate spur gear from the shaft and
squeeze circlip out (Figure 96).

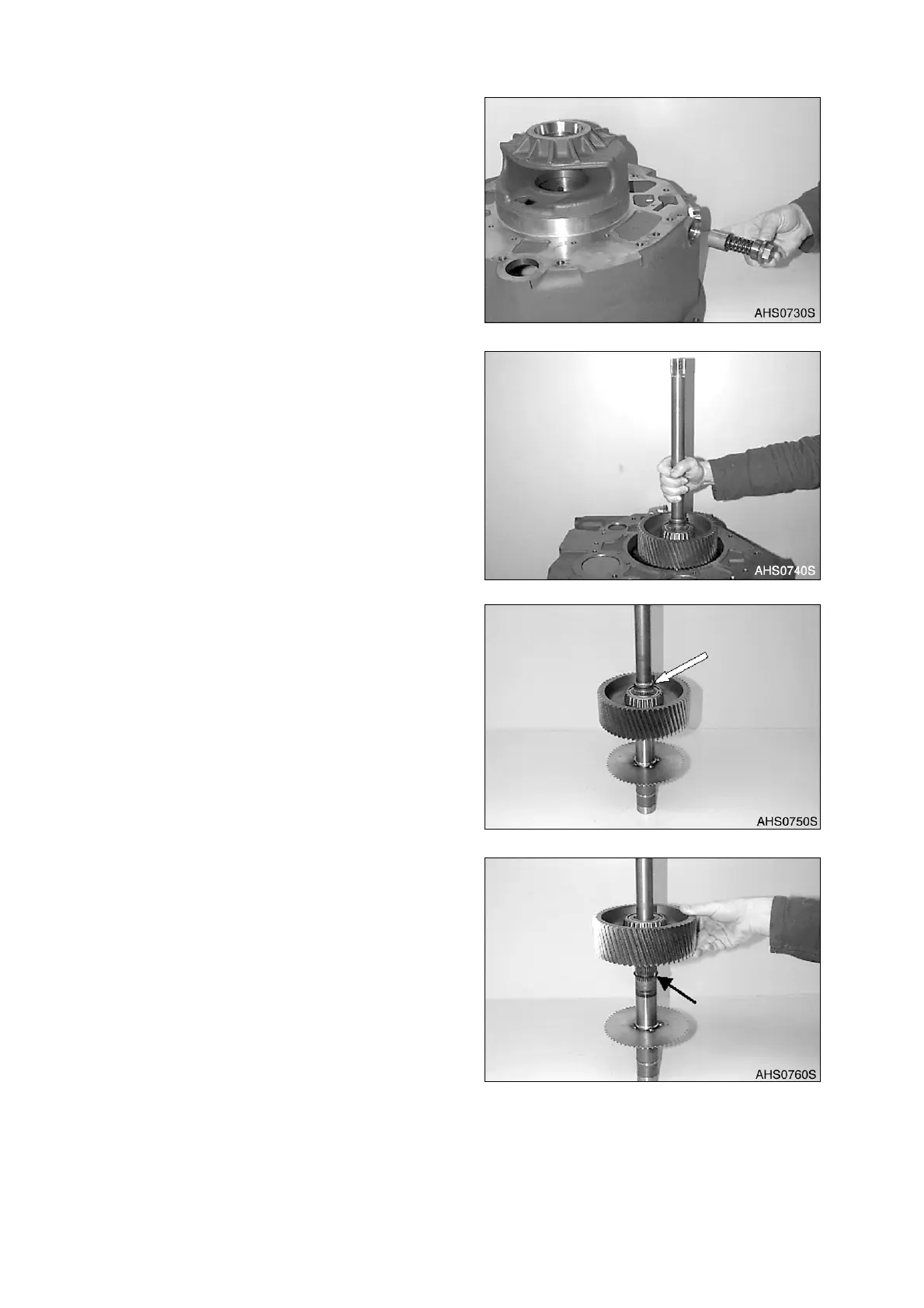

Figure 93
Figure 94
Figure 95
Figure 96
