Daewoo Mega 500-V - Page 312

S0607080K
Page 61
Transmission and Torque Converter
(ZF 4WG-310)

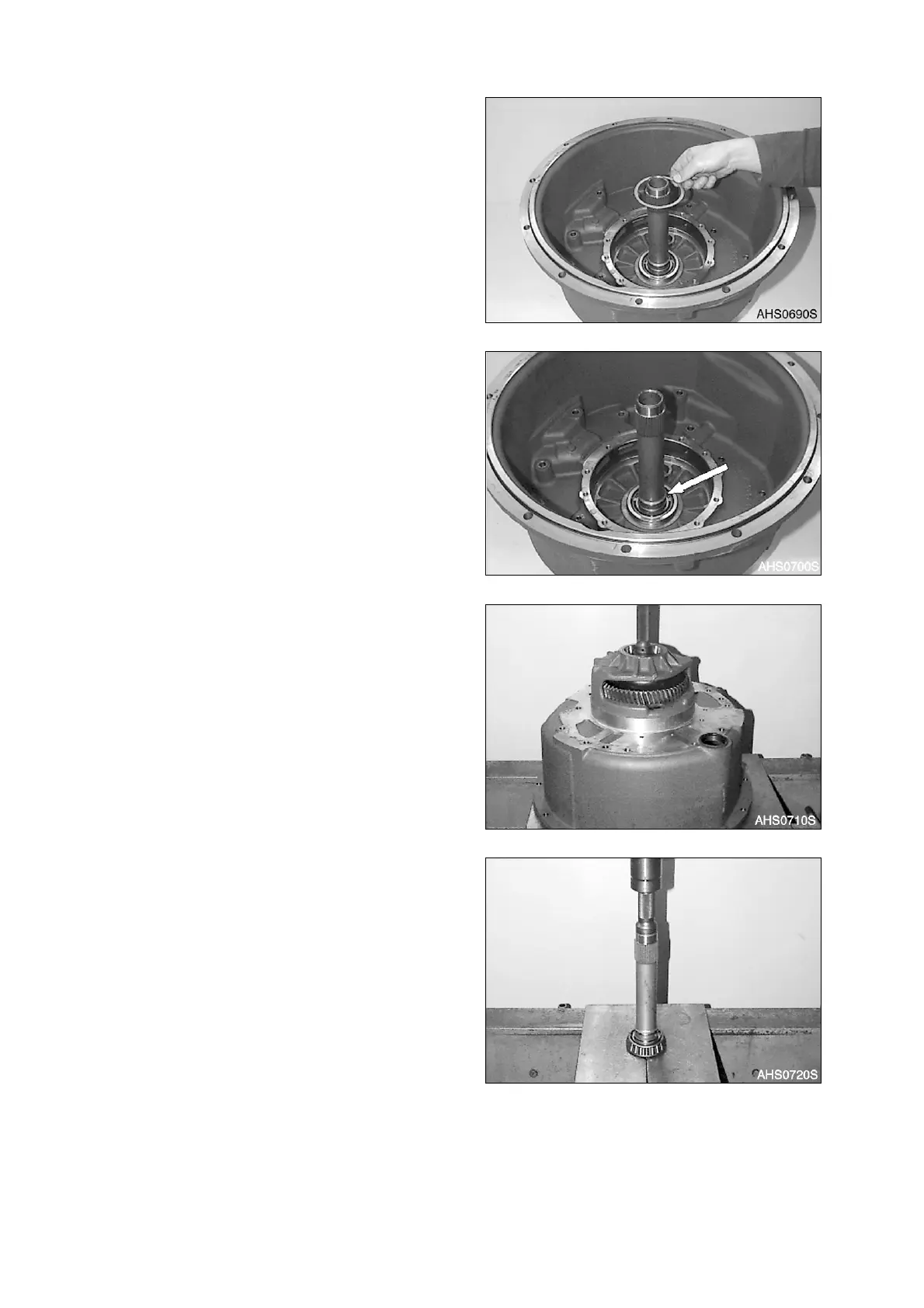

6. Remove shim.
7. Remove both rectangular rings (Figure
90).
8. Press input shaft out of the spur gear
bearing.
9. Remove released inner bearing race and
spur gear.
10. Press inner bearing race from the input
shaft.
Figure 89
Figure 90
Figure 91
Figure 92
