S0607080K
Page 66
Transmission and Torque Converter
(ZF 4WG-310)
8. Tilt gearbox housing 180˚.
9. Loosen hex. head screws and pull bearing
cover -K1/KV out of housing bore.
10. Loosen hex. head screws and remove
bearing cover KR/K2 and K3/K4.

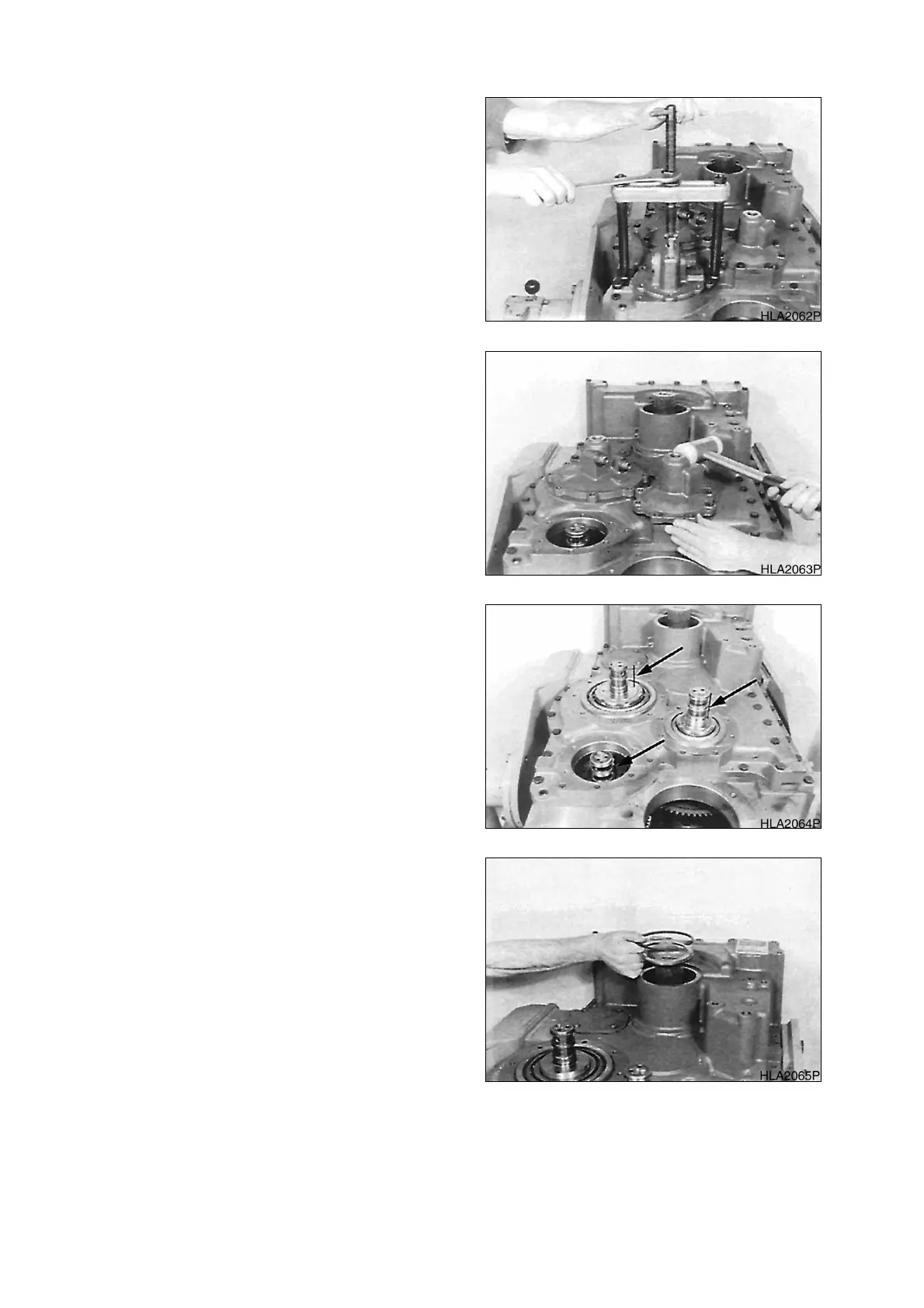

11. Squeeze rectangular rings (3 pieces/axle)
out, see Figure 111.
12. Squeeze snap ring and remove released
washers.
Figure 109
Figure 110
Figure 111
Figure 112
