S0607080K
Page 67
Transmission and Torque Converter
(ZF 4WG-310)

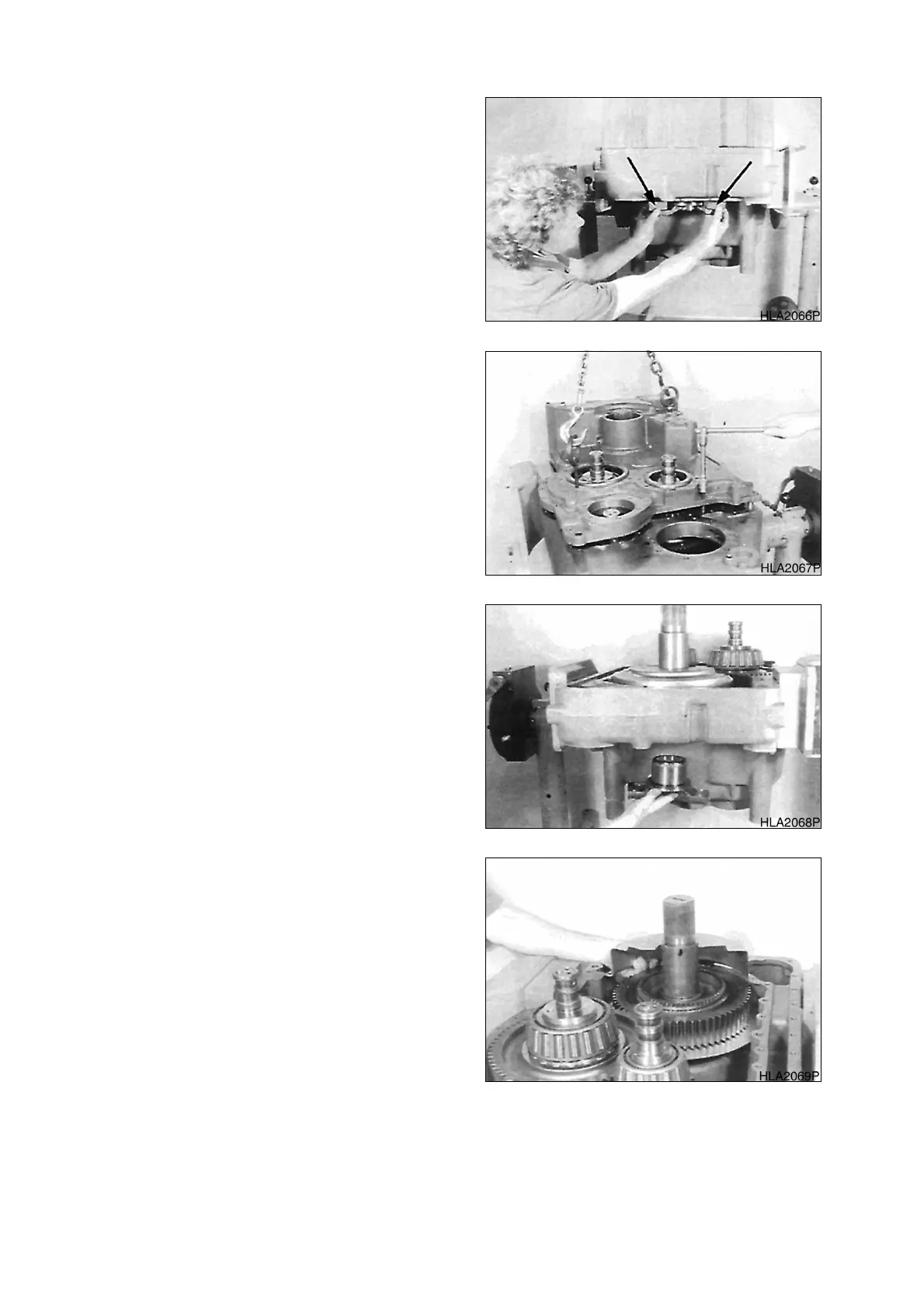

13. Support output flange against gearbox
housing, see Figure 113.
14. Loosen hex. head screws and separate
housing cover from gearbox housing,
using forcing screws and lifting device.
15. Unlock and loosen hex. head screws.
16. Remove output flange and pry shaft seal
out of housing.
17. Loosen hex. head screws and remove oil
baffle.
Figure 113
Figure 114
Figure 115
Figure 116
