S0607080K
Page 83
Transmission and Torque Converter
(ZF 4WG-310)

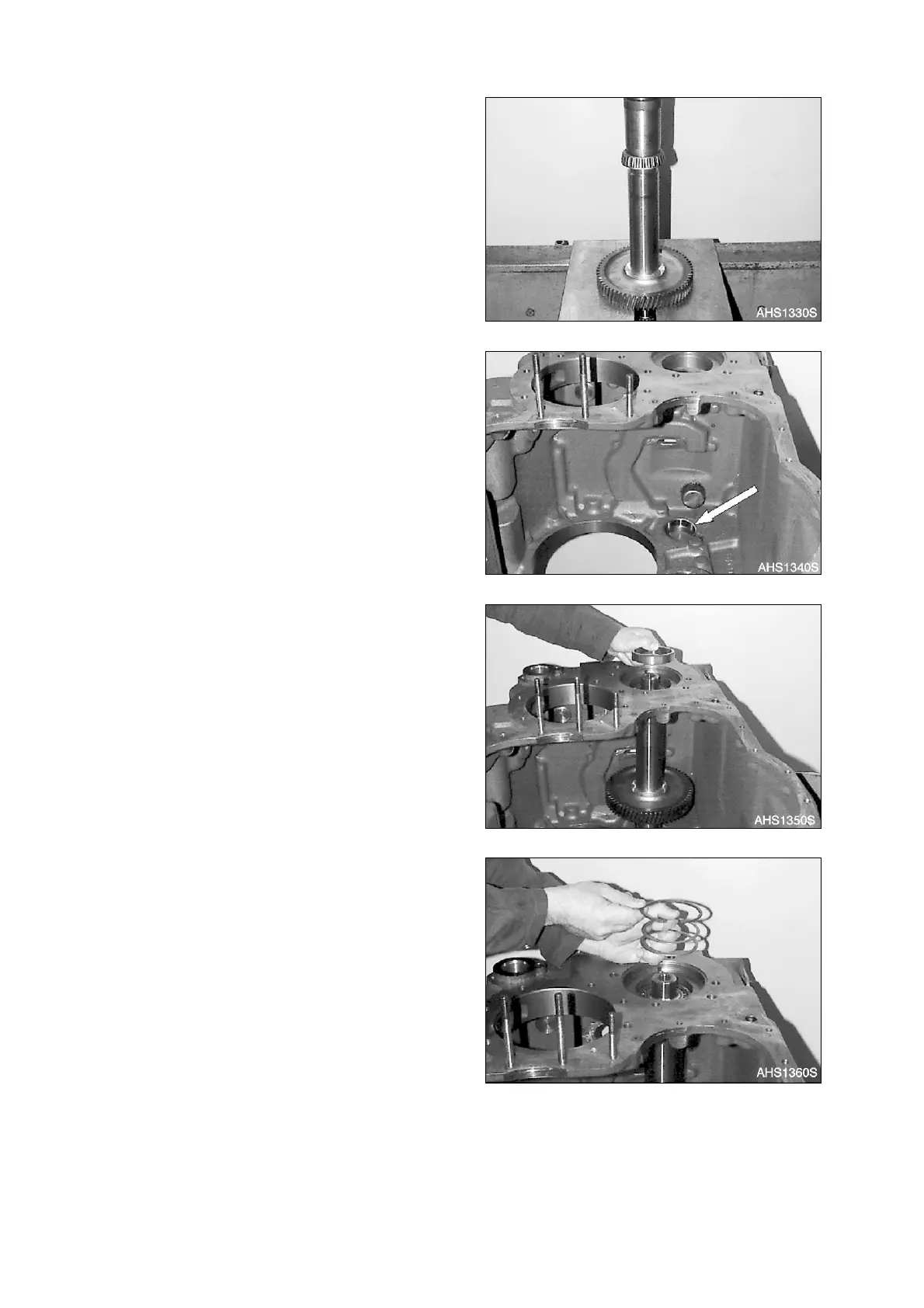

2. Press inner bearing race against shoulder.
3. Press opposite inner bearing race against
shoulder.
4. Insert outer bearing race (Figure 174) into
the housing bore until contact is obtained.
5. Position pre-assembled PTO shaft in the
housing, and insert outer bearing race until
contact is obtained.
6. Adjust Axial play ā Power take-off bearing
ā max. 0.10 mm (0.0039 in) using shim(s)
and circlip.
Figure 173
Figure 174
Figure 175
Figure 176
