Transmission and Torque Converter
(ZF 4WG-310)
7. Tilt gearbox housing 180˚.
8. Insert sealing disk (Figure 177), with the
concave side facing downward, into the
housing bore until contact is obtained.
NOTE:
Wet contact face with Loctite
#262
REASSEMBLE MULTIDISK CLUTCH K3/K4
1. Lift plate carrier, with the K4-side facing
downward, into the clamping ring (S) and
secure it. Now, tilt plate carrier 180˚.
2. Insert both roll pins (6x24 and 3.5x24)
flush-mounted into the end face-side bore
of the plate carrier, see Arrow in Figure
178.
3. Tilt plate carrier 180˚.
4. Wet both roll pins (Figure 179) with Loctite
#262 and install them.
IMPORTANT
Do not damage the centric orifice
hole ∅0.8 mm (0.0315 in) during the
installation of the sealing disk

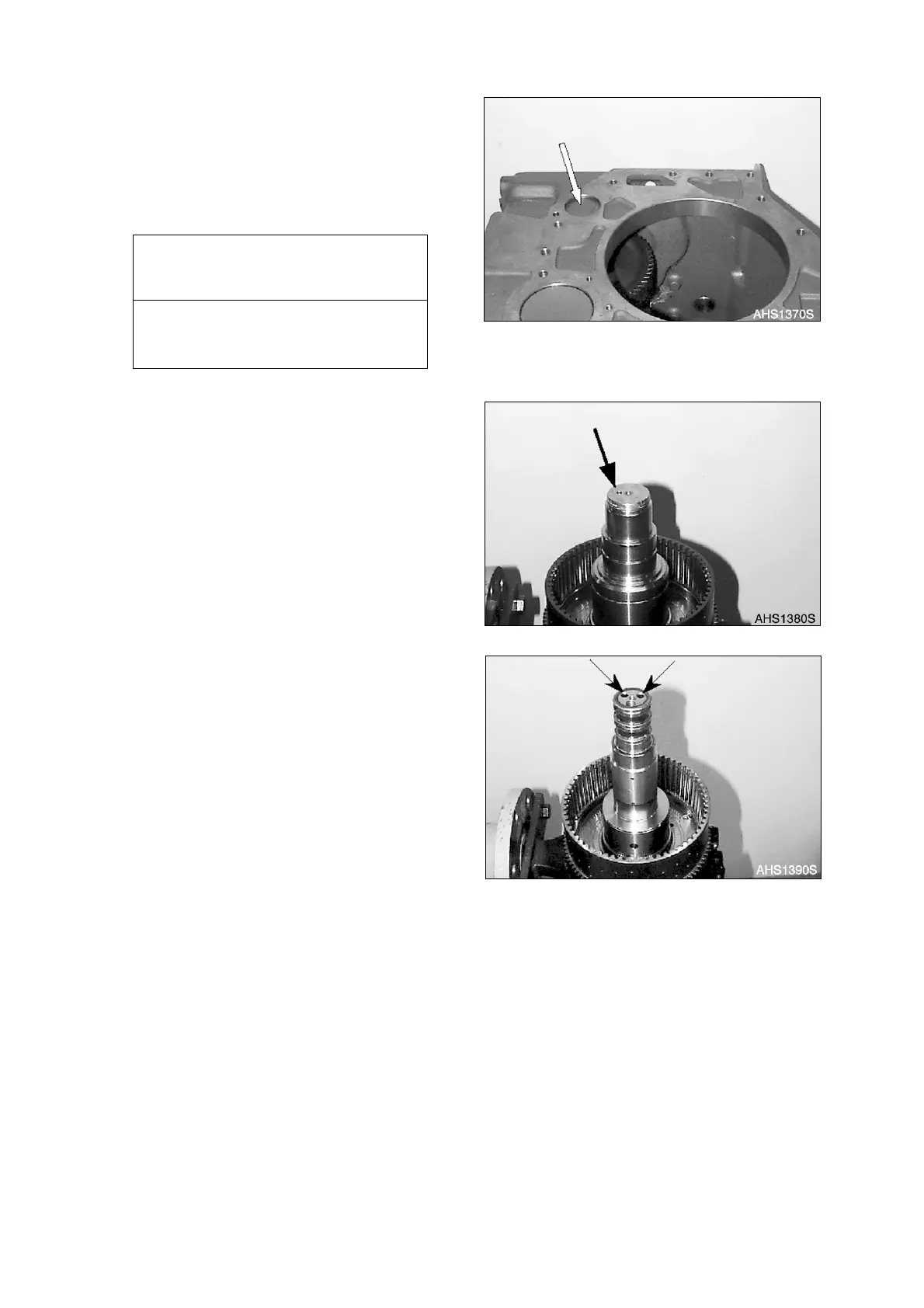

Figure 177
Figure 178
Figure 179
