S0607080K
Page 85
Transmission and Torque Converter
(ZF 4WG-310)
5. Insert purge valve (Figure 180) flush-
mounted, with the chamfer facing
downward.
6. Insert both O-rings scrollfree into the ring
grooves of the piston, see Figure 181.
7. Oil O-rings and piston bearing surfaces.
8. Insert piston K3 uniformly until contact is
obtained.
NOTE:
Pay attention to the installation
position of the piston, see
Figure 182.
9. Introduce intermediate washer and
compression spring.

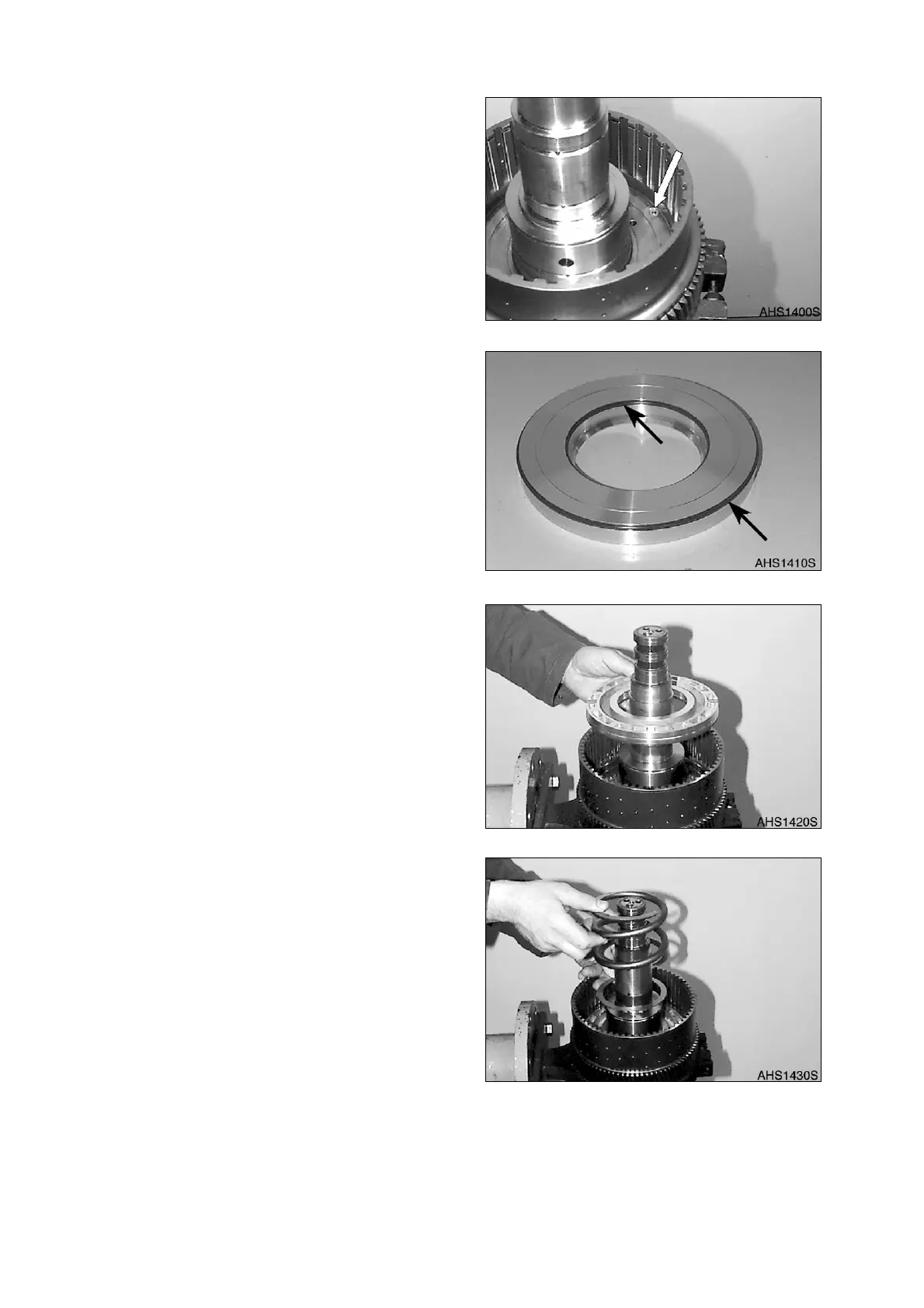

Figure 180
Figure 181
Figure 182
Figure 183
