S0607080K
Page 86
Transmission and Torque Converter
(ZF 4WG-310)

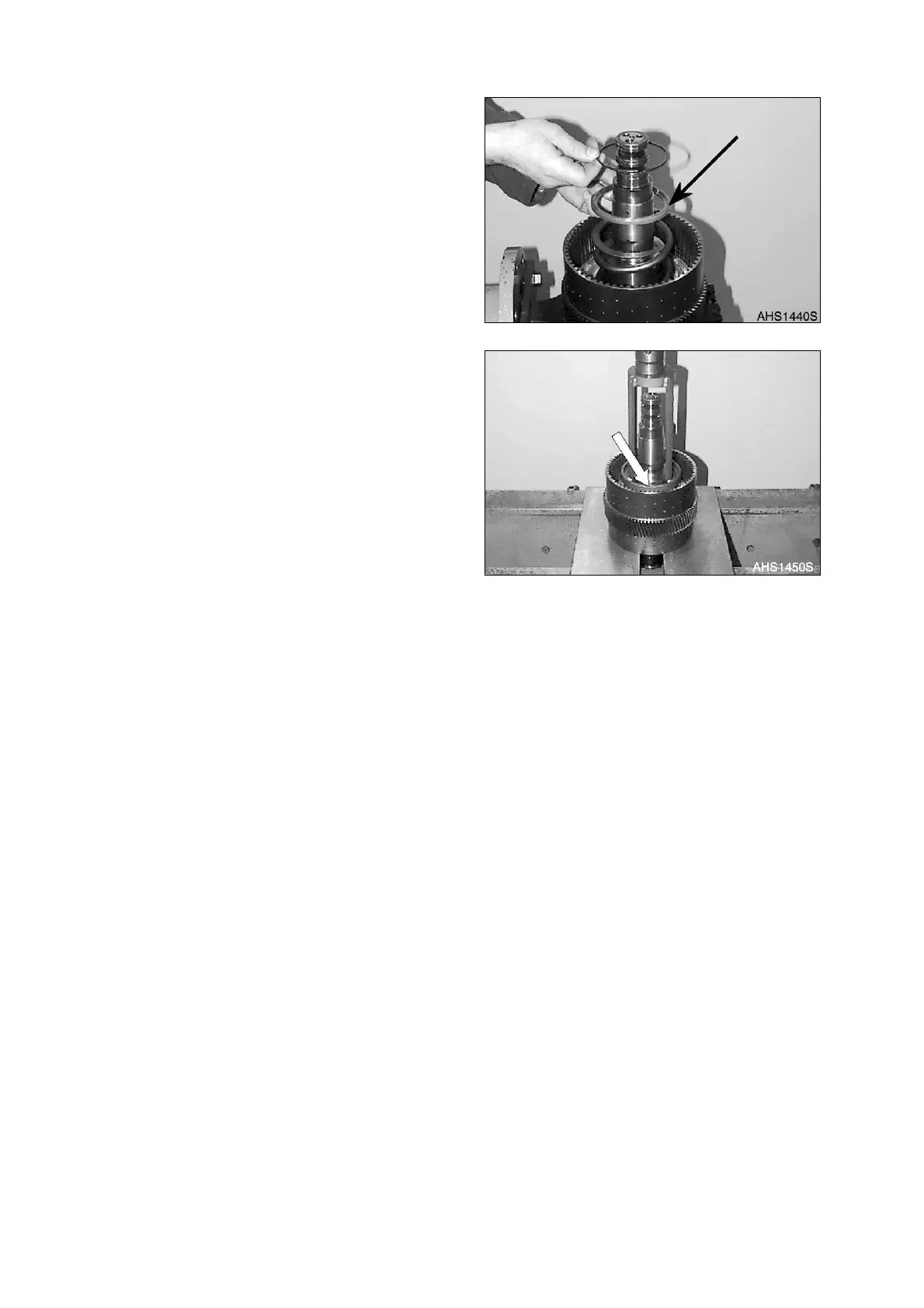

10. Lay guide ring, with the chamfer (Figure
184) facing upward, over the compression
spring and line up the snap ring.
11. Lift plate carrier out of the clamping ring.
12. Preload compression spring using Special
device (S) and squeeze snap ring into the
annular groove of the plate carrier, see
Figure 186.
13. Install purge valve, spool and compression
spring on the opposite side (Clutch K4)
accordingly, see Figure 180 - Figure 185.
14. Now, lift plate carrier, with the K4-side
facing downward, into the clamping ring
and secure it. Tilt plate carrier 180˚.
Figure 184
Figure 185
