Transmission and Torque Converter
(ZF 4WG-310)
E. Line up the determined shim (see
Figure 190 and Figure 191), with the
oil groove facing upward.
F. Introduce spur gear until all inner
plates are accommodated.
G. Heat inner bearing race (spur gear
bearing) and position it against
shoulder.
H. Heat inner bearing race (spur gear
bearing) and position it against
shoulder.
CAUTION!
Use protective gloves.
CAUTION!
Use protective gloves.

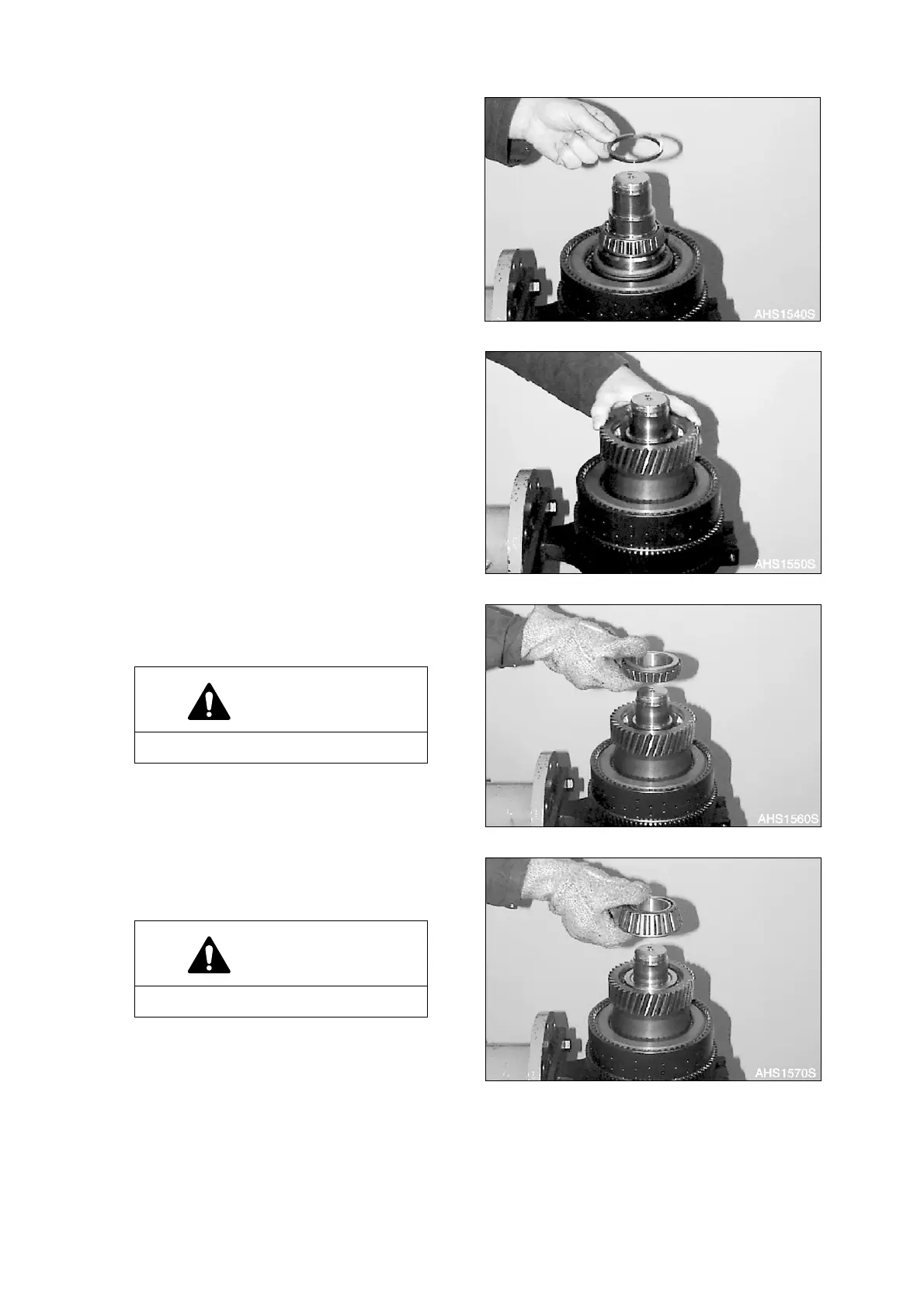

Figure 193
Figure 194
Figure 195
Figure 196
