S0607080K
Page 91
Transmission and Torque Converter
(ZF 4WG-310)
Multidisk Clutch - K3

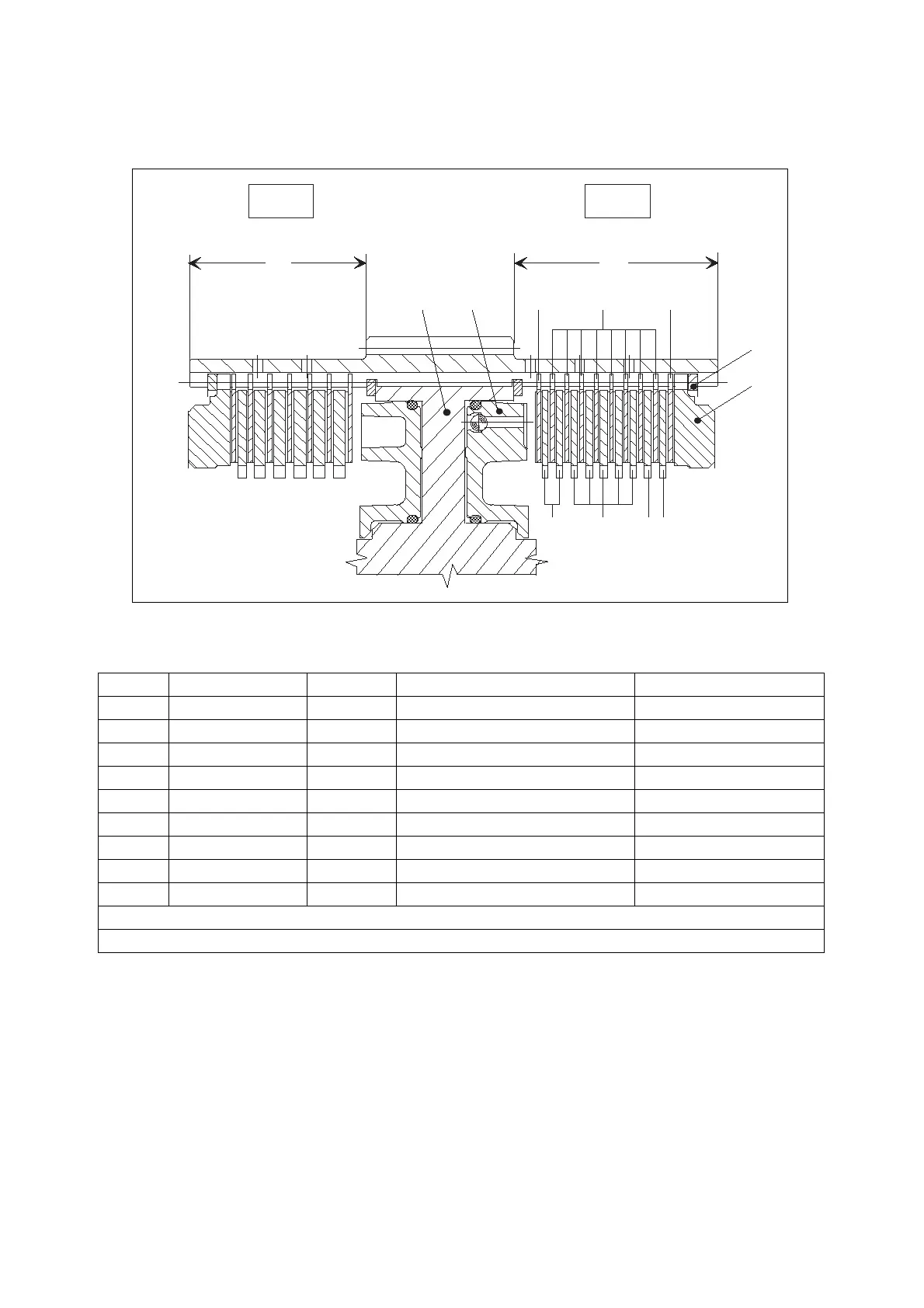

Figure 197, shows the plate stacking and the installation position of the components.
NOTE:
Install outer plates Item 3, with the uncoated side facing the piston, resp. the end shim.
The respective clutch side can be recognized by the length of the plate carrier, see Figure
197.
K4 = Dimension X (short plate-carrier side)
K3 = Dimension Y (long plate-carrier side)
Item Denomination Quantity s (mm) Comment
1 Plate Carrier 1
2 Piston 1
3 Outer Plate 2 1.85 (0.0728 in) One-side Coated
4 Outer Plate 8 2.5 (0.0984 in) Coated On Both Sides
5 Inner Plate 3 2.5 (0.0984 in)
6 Inner Plate 5 3.0 (0.1181 in)
7 Inner Plate 1 2.5 - 4.0 (0.0984 - 0.1575 in) Optional
8 Snap Ring 1 2.55 - 3.10 (0.1004 - 0.1220 in) Optional
9 End Shim 1
Number of friction surfaces: 18
Plate clearance: 2.6 - 2.8 mm (0.1024 - 0.1102 in)
33
4
56
1
2
X
Y
K4
K3
75
8
9
AHS1470S
Figure 197
