Transmission and Torque Converter
(ZF 4WG-310)
1. Check plate clearance K3 = 2.6 - 2.8 mm
(Figure 198 - Figure 200).
NOTE:
To ensure a faultless measuring
result, install the plates for the
present without oil.
A. Install the plate pack according to
Figure 197.
B. Introduce the end shim and secure it
using snap ring.
C. Press the end shim on with about
100 N (10 kg) and set the dial
indicator to "Zero" (Figure 200).
D. Now, press the end shim against the
snap ring (upward), and read the
plate clearance on the dial indicator.
E. After the performed adjustment of the
plate clearance, disassemble the
plate pack, oil plates according to ZF-
List of lubricants TE-ML 03 and
install them again.
IMPORTANT
In case of a deviation from the required plate clearance (2.2 - 2.4 mm (0.0866 - 0.0945 in)),
correct with corresponding inner plate Item 6 (optional s = 2.5 - 4.0 mm (0.0984 - 0.1575 in))
or and snap ring Item 7 (optional).

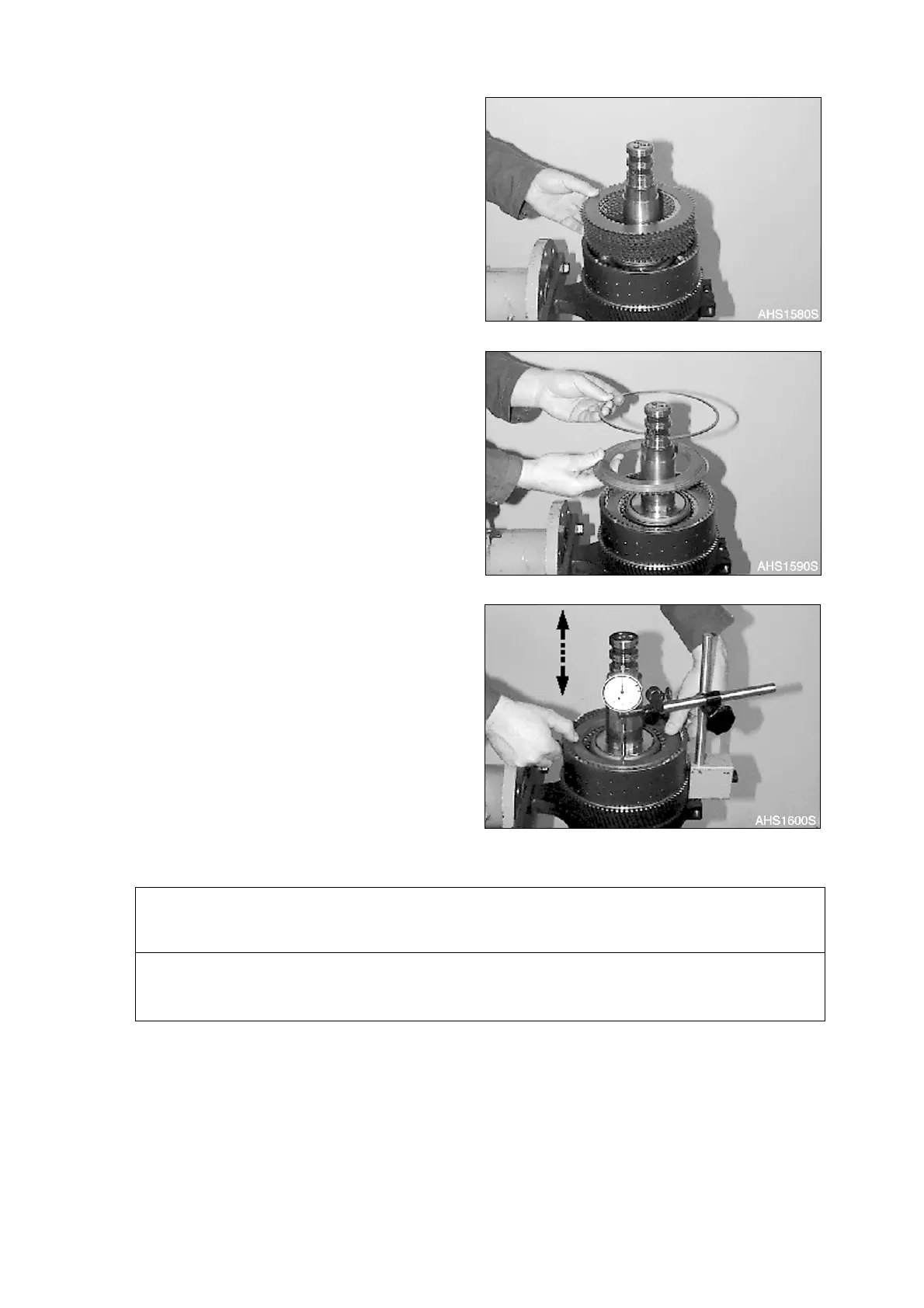

Figure 198
Figure 199
Figure 200
