S0607080K
Page 93
Transmission and Torque Converter
(ZF 4WG-310)
2. Heat inner bearing race and line it up until
contact is obtained.
3. Lift plate carrier out of the clamping ring
(S).
4. To ensure the exact contact of the
components, preload the bearing with 100
000 N (10 ton) (Figure 202).
5. Lift plate carrier, with the K4-side facing
downward, into the clamping ring (S) and
secure it.
6. Tilt plate carrier 90˚.
7. Wet thread of slotted nut with Loctite #262
and install slotted nut (Figure 203).
NOTE:
Install slotted nut, with the collar
(
∅
60 mm (2.3622 in) facing the
inner bearing race.
CAUTION!
Use protective gloves.
CAUTION!
Support on the lower and on the
upper inner bearing race.
Use pressure pieces (S).

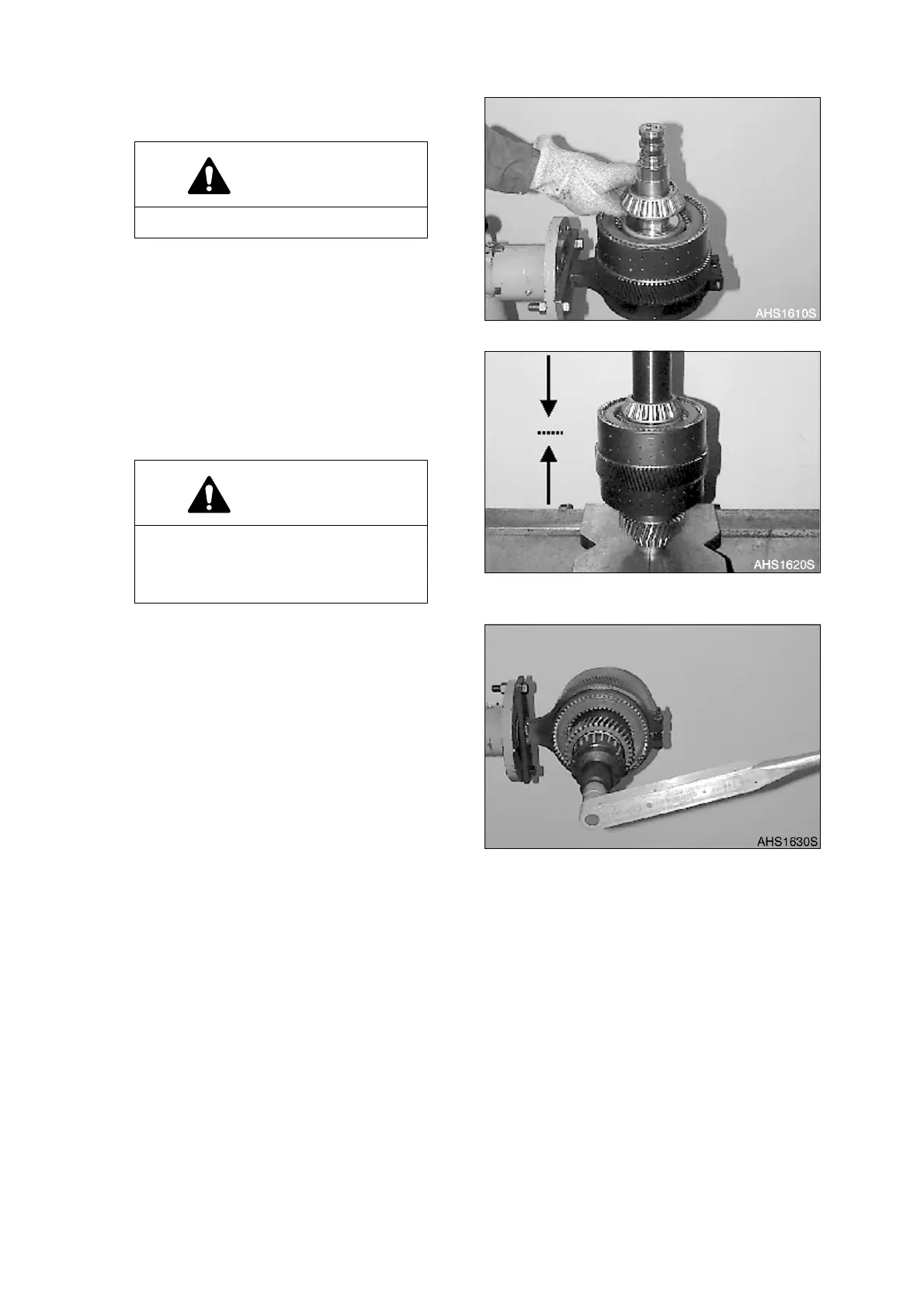

Figure 201
Figure 202
Figure 203
