S0607080K
Page 106
Transmission and Torque Converter
(ZF 4WG-310)

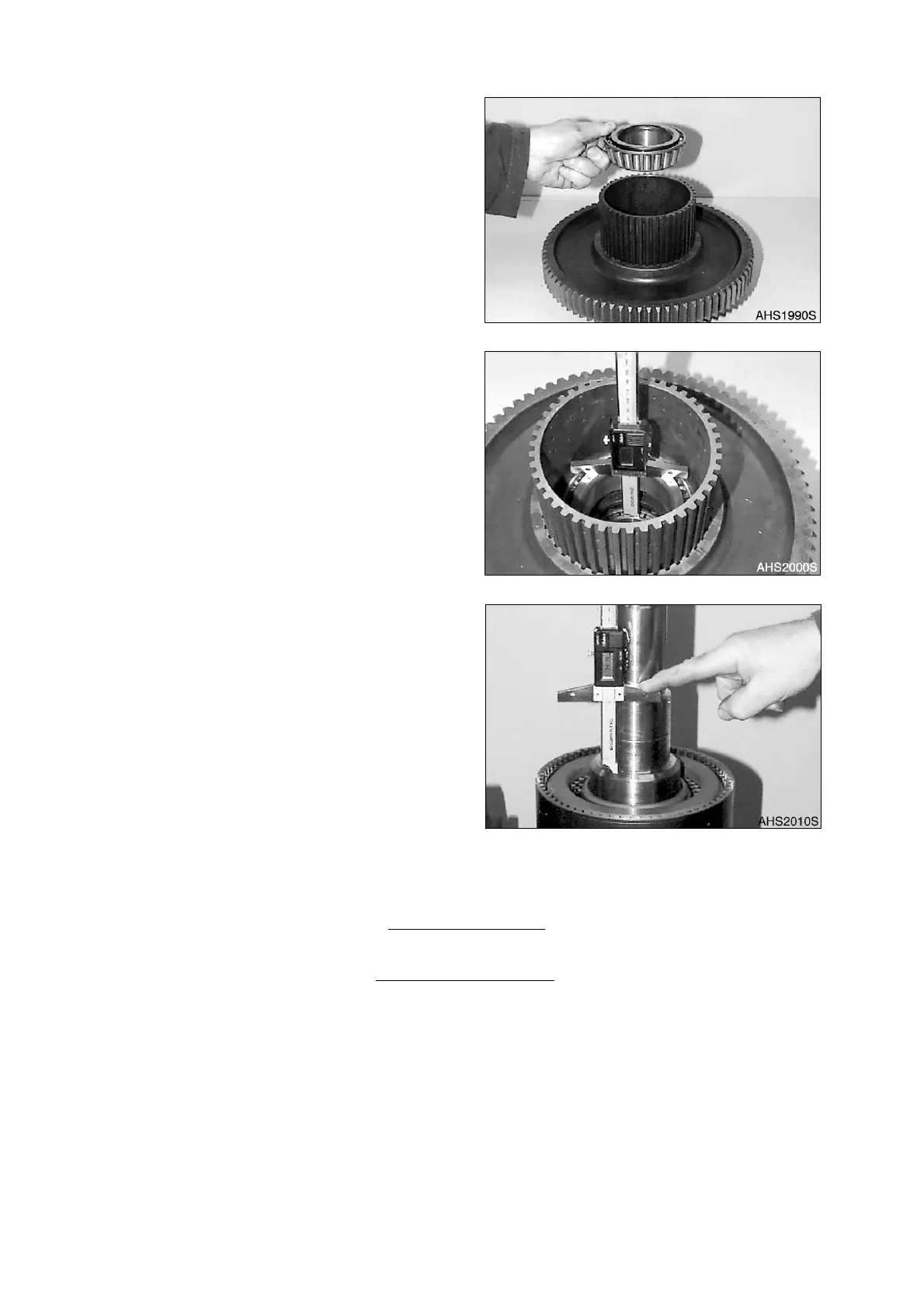

E. Introduce inner bearing race.
F. Determine Dimension I (bearing
dimension).
NOTE:
Dimension I e.g. 76.270 mm
(3.0028 in)
G. Determine Dimension II (shaft
dimension).
NOTE:
Dimension II e.g. 74.14 mm
(3.0028 in)
EXAMPLE C:
Dimension I e.g. 76.27 mm (3.0028 in)
Dimension II e.g. - 74.14 mm (2.9189 in)
Difference = 2.13 mm (0.0839 in)
Axial Play e.g. + 0.07 mm (0.0028 in)
Gives Shim = 2.20 mm (0.0866 in)
Figure 239
Figure 240
Figure 241
