Daewoo Mega 500-V - Page 359

S0607080K
Page 108
Transmission and Torque Converter
(ZF 4WG-310)

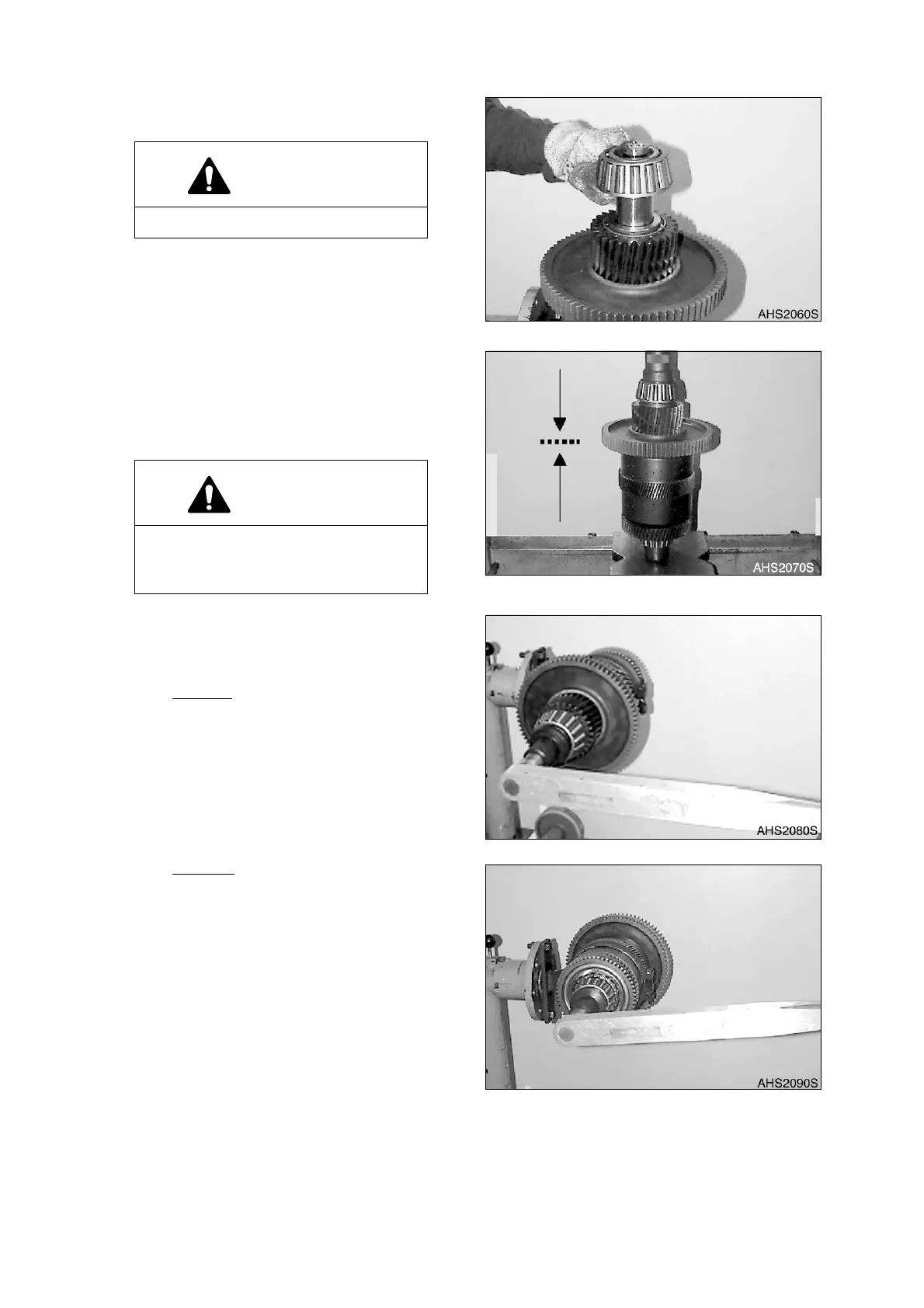

7. Heat inner bearing race (clutch bearing)
and position it against shoulder.
8. Lift plate carrier out of the clamping ring
(S).
9. To ensure the exact contact of the
components, preload bearing with 100 000
N (10 ton) (Figure 247).
10. Lift plate carrier into the clamping ring (S)
and secure it.
A. Tilt clutch 90˚.
B. K2-Side: Wet thread of slotted nut
with Loctite #262 and install it (Figure
317).
NOTE:
Install slotted nut with the
chamfer facing the inner
bearing race.
NOTE: Torque limit 800 Nm (590 ft lb).
C. KR-Side: Wet thread of slotted nut
with Loctite #262 and install it.
NOTE: Install slotted nut, with the collar
( ∅ 70 mm (2.7560 in)) facing
the inner bearing race.
NOTE: Torque limit 800 Nm (590 ft lb).
CAUTION!
Use protective gloves.
CAUTION!
Support on the lower and on the
upper bearing race. Use pressure
pieces (S).
Figure 246
Figure 247
Figure 248
Figure 249
