Transmission and Torque Converter
(ZF 4WG-310)
D. Press ball bearing in until contact is
obtained.
NOTE:
Install ball bearing, with the
lubricating groove (Arrow)
facing downward. Apply the
pressing-in tool only on the
outer bearing race.
E. Heat ball bearing and line it up until
contact is obtained.
NOTE:
Lubricating groove (Arrow)
must face upward.
F. Line up the bush.
G. Heat spur gear about 120˚C (248˚F)
and introduce it until all inner plates
are accommodated.
CAUTION!
Use protective gloves.
CAUTION!
Use protective gloves.

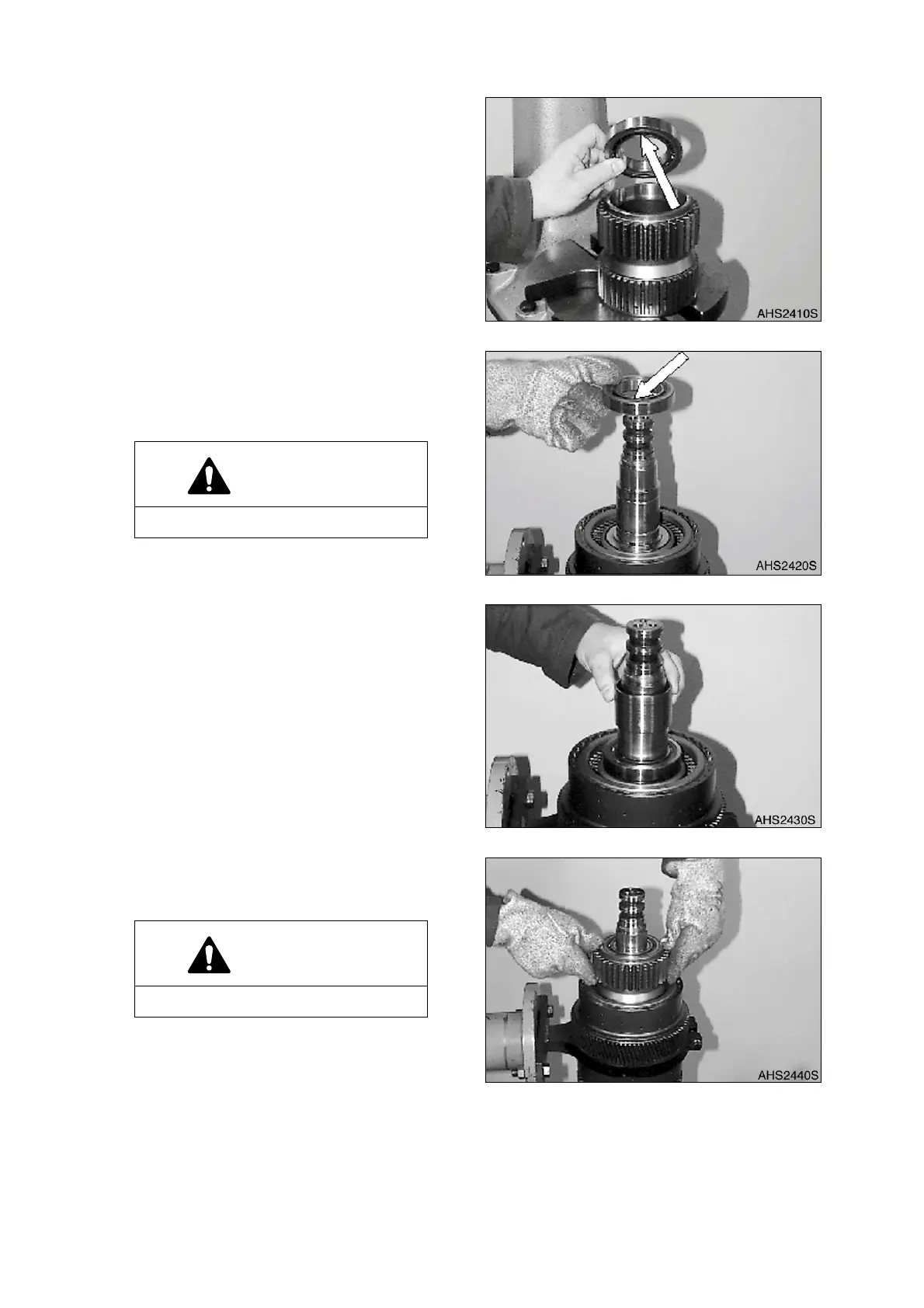

Figure 281
Figure 282
Figure 283
Figure 284
