Transmission and Torque Converter
(ZF 4WG-310)
NOTE:
Line up shim = 1.2 mm (0.0472
in).
3. Heat inner bearing race and line it up until
contact is obtained.
4. Lift plate carrier out of the clamping ring
(S). To ensure the exact contact of the
components, preload bearing with 100 000
N (10 ton) (Figure 287).
5. Lift plate carrier into the clamping ring (S),
secure and tilt it 90˚. Wet thread of slotted
nut with Loctite #262 and install slotted
nut.
NOTE:
Install slotted nut, with the collar
facing the inner bearing race.
NOTE:
Torque limit 550 Nm (405 ft lb).
6. Install opposite slotted nut (KV-side)
accordingly.
CAUTION!
Use protective gloves.
CAUTION!
Support on the lower and on the
upper inner bearing race. Use
pressure pieces (S).

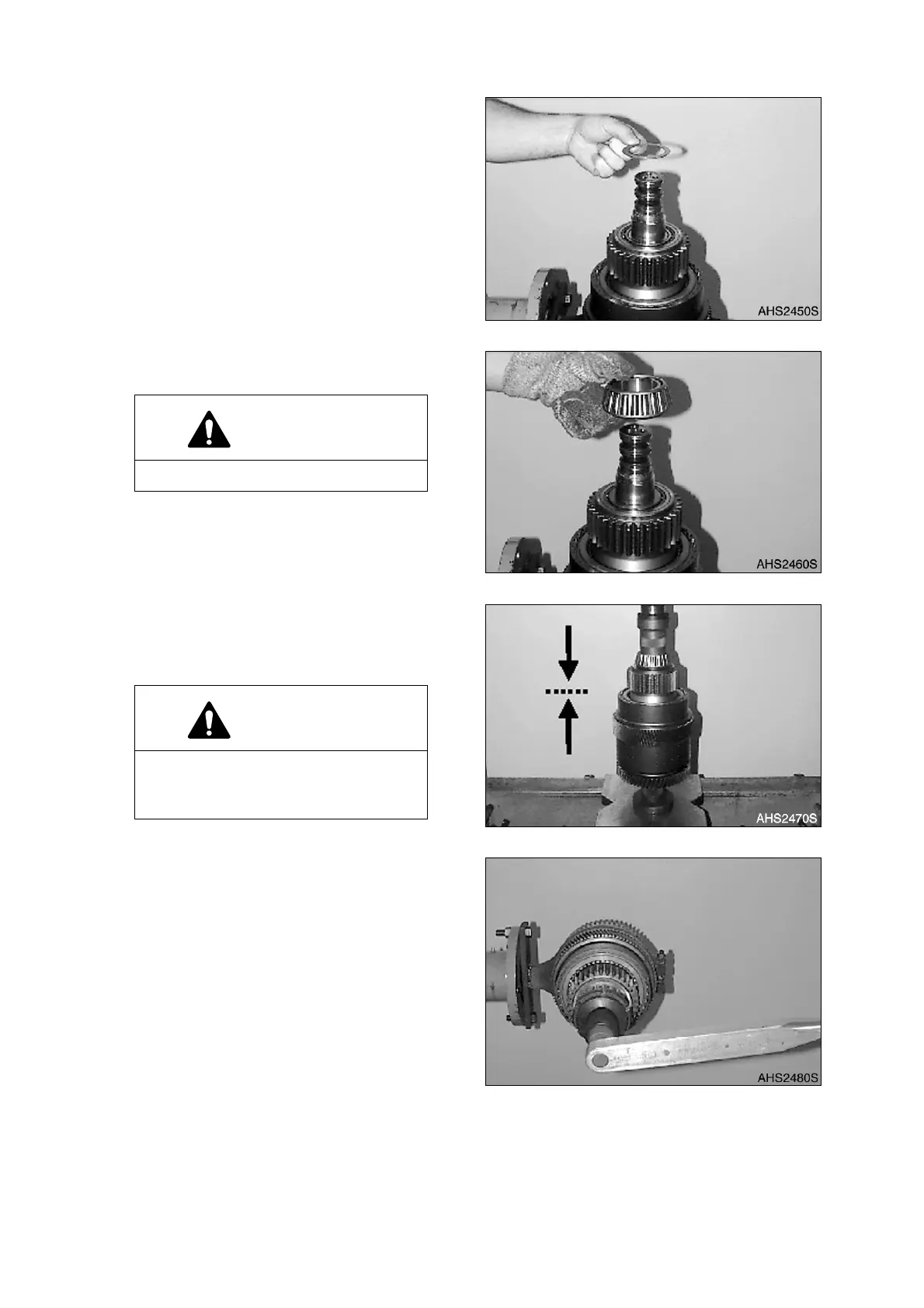

Figure 285
Figure 286
Figure 287
Figure 288
