Daewoo Mega 500-V - Page 388

S0607080K
Page 137
Transmission and Torque Converter
(ZF 4WG-310)

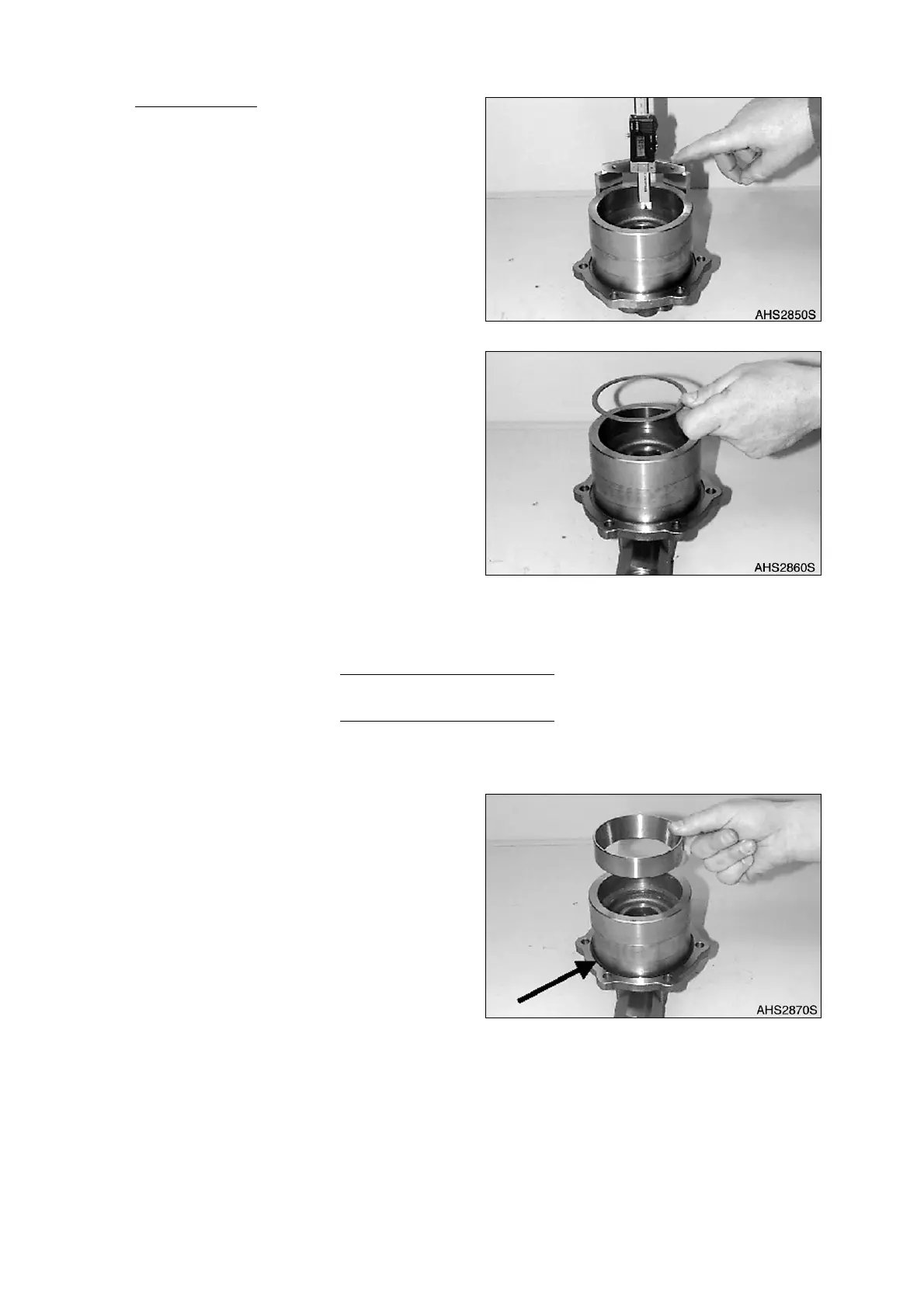

Cover dimension: Determine Dimension II
from the mounting face to the ring.
NOTE: Dimension II e.g. 50.75 mm
(1.9980 in).
C. Insert shim.
EXAMPLE H:
30. Insert outer bearing race until contact is
obtained.
31. Line up O-ring (Figure 339).
Dimension I 52.67 mm (2.0736 in)
Dimension II - 50.75 mm (1.9980 in)
Difference 1.92 mm (0.0076 in)
Bearing Preload e.g. + 0.18 mm (0.0071 in)
Gives Shim (s) s = 2.10 mm (0.0827 in)
Figure 337
Figure 338
Figure 339
