Transmission and Torque Converter
(ZF 4WG-310)
28. Pull bearing cover uniformly against
shoulder.
NOTE: Torque limit (M10/8.8) 46 Nm
(34 ft lb).
NOTE: Pay attention to the radial
installation position, see
markings (Figure 334).
29. Adjust Bearing preload of the Clutch KV/
K1= 0.15 - 0.20 mm (0.0059 - 0.0079 in)
(Figure 335 - Figure 338).
A. Lay outer bearing race over the inner
bearing race.
Housing dimension: Press the outer
bearing race uniformly on, and determine
Dimension I from the mounting face to the
outer bearing race.
NOTE: Dimension I e.g. 52.67 mm
(2.0736 in).
NOTE: Apply several measuring points
and determine the average
value.
B. Insert ring, with the chamfer facing
downward, into the bearing cover.

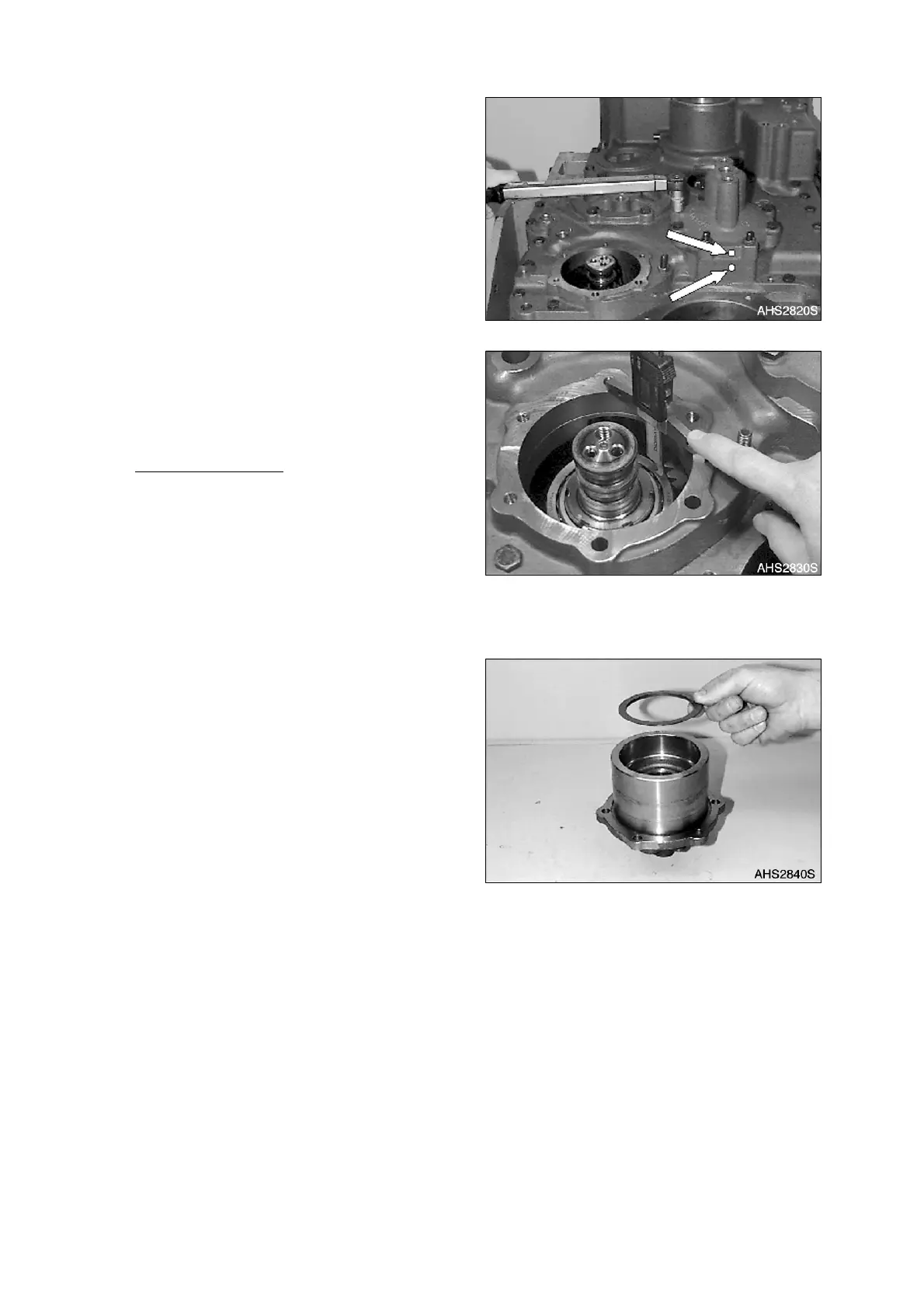

Figure 334
Figure 335
Figure 336
