S0607080K
Page 135

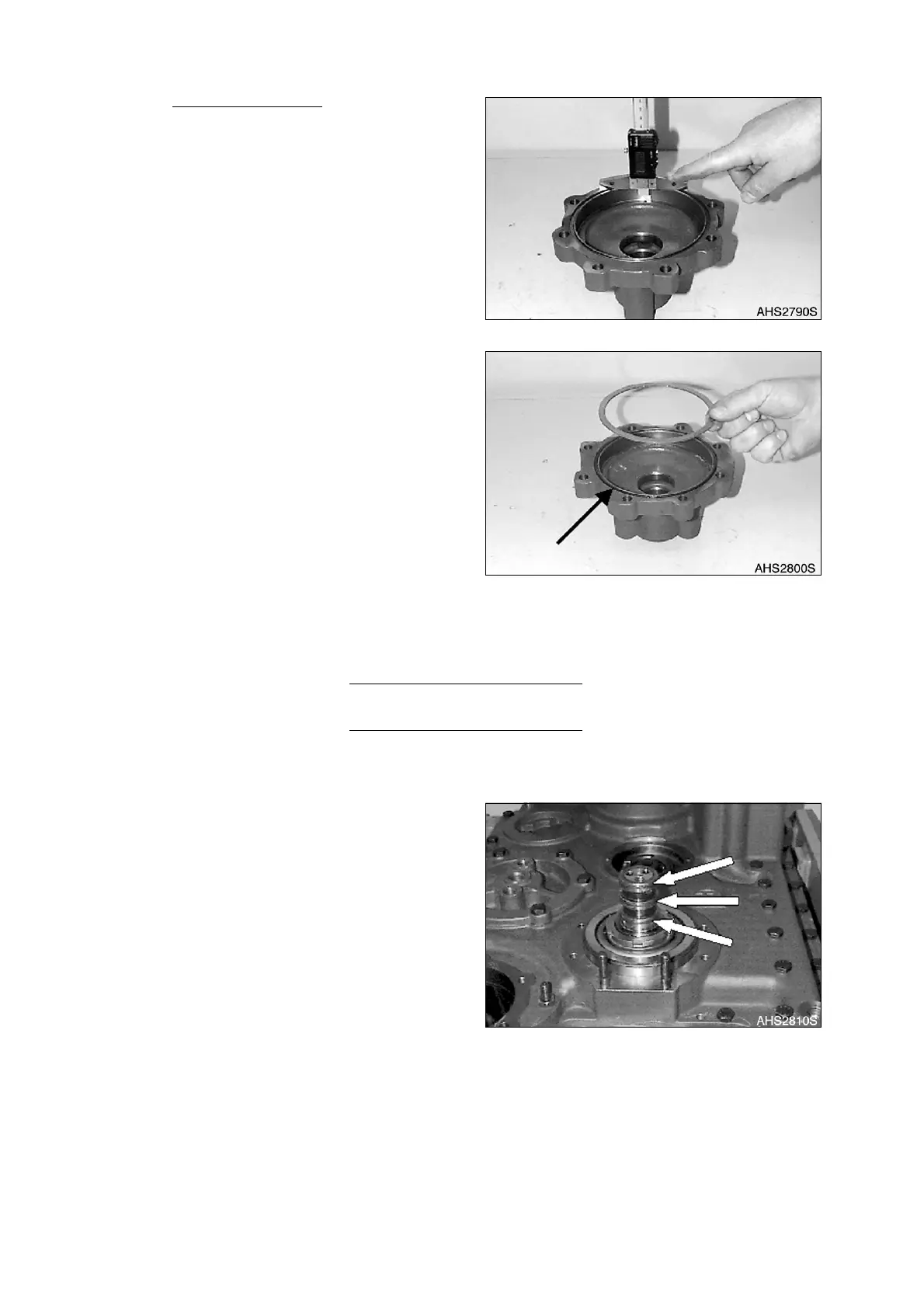

Transmission and Torque Converter
(ZF 4WG-310)
Cover dimension: Determine
Dimension II from the contact/outer
bearing race to the mounting face.
NOTE:
Dimension II e.g. 17.46 mm
(0.6874 in).
B. Make shim adhere with assembly
grease in the cover. Install O-ring
(Arrow).
EXAMPLE G:
27. Grease and align rectangular rings (Figure
333) centrically.
Dimension I e.g. 17.46 mm (0.6874 in)
Dimension II e.g. - 15.68 mm (0.6173 in)
Difference = 1.78 mm (0.0701 in)
Bearing Preload e.g. + 0.22 mm (0.0079 in)
Gives Shim (s) s = 2.00 mm (0.0787 in)
Figure 331
Figure 332
Figure 333
