S0607080K
Page 145
Transmission and Torque Converter
(ZF 4WG-310)

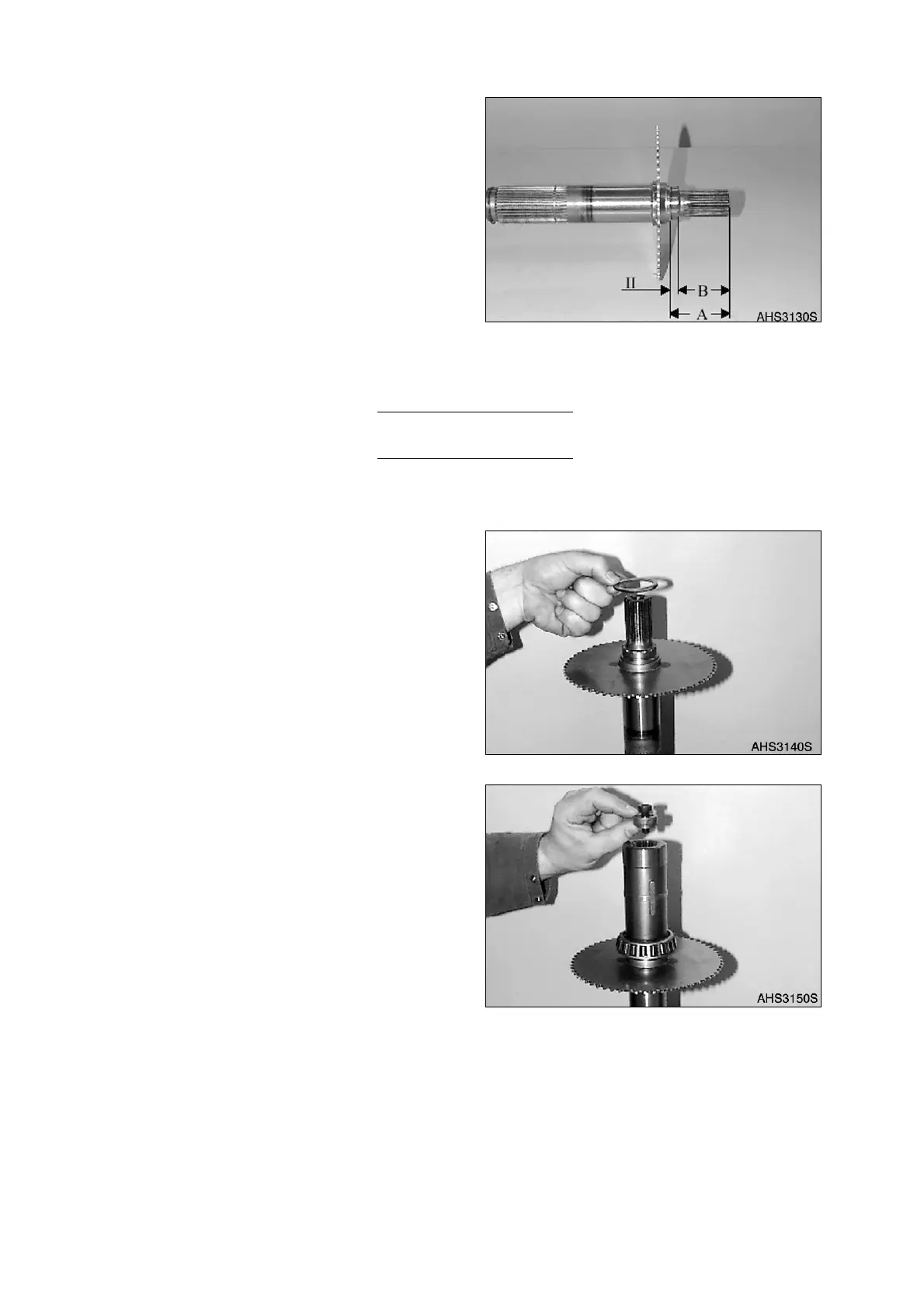

C. Determine Dimension II (A – B).
NOTE:
Dimension II e.g. 10.64 mm
(0.4189 in).
EXAMPLE J:
D. Line up shim(s).
4. Position driver against shoulder and
secure it using clamping disk and socket
head screw.
NOTE:
Torque limit (M10/8.8, DIN
6912) 32 Nm (24 ft lb).
Dimension II 10.64 mm (0.4189 in)
Dimension I - 9.64 mm (0.3795 in)
Difference = 1.00 mm (0.0394 in)
Required Gap Dimension + 0.50 mm (0.0197 in)
Gives Shim (s) = 1.50 mm (0.0591 in)
Figure 365
Figure 366
Figure 367
