S0607080K
Page 146
Transmission and Torque Converter
(ZF 4WG-310)

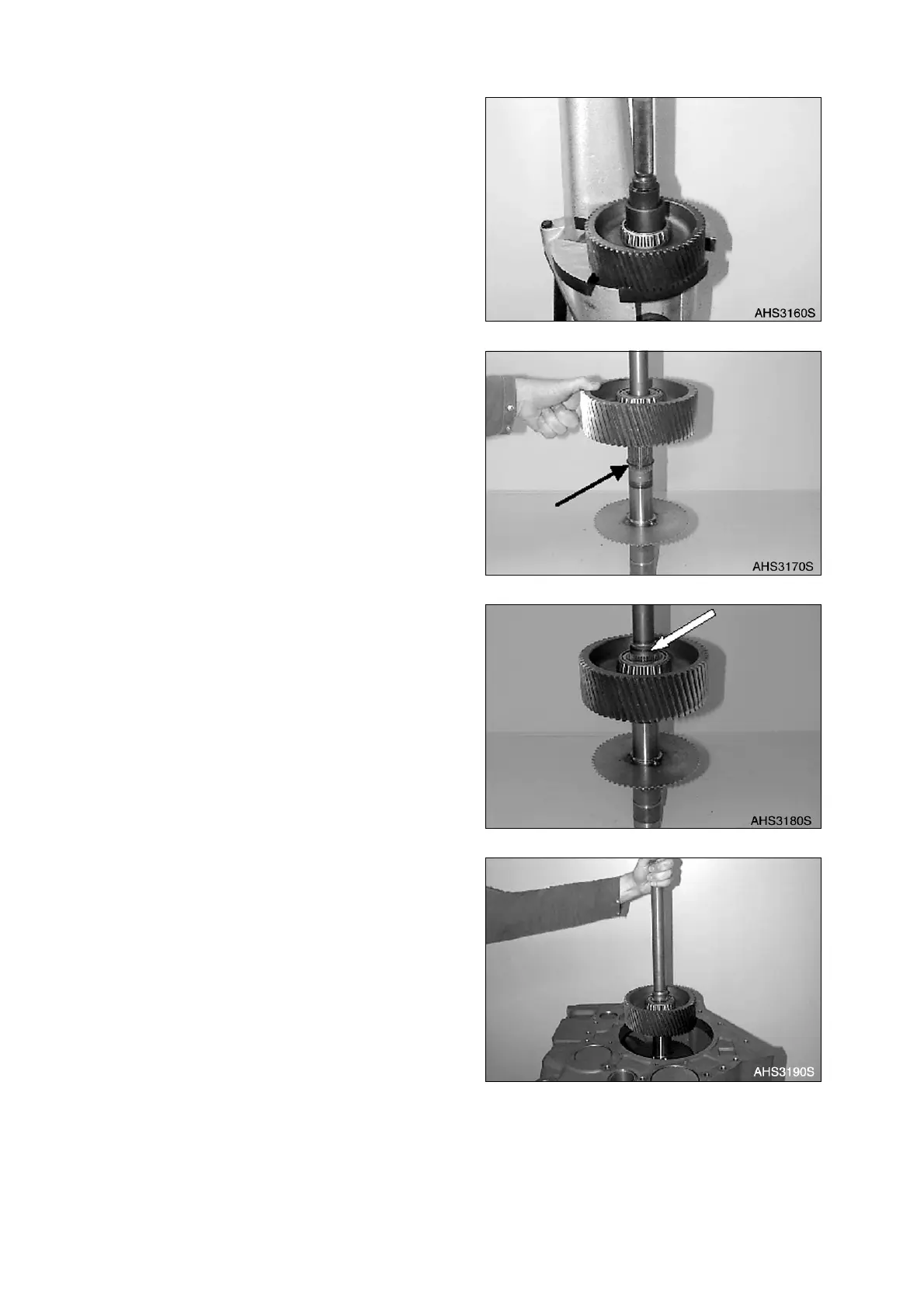

5. Press inner bearing race against shoulder.
6. Squeeze circlip in (Figure 369) and line up
the drive gear.
7. Squeeze circlip in (Figure 370) and
engage it.
8. Introduce pre-assembled input shaft until
contact is obtained.
NOTE:
Pay attention to the overlapping
of the fitting key with the fitting
key groove.
Figure 368
Figure 369
Figure 370
Figure 371
