S0607080K
Page 159
Transmission and Torque Converter
(ZF 4WG-310)

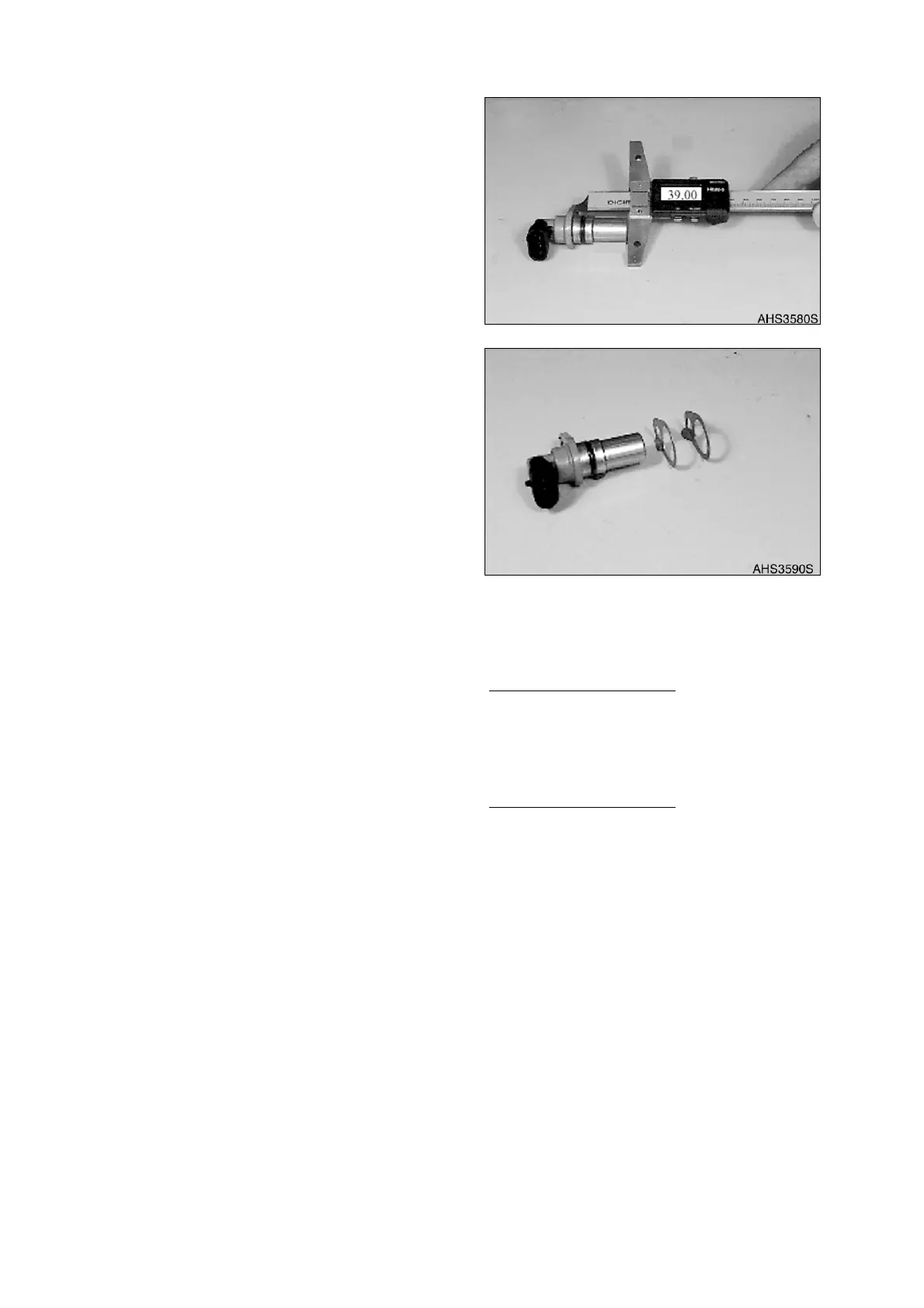

C. Measure Dimension II from the
contact face to the mounting face.
NOTE:
Dimension II e.g. 39.00 mm
(1.5354 in).
D. Line up setting plates (2x, s = 0.5 mm
(0.0197 in)) and grease O-ring.
EXAMPLE N1:
EXAMPLE N2:
Dimension I e.g. 39.20 mm (1.5433 in)
Dimension X (1.0
+ 0.3
mm (0.0394
+ 0.0118
in) e.g. - 1.20 mm (0.0472 in)
Gives Adjusting Disk (s) = 38.00 mm (1.4961 in)
Dimension I e.g. 39.00 mm (1.5354 in)
Installation Dimension A e.g. - 38.00 mm (1.4961 in)
Gives Setting Plate (s) = 1.00 mm (0.0394 in)
Figure 413
Figure 414
