S0705010
Page 21
Cylinders
Return to Master Table of Contents

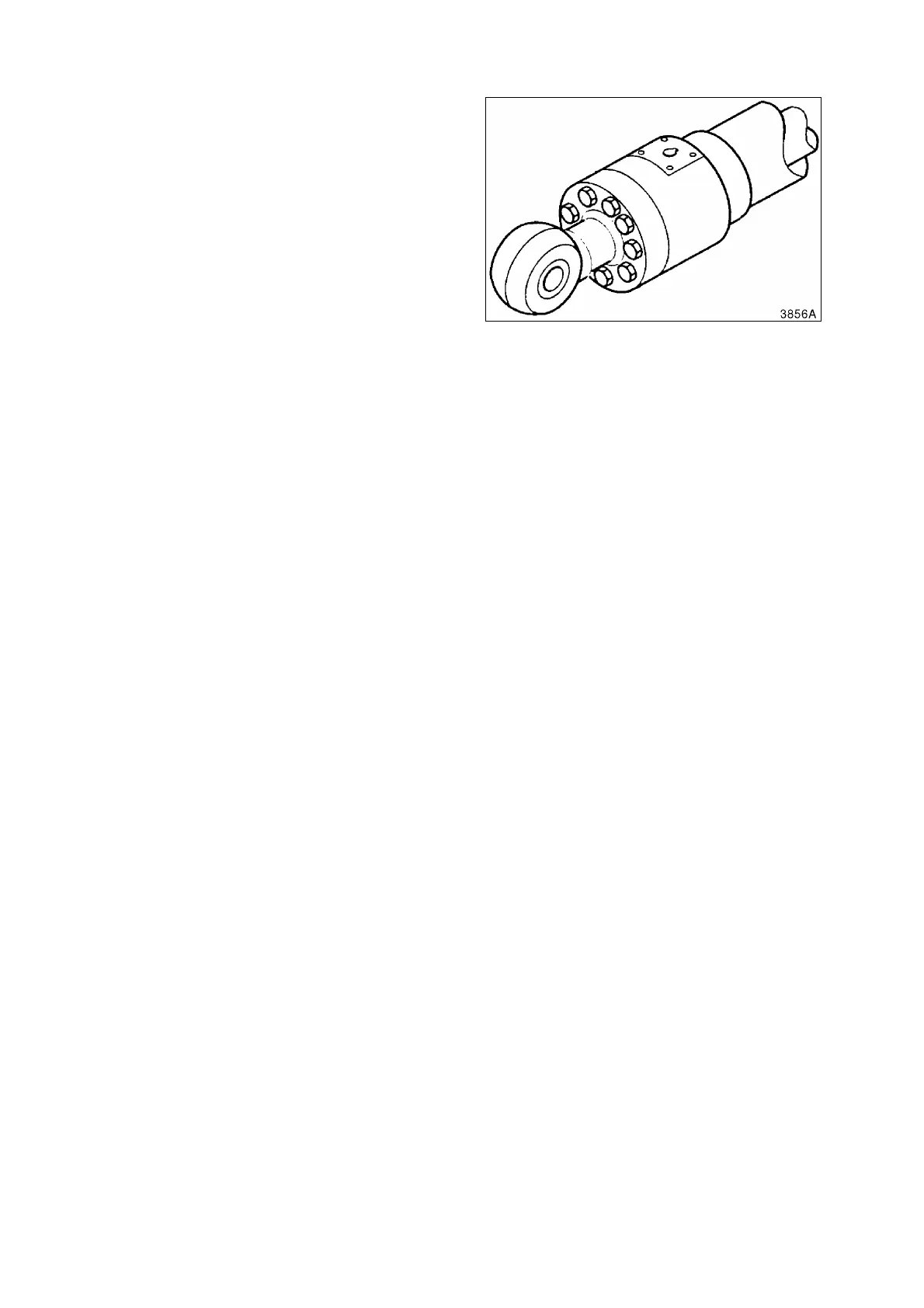

22. Install bolts in cylinder head and tighten
them to torque specified in bolt torque
chart. See Figure 36. Double check to
make sure that hole in cylinder head is
align with port in cylinder tube.
NOTE:
After rebuilding a cylinder, or
after loosening a cylinder
hydraulic line, air must be bled
from hydraulic system. To bleed
air from system, first extend
and retract a cylinder (or pair of
cylinders) about 5 times at low
engine rpm. Stop cylinder about
100 mm (4 in) short of full
extension and full retraction.
Then fully extend and retract
cylinder about 5 times, also at
low engine rpm.
Figure 36
