S0705010
Page 20
Cylinders
Return to Master Table of Contents

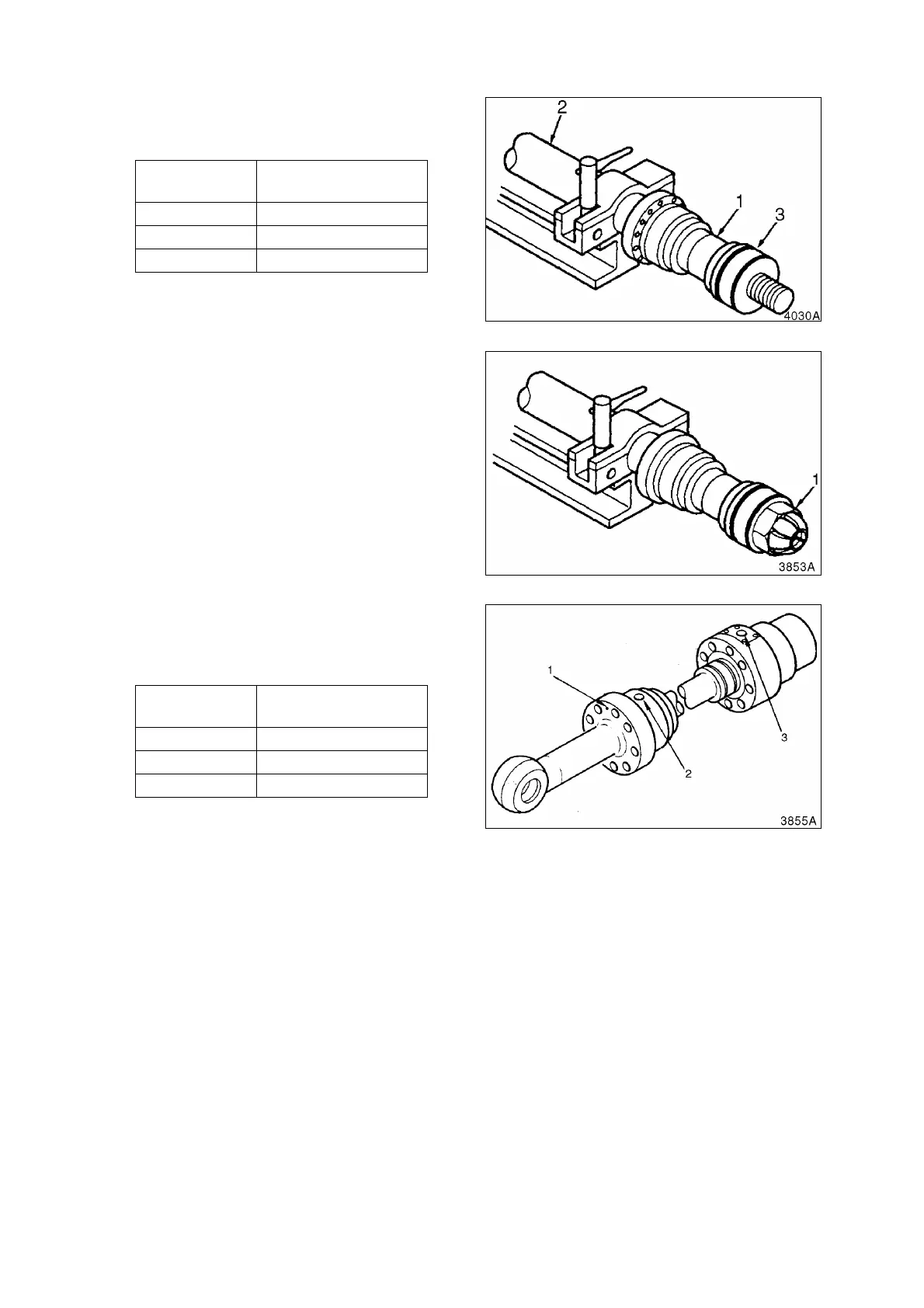

19. Install cushion flange (1, Figure 33) on
cylinder rod (2). Slide piston assembly (3)
onto cylinder rod (2).
20. Install piston nut (1, Figure 34) and tighten
it with an impact wrench. Then use a
torque wrench to tighten nut (1) to
specified torque.
After nut has been tightened, check to see
that cushion flange moves.
21. Slide rod assembly into cylinder tube.
Align punch mark (1, Figure 35) with port
(2) in cylinder tube. This will align hole (3)
in cylinder head with port (2).
Reference
Number
Description
1 Cushion Flange
2 Cylinder Rod
3 Piston Assembly
Reference
Number
Description
1 Punch Mark
2 Port
3 Hole
Figure 33
Figure 34
Figure 35
