S0705010
Page 19
Cylinders
Return to Master Table of Contents

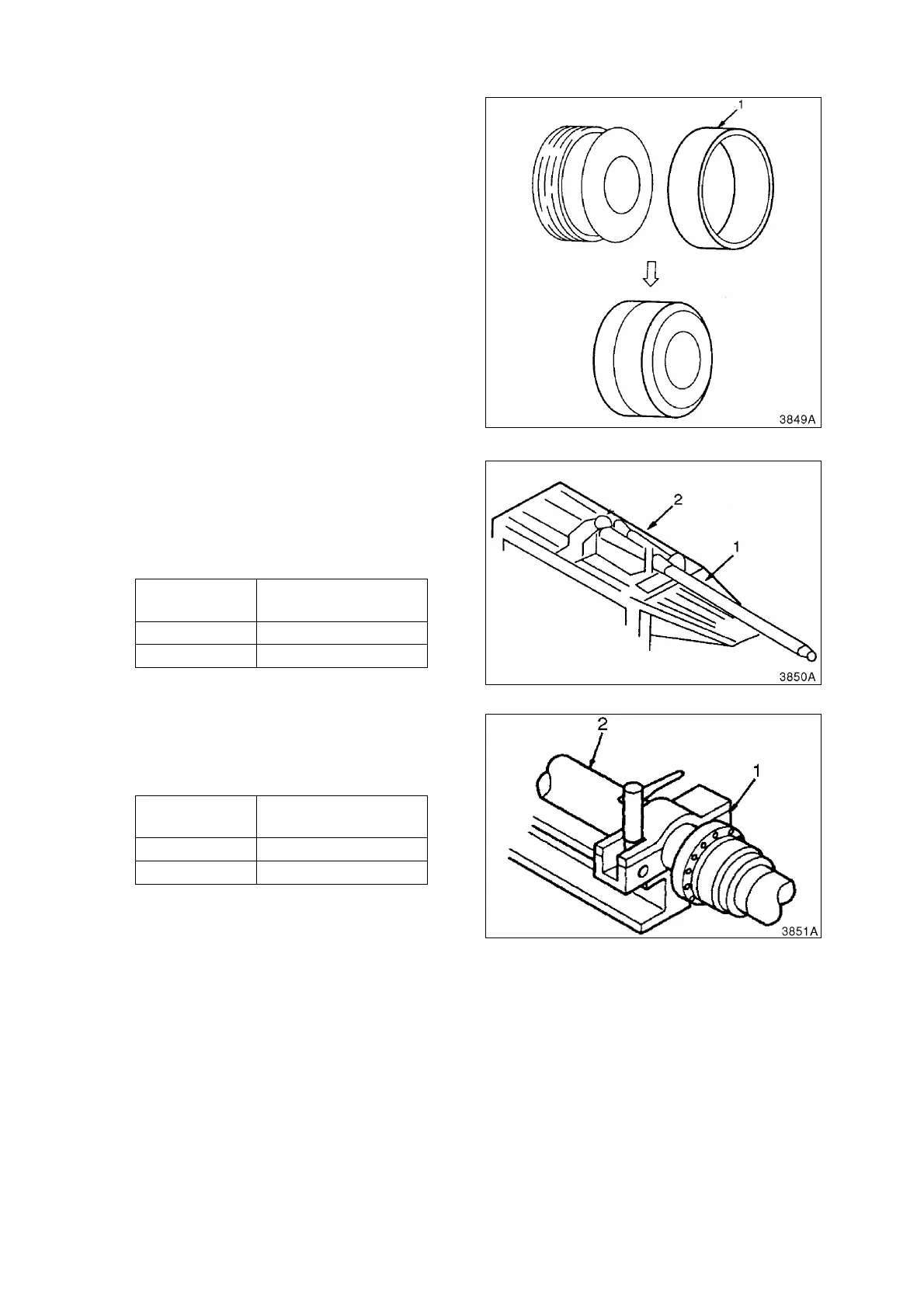

16. Install wear ring (1, Figure 30) on piston.
17. Set cylinder rod (1, Figure 31) into a repair
fixture (2). Securely clamp rod to fixture.
Exercise caution to prevent nicks or
scratches to chrome plated areas of rod.
chrome plated area is oil sealing surface of
rod.
18. Slide cylinder head assembly (1, Figure
32) onto cylinder rod (2). Use caution to
prevent threads on rod from damaging
seal inside cylinder head.
Reference
Number
Description
1 Cylinder Rod
2 Repair Fixture
Reference
Number
Description
1 Cylinder Head
2 Cylinder Rod
Figure 30
Figure 31
Figure 32
