S0705010
Page 18
Cylinders
Return to Master Table of Contents

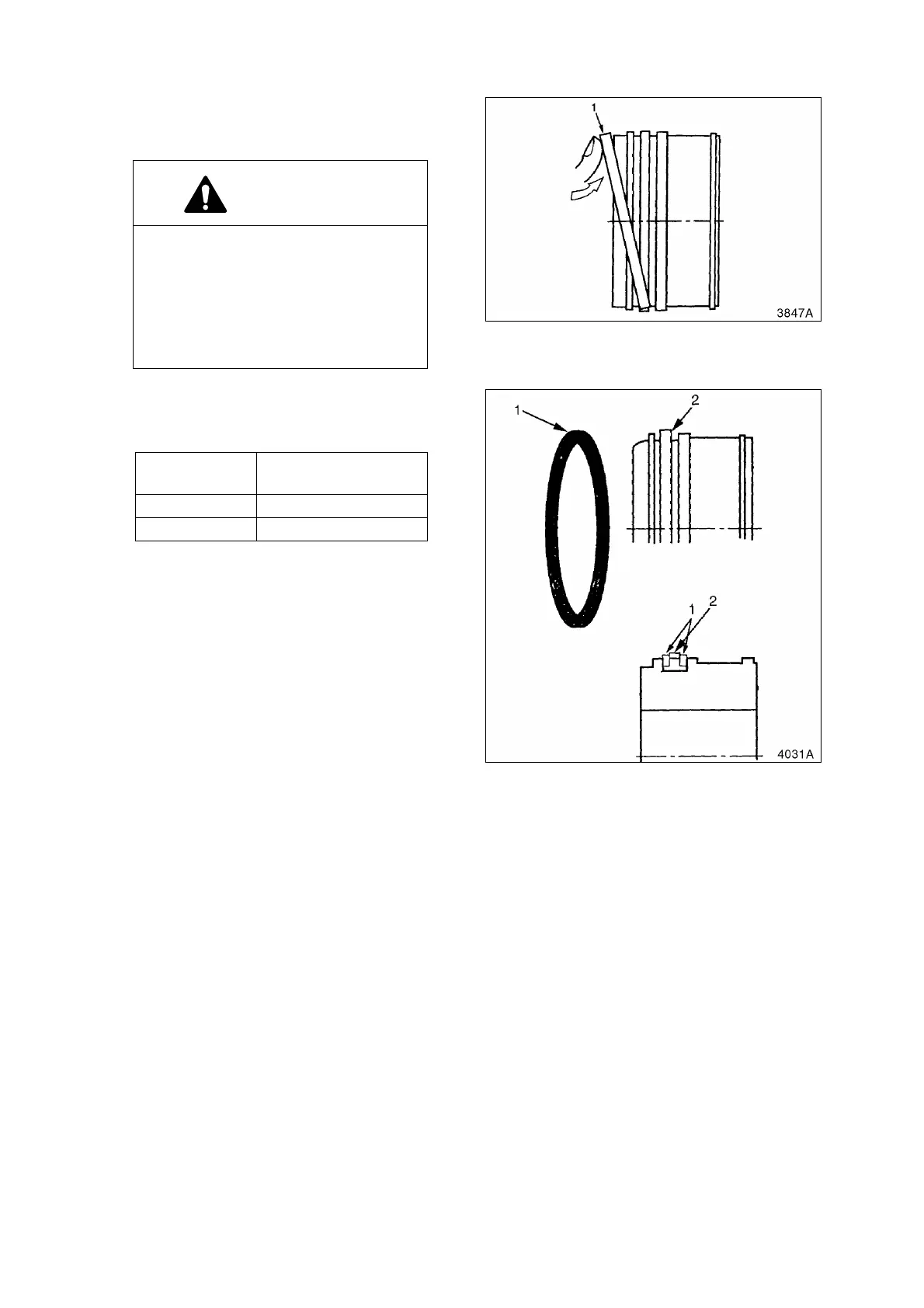

14. Insert one end of slipper seal, (1, Figure
28) into its groove. Use your hand to slide
other end of slipper seal into groove.
15. Install two backup rings, (1, Figure 29).
One ring fits on either side of slipper seal
(2).
WARNING!
Before piston is inserted into
cylinder tube, make sure that slipper
seal is no longer expanded. If seal is
still expanded, it could catch on
threaded portion of cylinder tube. An
expanded seal could also jam inside
cylinder tube.
Reference
Number
Description
1 Backup Ring
2 Slipper Seal
Figure 28
Figure 29
