Main Pump (Denison T6DMY Series)
2. Cartridge disassembly;
A. Remove O-ring, back-up ring and
square sealing ring from outlet
support plate.
B. Scribe a line across outer surface of
cartridge kit. (See Figure 13.) Scribe
marking will provide a reference for
parts during assembly.
C. Place cartridge on a flat surface
(outlet support plate down) and
remove two socket head screws.
D. Slide inlet support plate and seal
packs off cartridge. DO NOT allow
flex side plate to slide with support
plate. (See Figure 14.)
E. Move flex side plate off center just
enough to grab edge and lift up and
away without sliding. (See Figure
15.)
WARNING!
Do not slide flex side plates
across ring and rotor. Burrs on
ring or rotor can cause deep
scratches in soft brass surface.

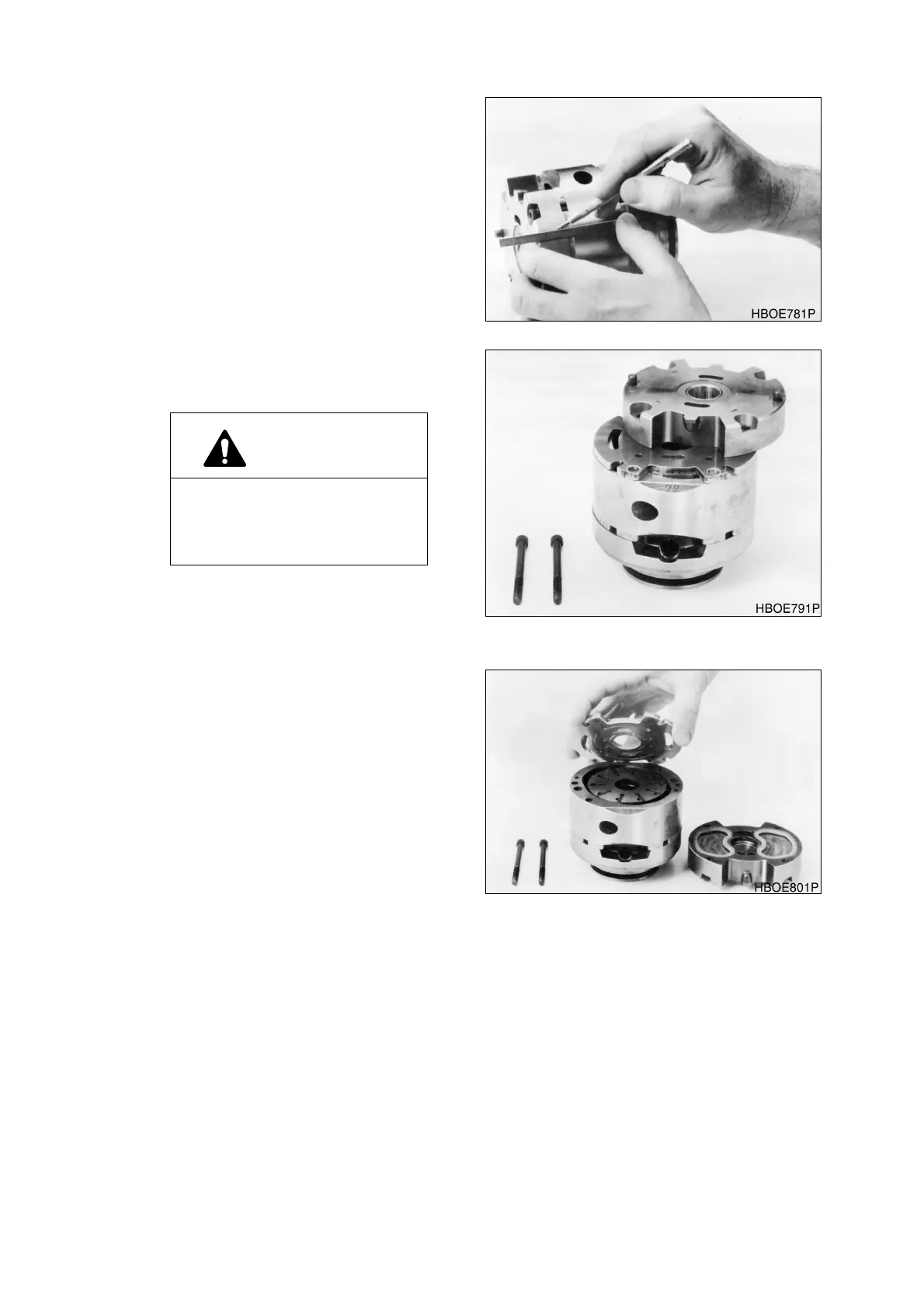

Figure 13
Figure 14
Figure 15
