Main Pump (Denison T6DMY Series)
F. If a small flat piece of wood is
available, place it over ring and rotor
and reverse cartridge to have outlet
support plate pointing up. (See
Figure 16.)
G. Slide outlet support plate and seal
packs off cartridge, do not allow flex
side plate to slide with support plate.
Refer to Figure 17.
H. Move flex side plate off center just
enough to lift up and away without
sliding. (See Figure 18.)

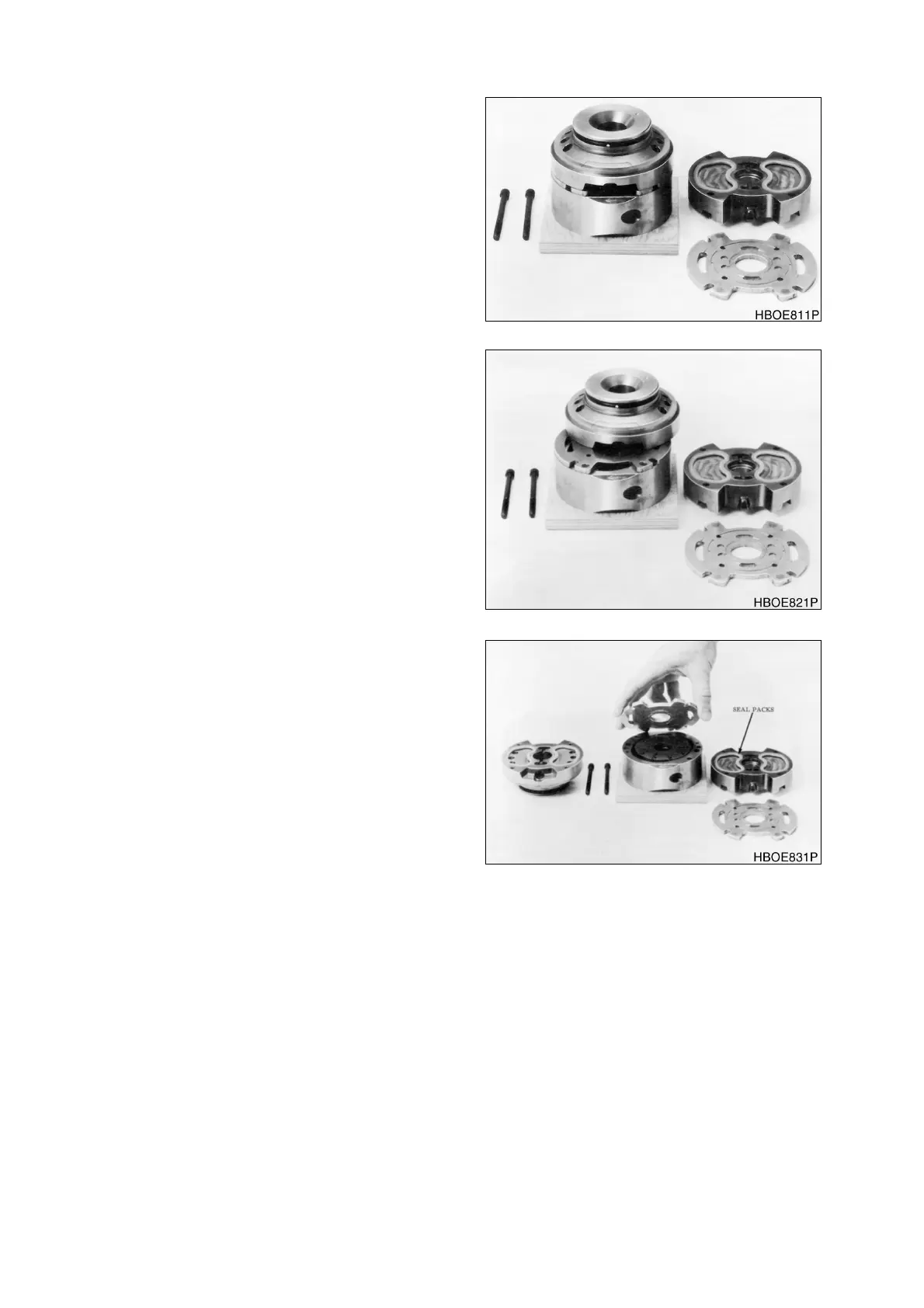

Figure 16
Figure 17
Figure 18
