S0708460K
Page 20
Main Pump (Denison T6DMY Series)

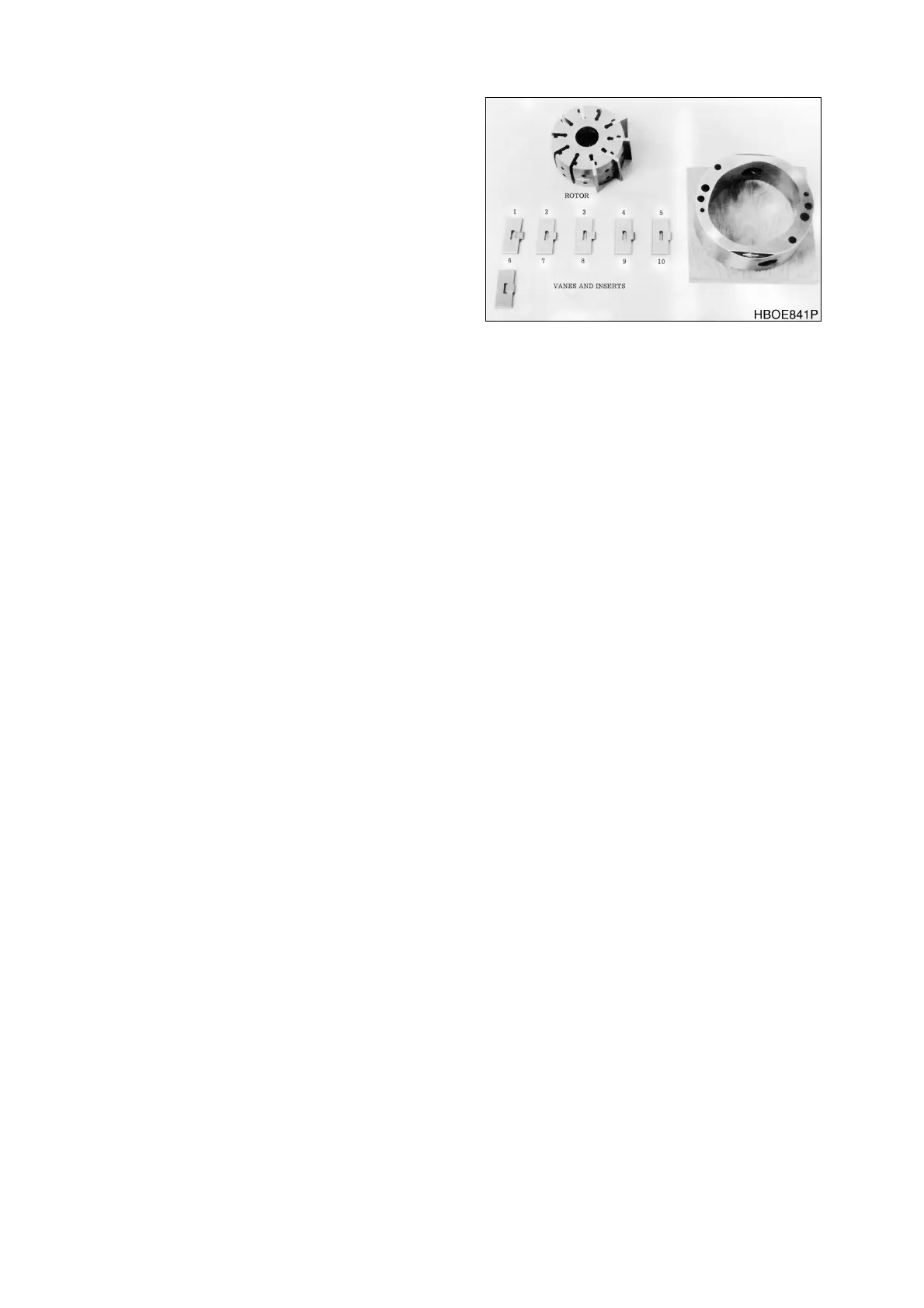

I. Remove cam ring from rotor and
vanes. Locate arrow stamped into
rotor periphery. Remove vanes and
inserts in order, starting at arrow.
Keep them in order for inspection.
(See Figure 19.)
NOTE:
Do not remove cartridge
locating pins from inlet support
plate unless they are damaged.
Pins are of a drive-loc type and
can be difficult to remove.
Figure 19
