Main Pump (Denison T6DMY Series)
E. Locate scribe mark on cam ring, outlet support plate, and flex side plate. Hold outlet support
plate and flex side plate together and assemble over cam ring and rotor with scribe marks in-
line.

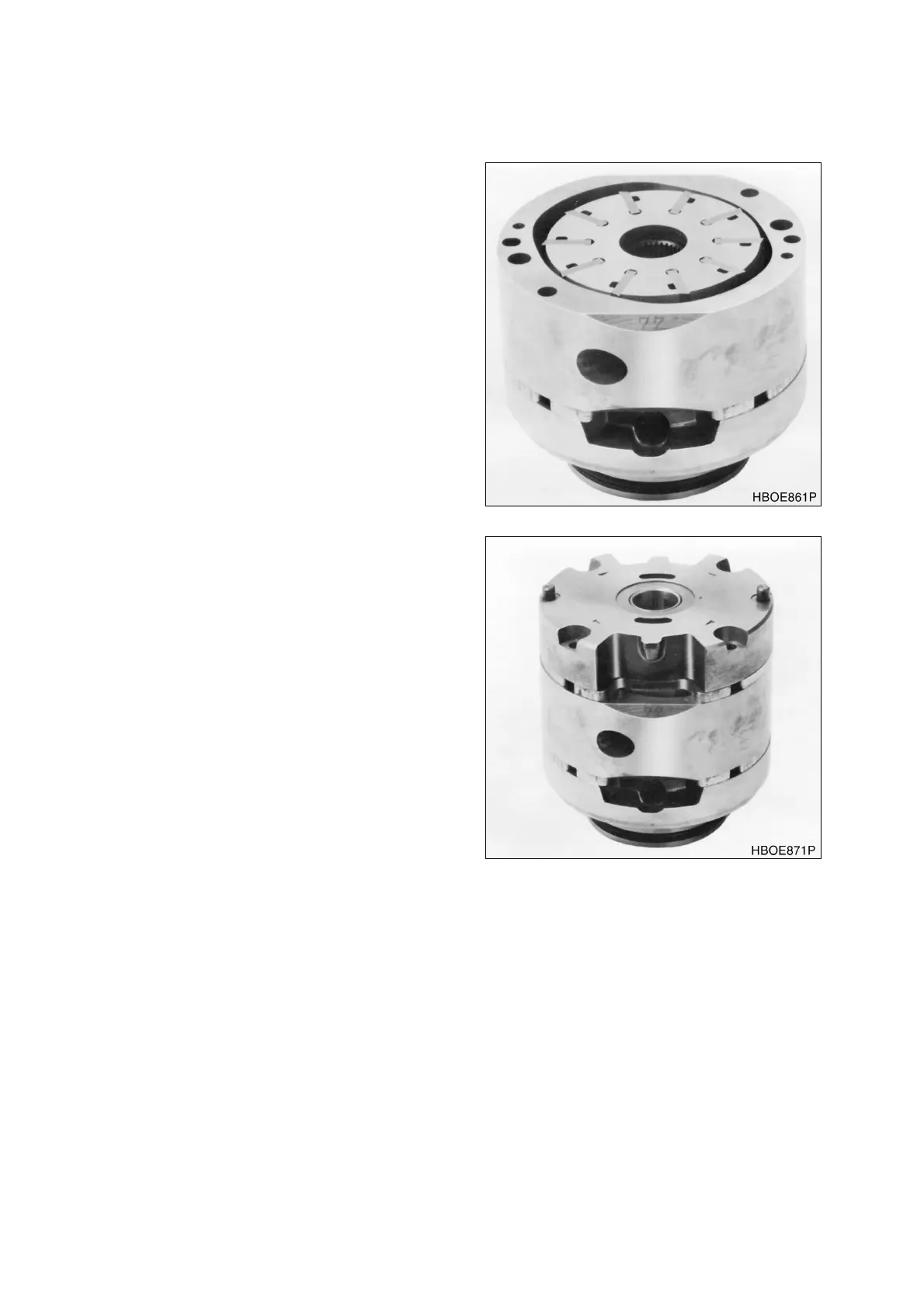

F. Hold cartridge together to prevent
movement and turn assembly over
so outlet support plate rests on a flat
surface, and flat wooden board is up.
(See Figure 22.) Remove flat wooden
board.
G. Lubricate exposed surface of rotor
and vanes with system fluid. Locate
scribe mark on inlet support plate
and flex side plate. Hold inlet support
plate and flex side plate together and
assemble over cam ring and rotor
with scribe marks in-line. (See Figure
23.)
NOTE:
The cast-in arrows next to
socket head screws, indicate
cartridge direction of rotation.
H. Thread two socket head screws into
cartridge until snug (hand tight).
NOTE:
The O.D. of all component parts
of cartridge kit must be in-line
with each other or cover cannot
be installed. Align cartridge as
follows:
Figure 22
Figure 23
To Next Page
