Daewoo Mega 500-V - Page 51

S0203070K
Page 10
Specifications for Mega 500-V

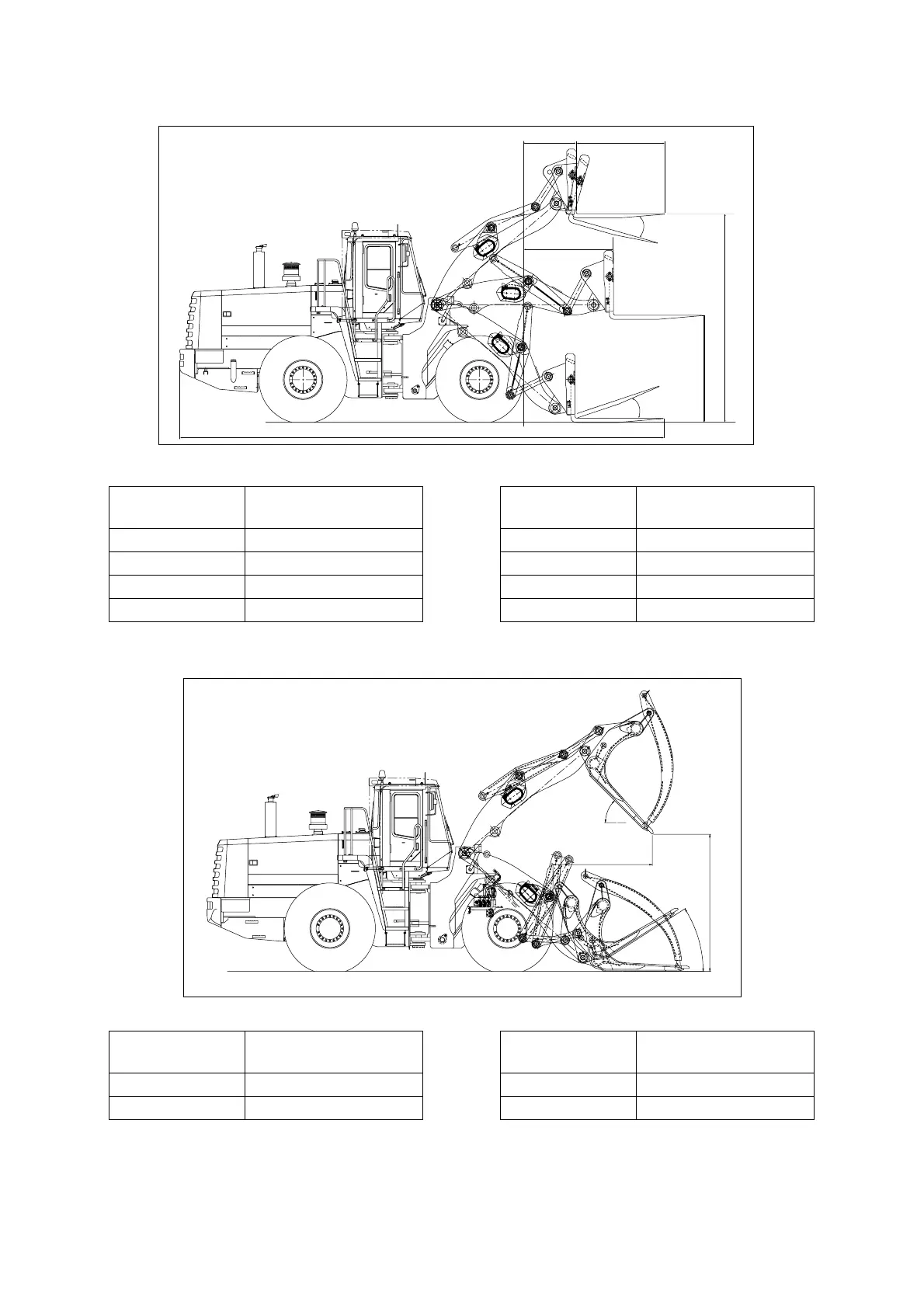

Figure 4 and Figure 5, illustrate working range when machine is equipped with optional Pallet or Log Fork.
AHS3690L
b
a
E
F
B
C
D
A
Figure 4
Reference
Number
Dimension
A 1,785 mm (5’ 10")
B 2,185 mm (7’ 2")
C 4,260 mm (13’ 12")
D 9,870 mm (32’ 5")
E 1,800 (5’ 11")
F 1,025 (3’ 4")
a 16°
b 22°
Reference
Number
Dimension
AHS3740L
B
b
A
a
Figure 5
Reference
Number
Dimension
A 2,016 mm (6’ 7")
B 2,785 mm (9’ 2")
a 45°
b 33°
Reference
Number
Dimension
